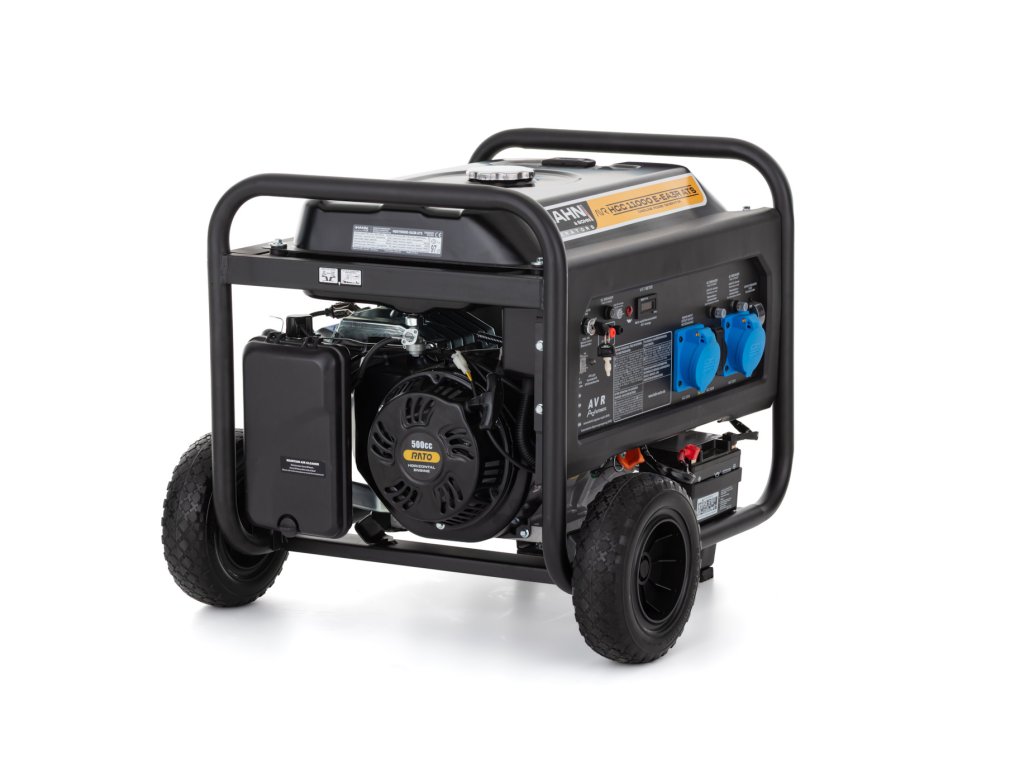

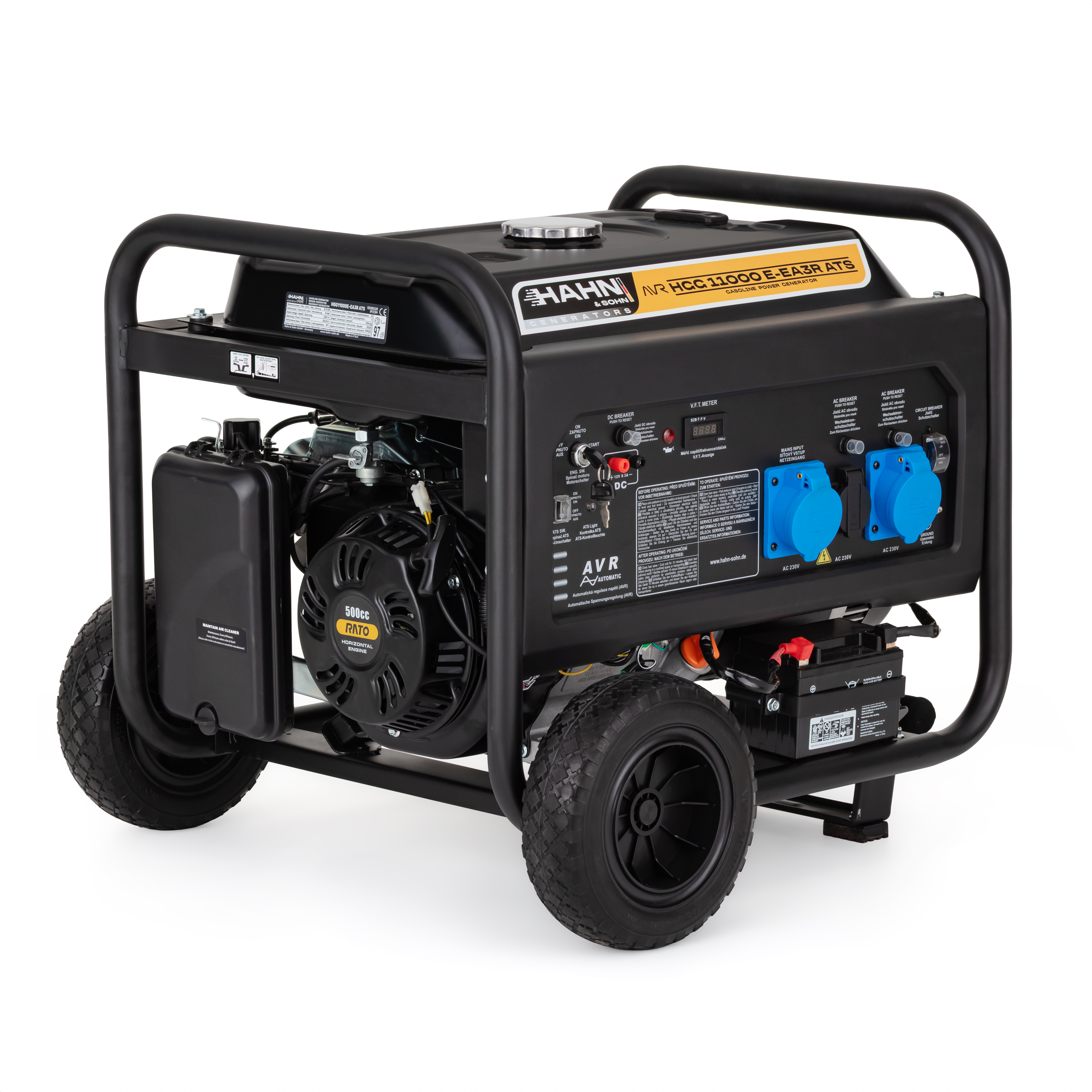

Hahn & Sohn HGG11000E-EA3R ATS gasoline generator 5-year warranty
Gasoline generator with a rated power of 8 kW, maximum power of 8.5 kW, voltage of 230 V, and a fuel tank capacity of 25 l. Equipped with an R500 engine featuring both electric and manual start and AVR voltage regulation.
The gasoline generator Hahn & Sohn HGG11000E-EA3R ATS is a powerful and reliable source of electricity suitable for construction, industry, and emergency home power supply.
- With a rated power output of 8 kW and a maximum output of 8.5 kW, it provides enough energy even for demanding appliances. It is equipped with a four-stroke gasoline engine R500 (displacement 500 cm³) with both manual and electric start.
- The generator features an automatic voltage regulator (AVR) that ensures a stable output and an oil warning system that protects the engine from damage. The fuel tank with a capacity of 25 L allows up to 7 hours of continuous operation at rated load.
- Thanks to its robust construction, large fuel filter, and the ability to connect to an ATS (Automatic Transfer Switch), this model is an ideal solution for safe and convenient operation.
Key Features
-
Rated Power: 8 kW
-
Maximum Power: 8.5 kW
-
Voltage: 230 V / 50 Hz
-
R500 Engine – 4-stroke, single-cylinder, OHV, air-cooled
-
Starting: manual + electric
-
Fuel Tank Capacity: 25 L
-
Fuel Consumption: ≤374 g/kWh
-
Operating Time: up to 7 h at rated load
-
Oil Capacity: 1 L
-
AVR Voltage Regulation
-
Oil Warning System – protects the engine when the oil level is low
-
Noise Level: 97 dB (Lwa)
Additional parameters
| Category: | Gasoline power generators |
|---|---|
| Warranty: | 5 years |
| Weight: | 104 kg |
| EAN: | 8594210231047 |
| Engine: | R500, gasoline, 4-stroke, OHV, single cylinder, air-cooled |
| Displacement: | 500 cm³ |
| Rated power: | 8 kW |
| Maximum power: | 8,5 kW |
| Fuel tank: | 25 l |
| Fuel consumption: | ≤374 g/kWh (approx. 3.0–3.5 l/h at 50% load) |
| Operating hours: | 7 h |
| Oil capacity: | 1 l |
| Output voltage: | 220 / 230 / 240 V |
| Frequency: | 50 Hz |
| Dimensions (L × W × H): | 697 × 554 × 549 mm |
| Noise level: | 97 dB (Lwa) |
