    Hahn & Sohn HDE19STA3 Diesel Generator

    Not rated
    Brand: Hahn & Sohn

    Rated power: 16,2 kVA / 13 kW
    Output voltage: 400/230 V
    Fuel consumption at 50% load: 1,9–2,0 l/h
    Weight (net): 630 kg

    Availability In stock (5 pcs)
    Code: 20318
    €7 178,56 €5 932,69 excl. VAT
    Hahn & Sohn HDE19STA3 Diesel Generator
    Not rated
    Brand: Hahn & Sohn
    20318 4 dieselovy generator hahn sohn hde19sta3

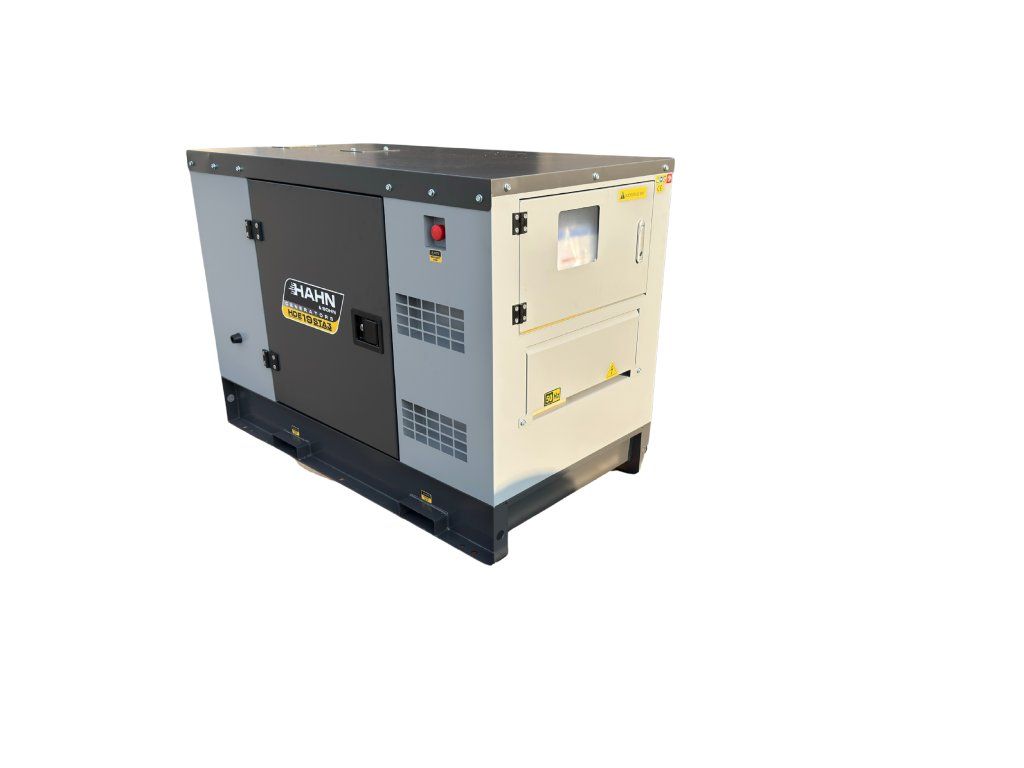

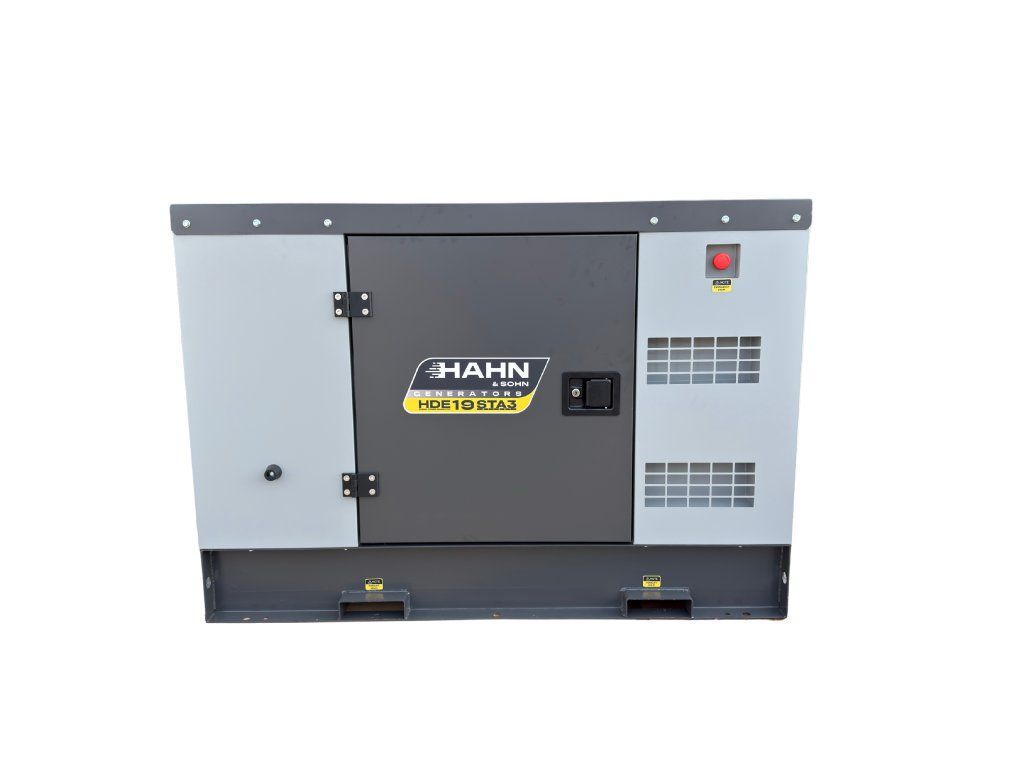

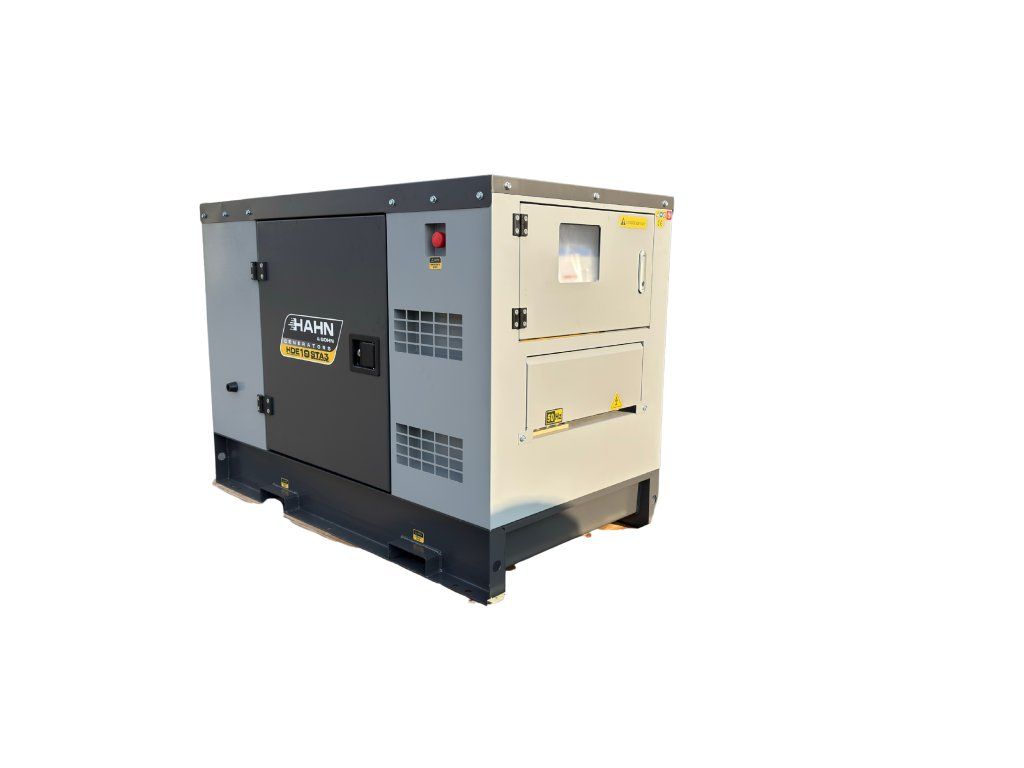

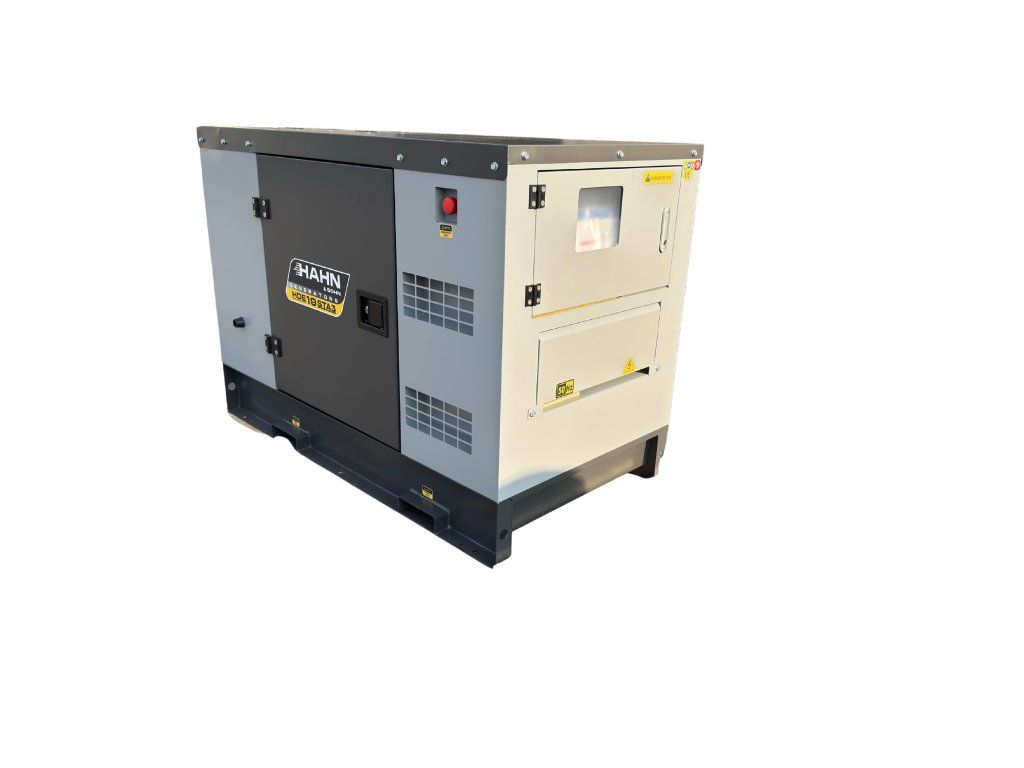

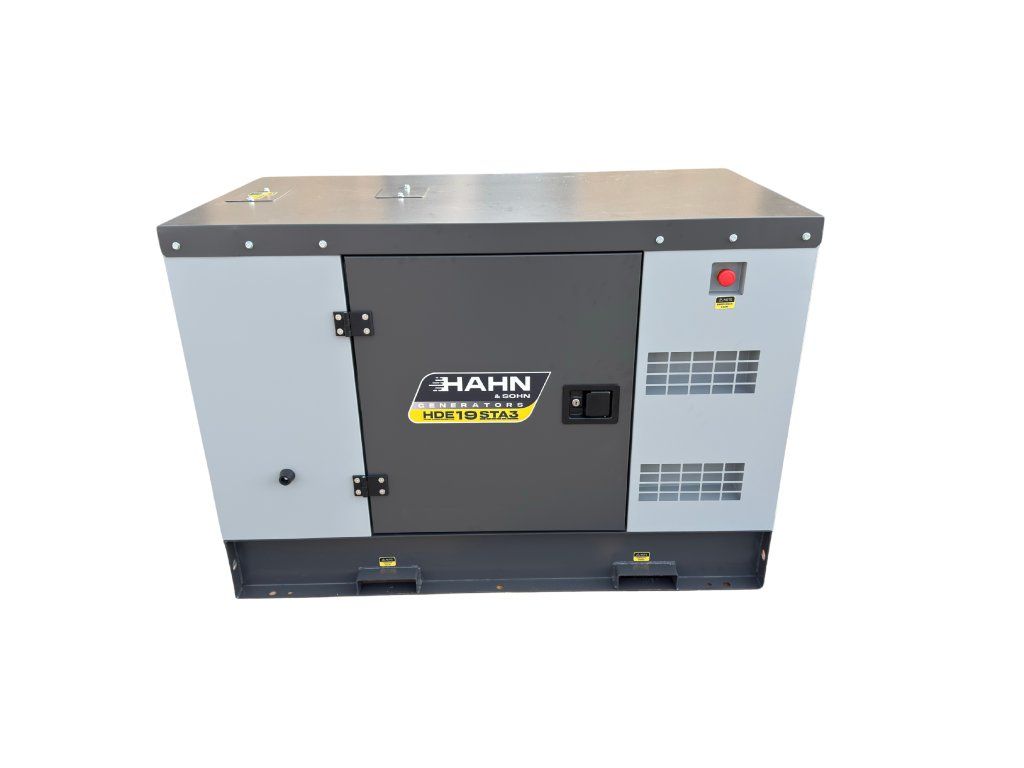

    Hahn & Sohn HDE19STA3 is a reliable diesel generator designed for situations where a dependable power supply is essential. Thanks to its three-phase design, it can power both standard appliances and more demanding equipment.

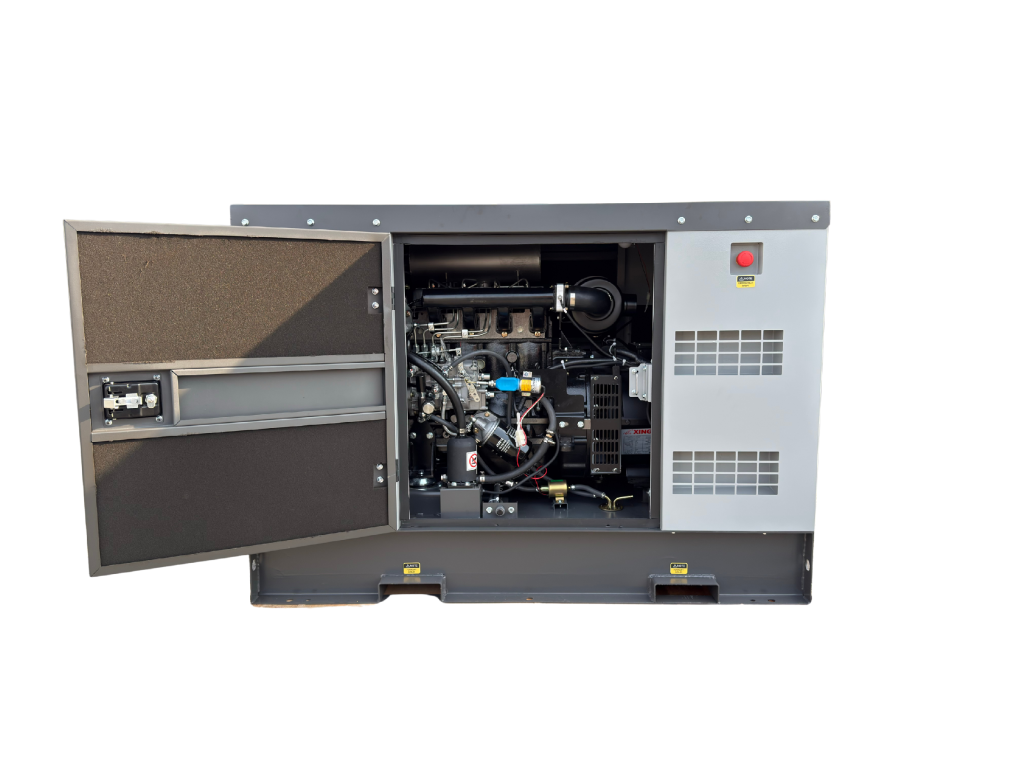

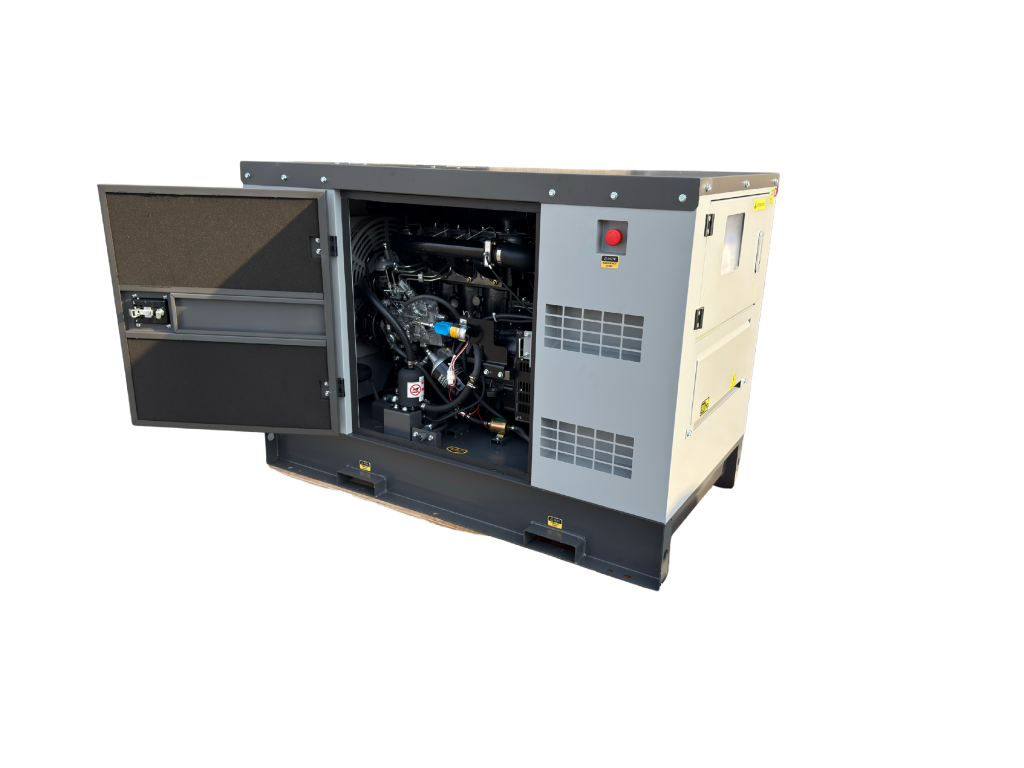

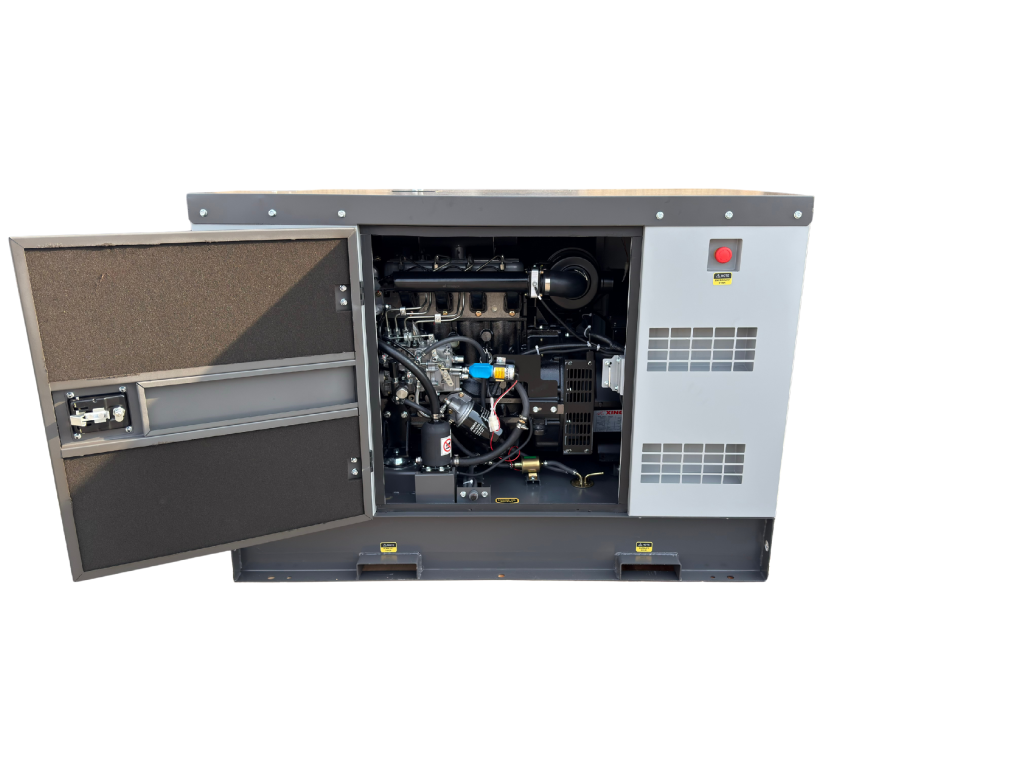

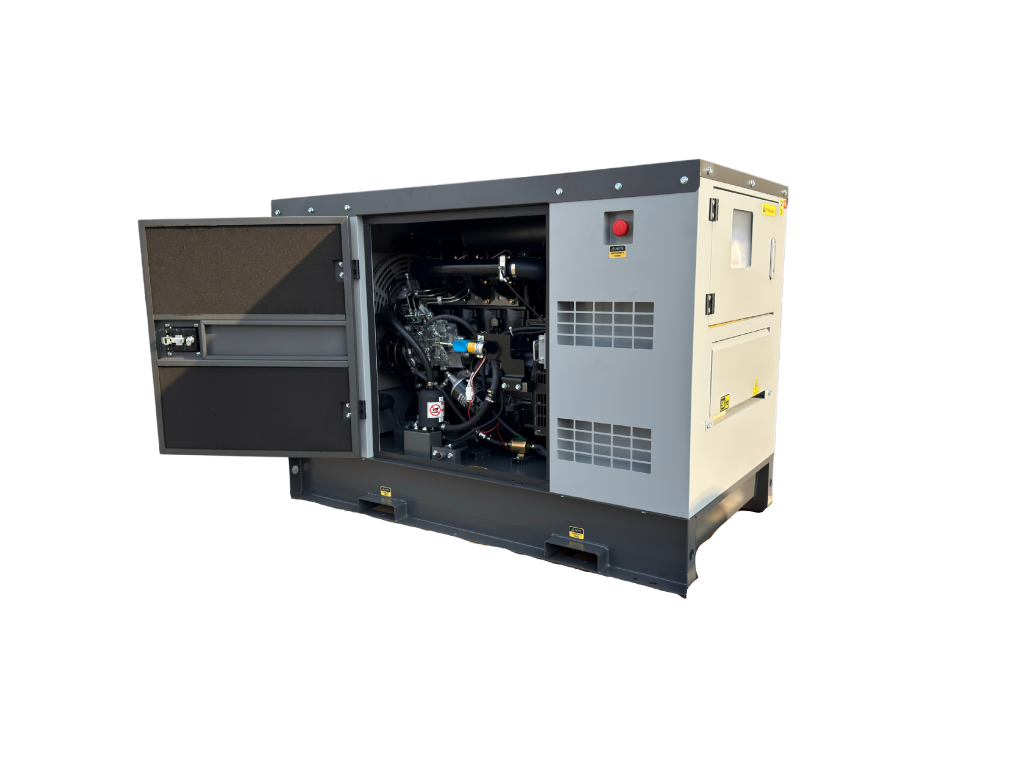

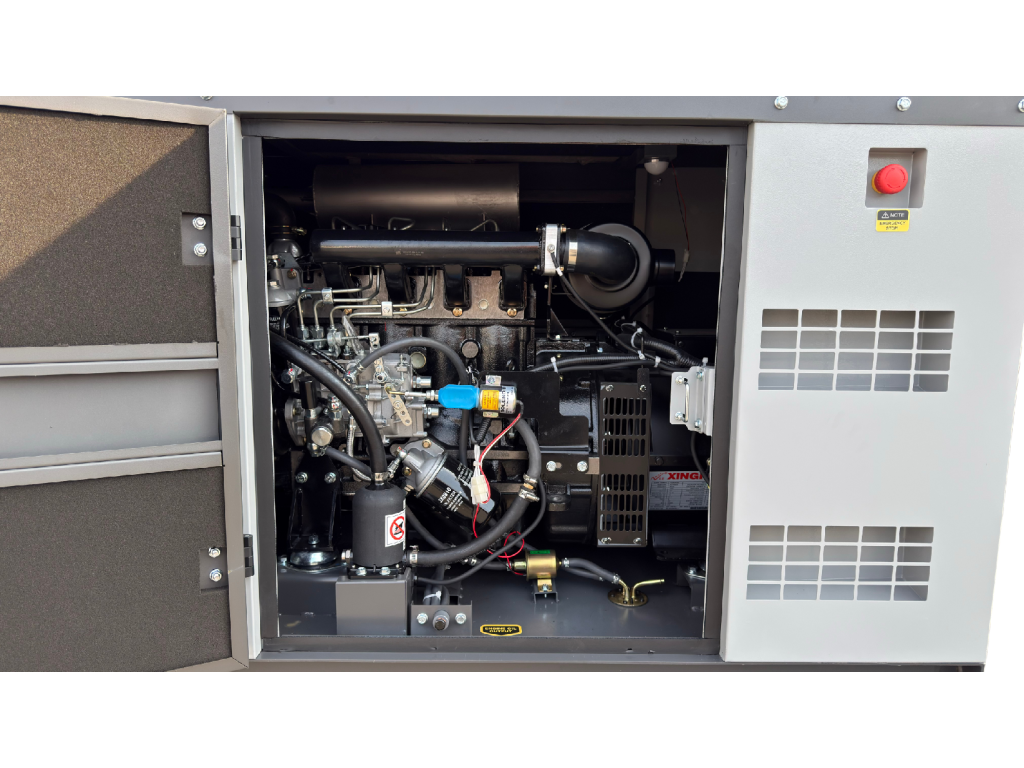

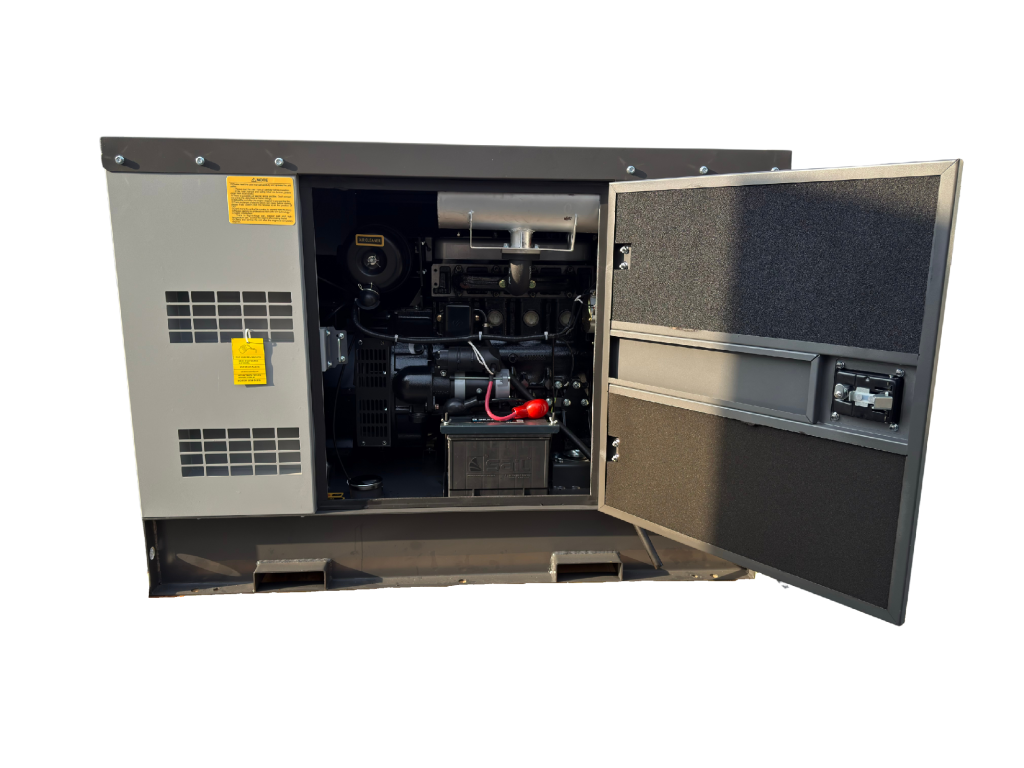

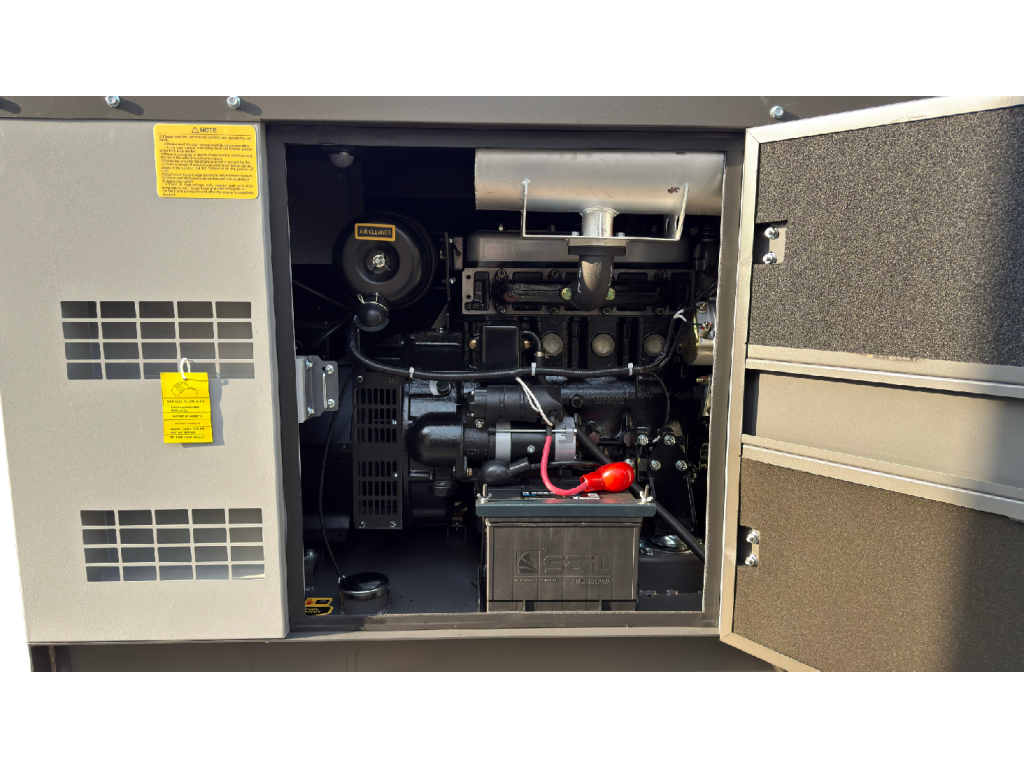

    • The heart of the generator is a 4-cylinder YANGDONG engine, which is water-cooled and built for stable long-term operation. Combined with a brushless alternator and AVR regulation, it ensures consistent voltage suitable even for more sensitive devices.

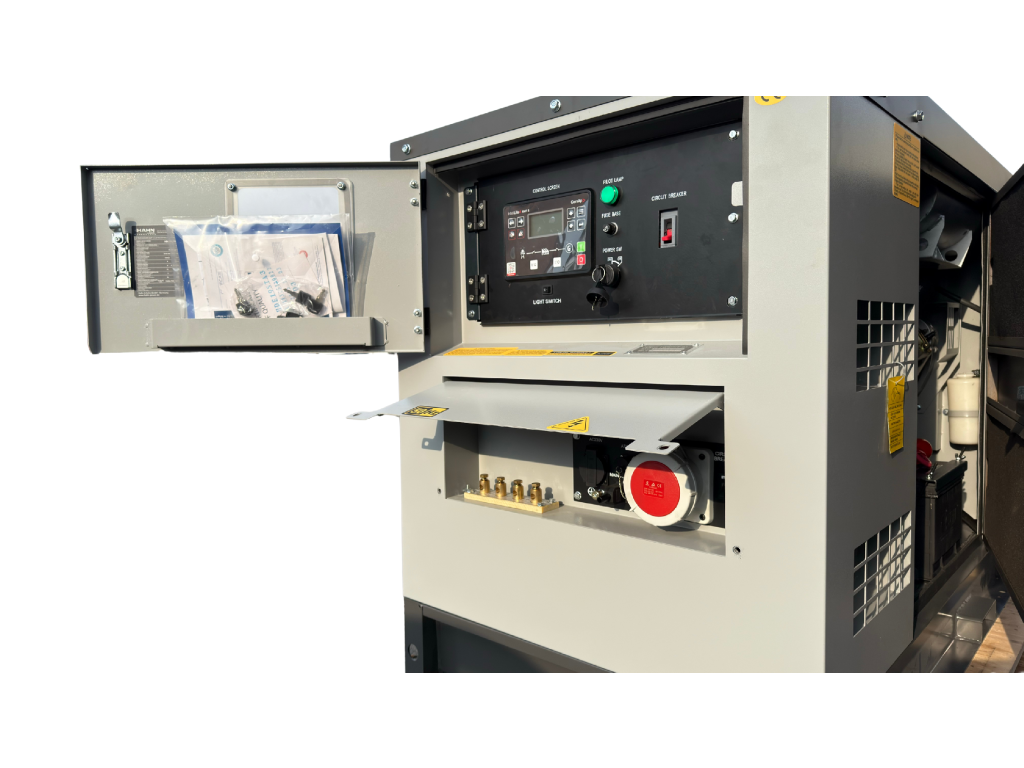

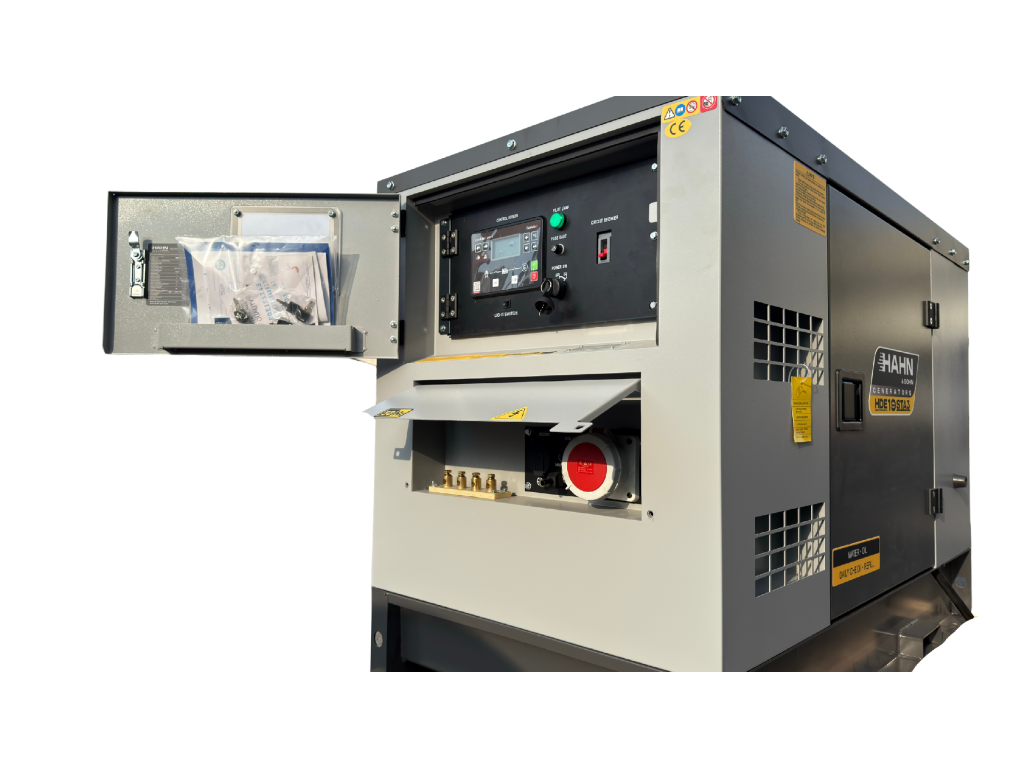

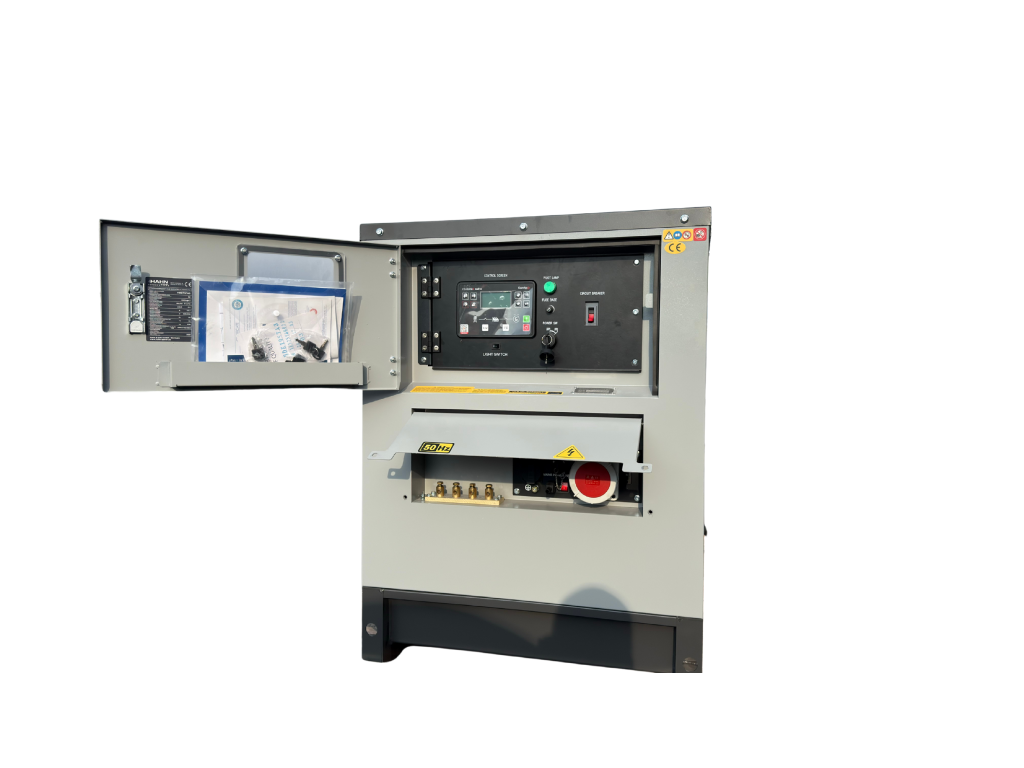

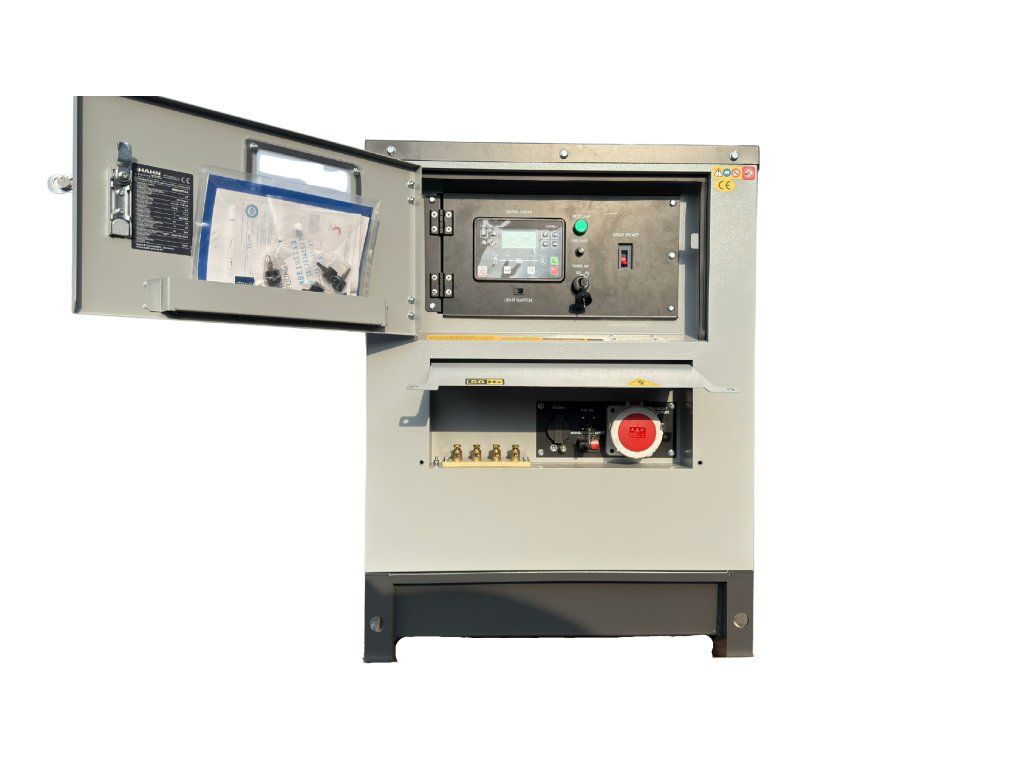

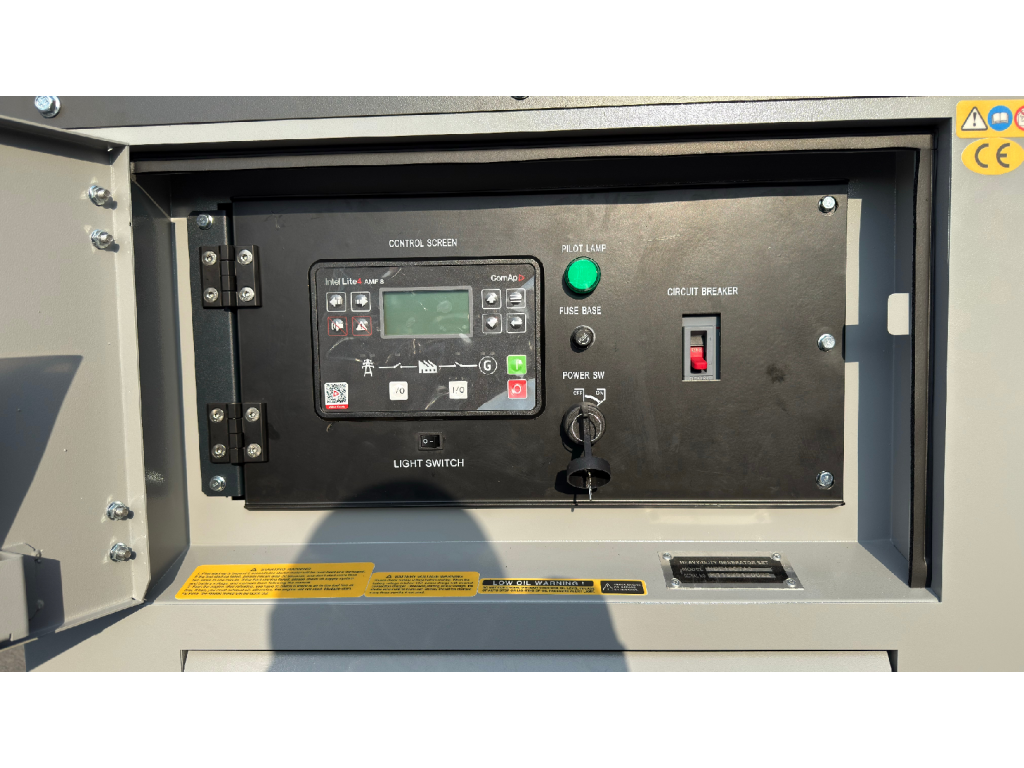

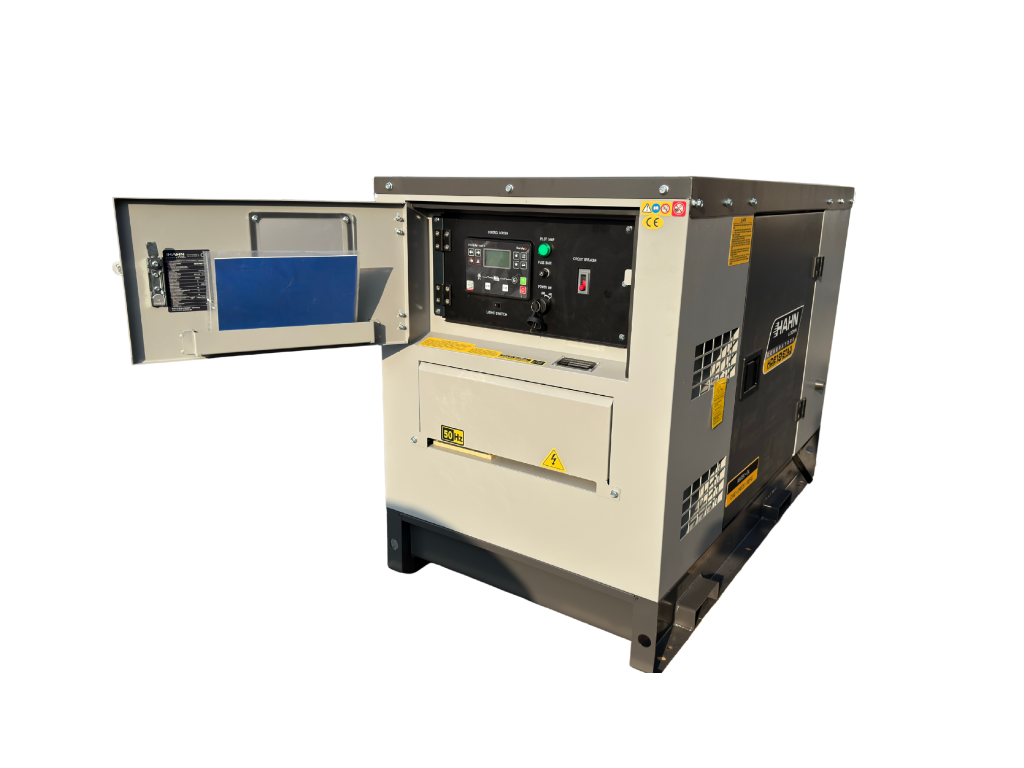

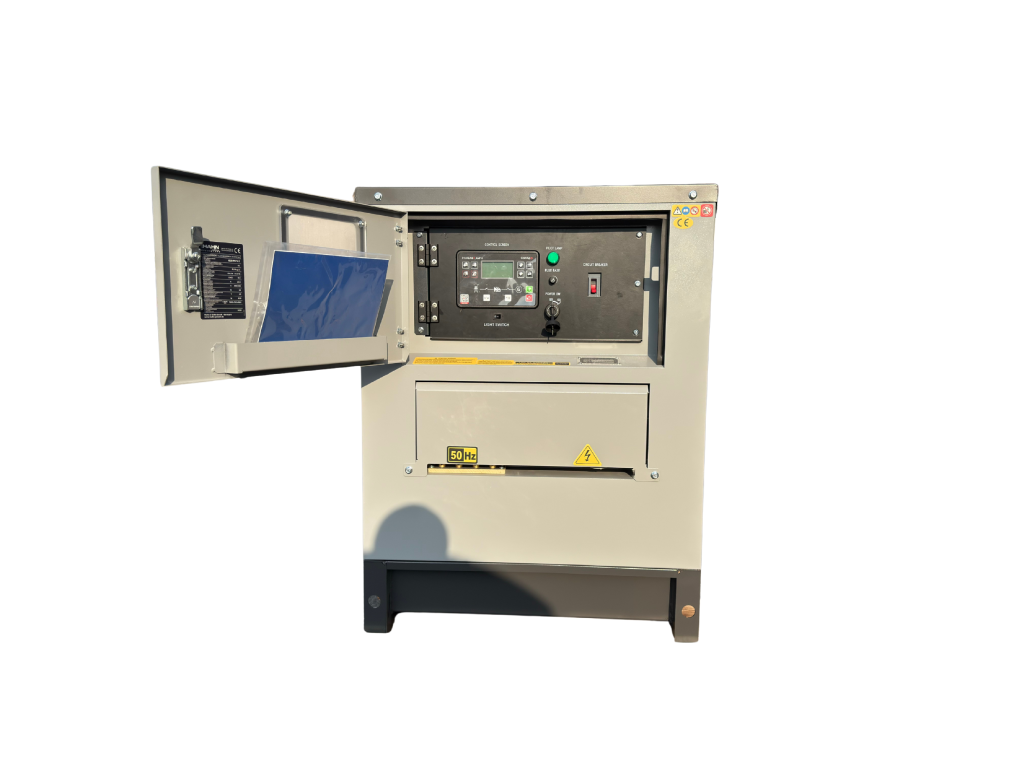

    • Operation is managed via a Smartgen digital control panel, allowing easy monitoring of operating values and safe operation. The generator is ready for use as a backup power source and can be integrated into a system with automatic transfer switching.

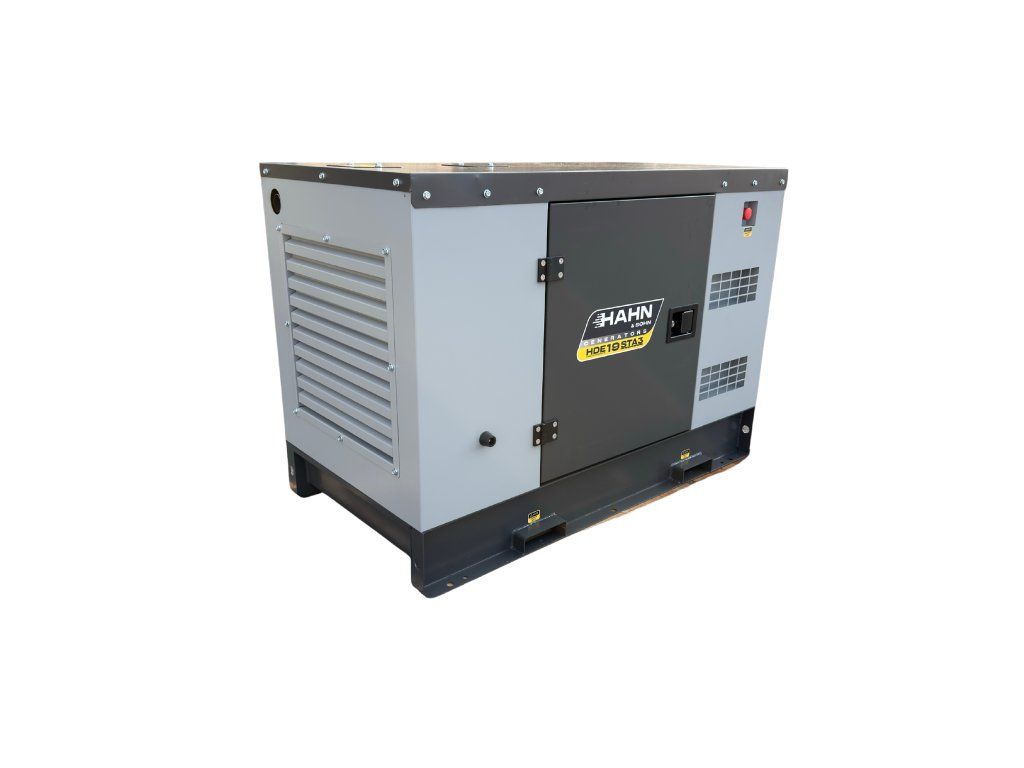

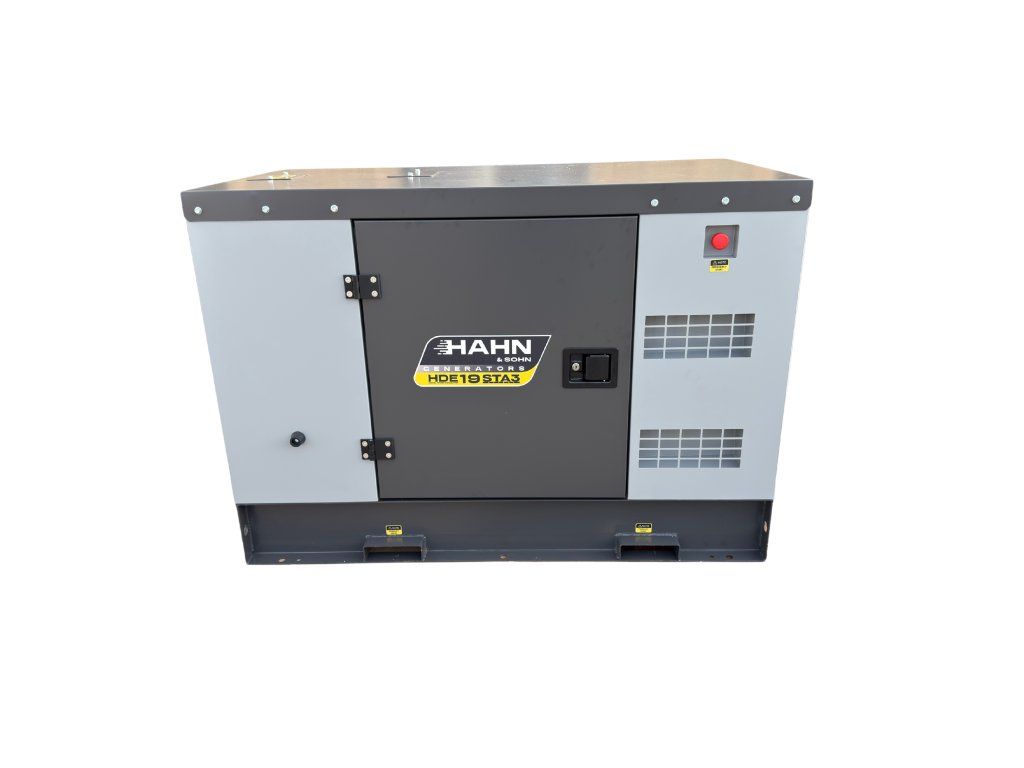

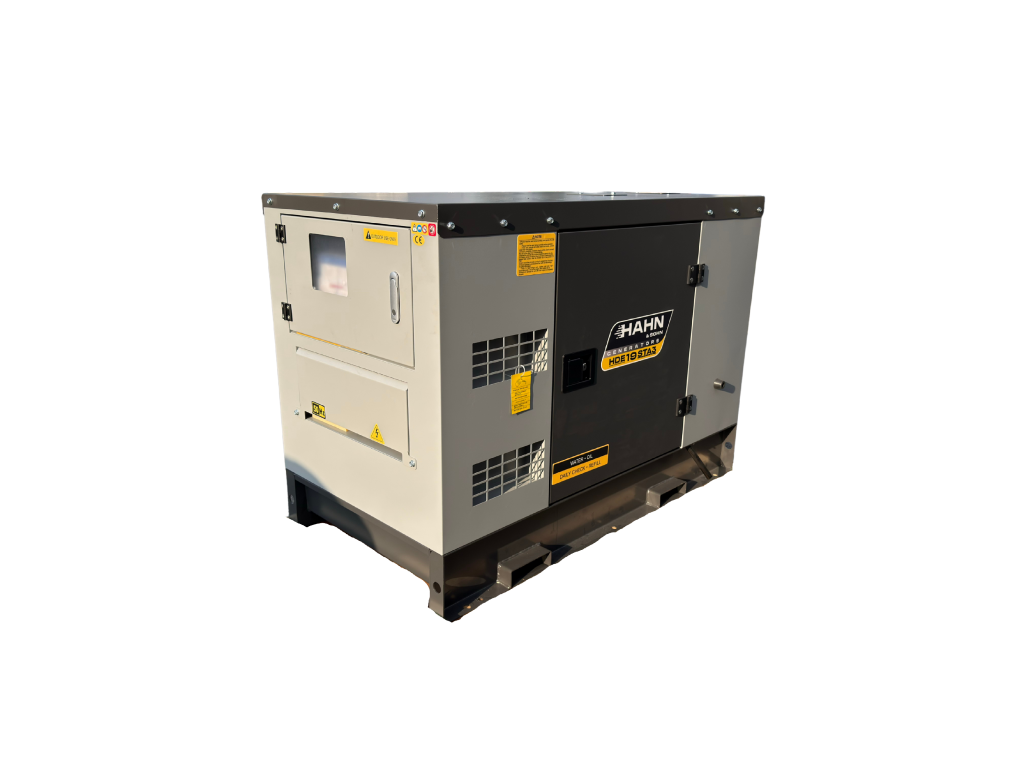

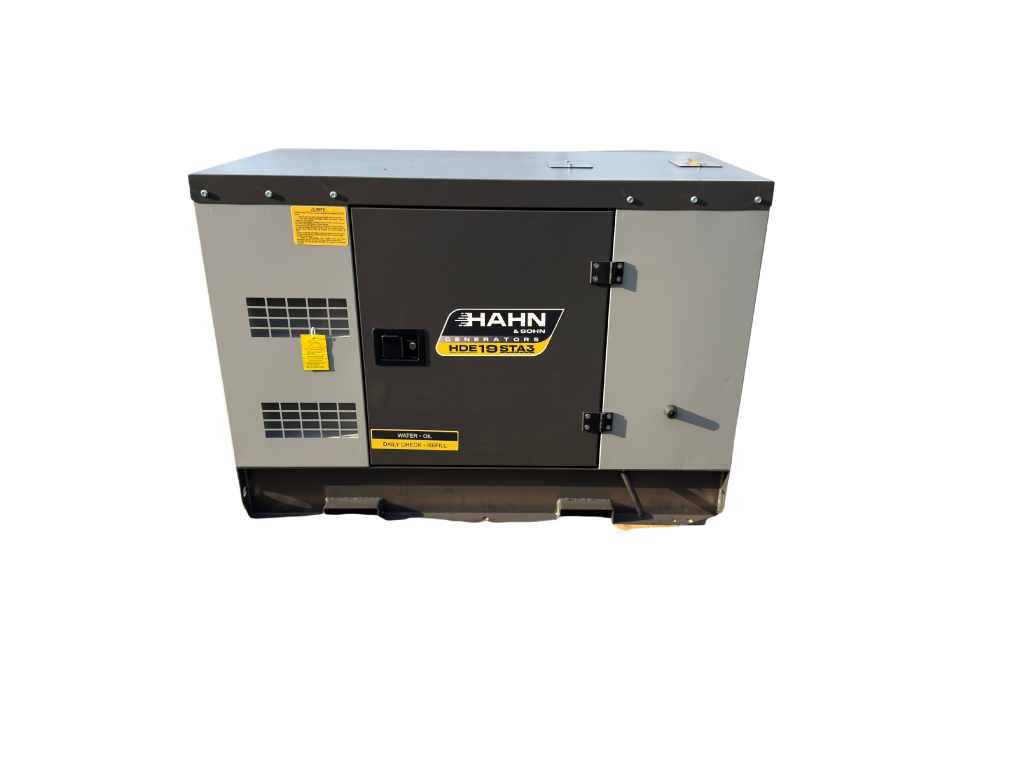

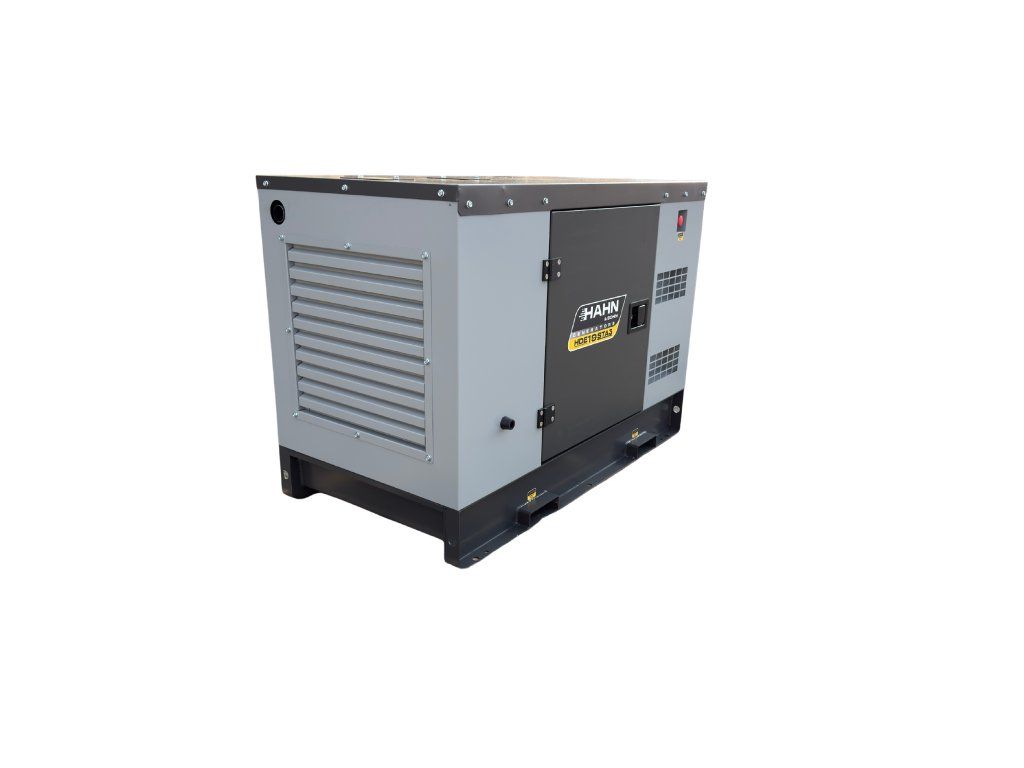

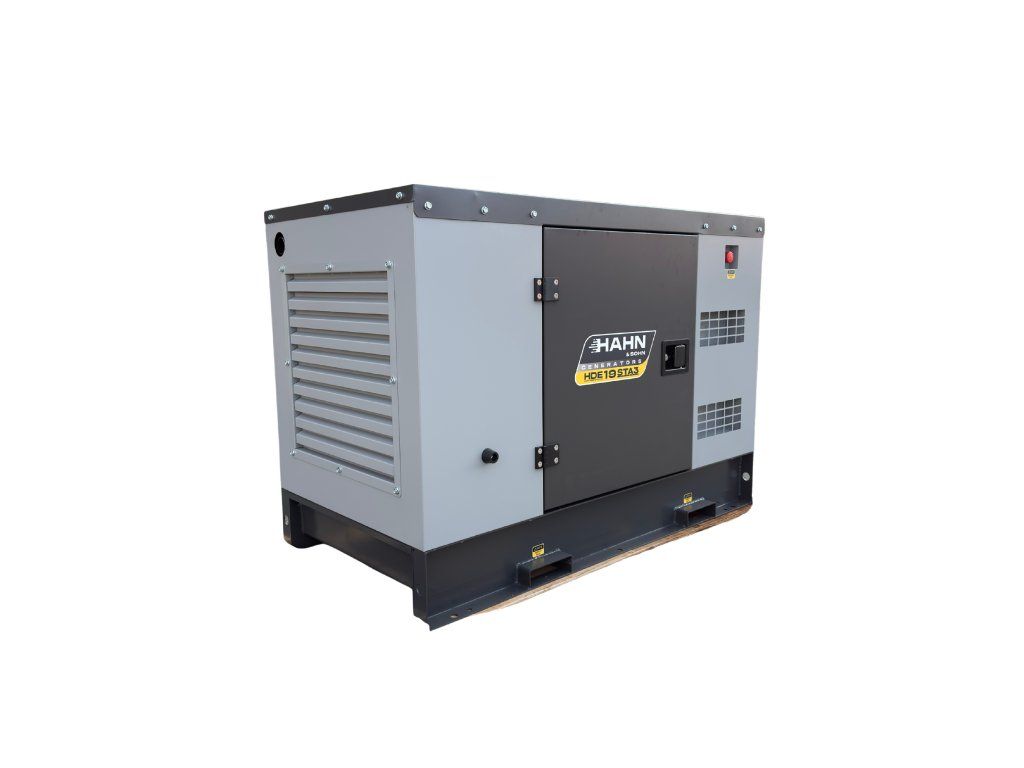

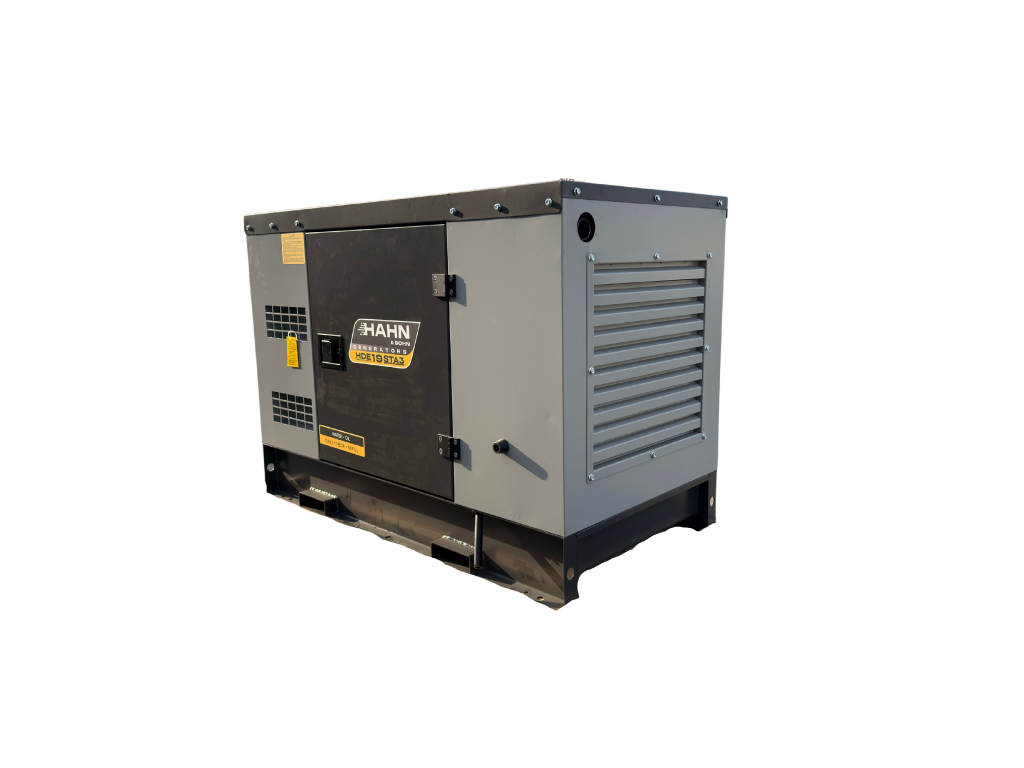

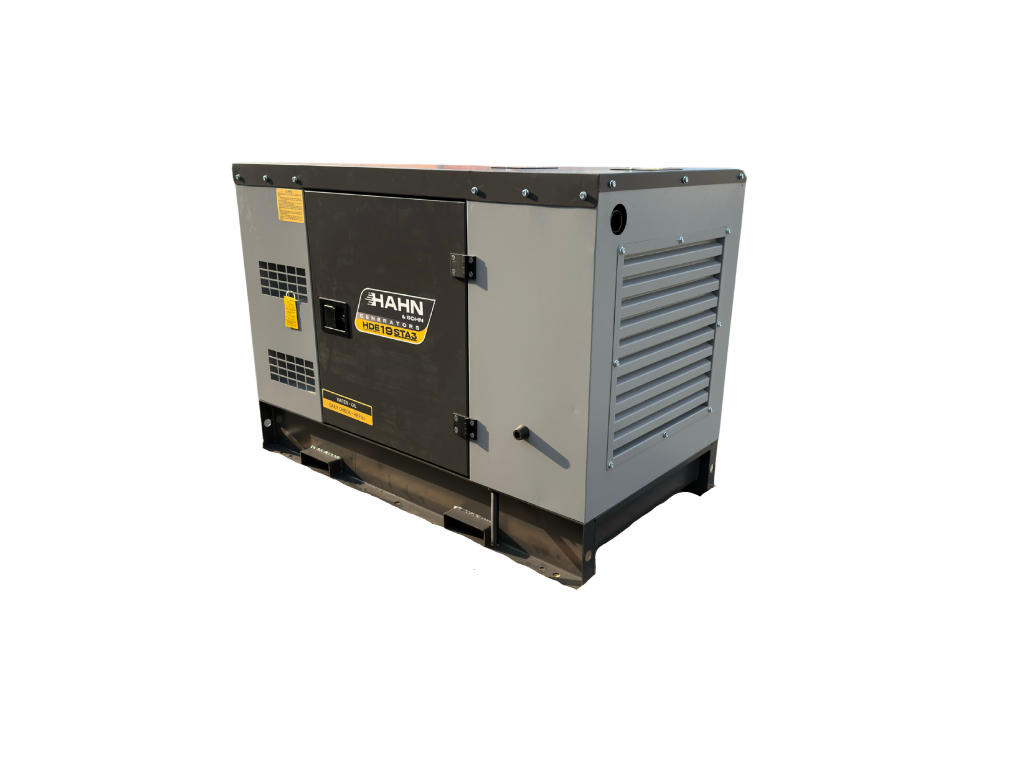

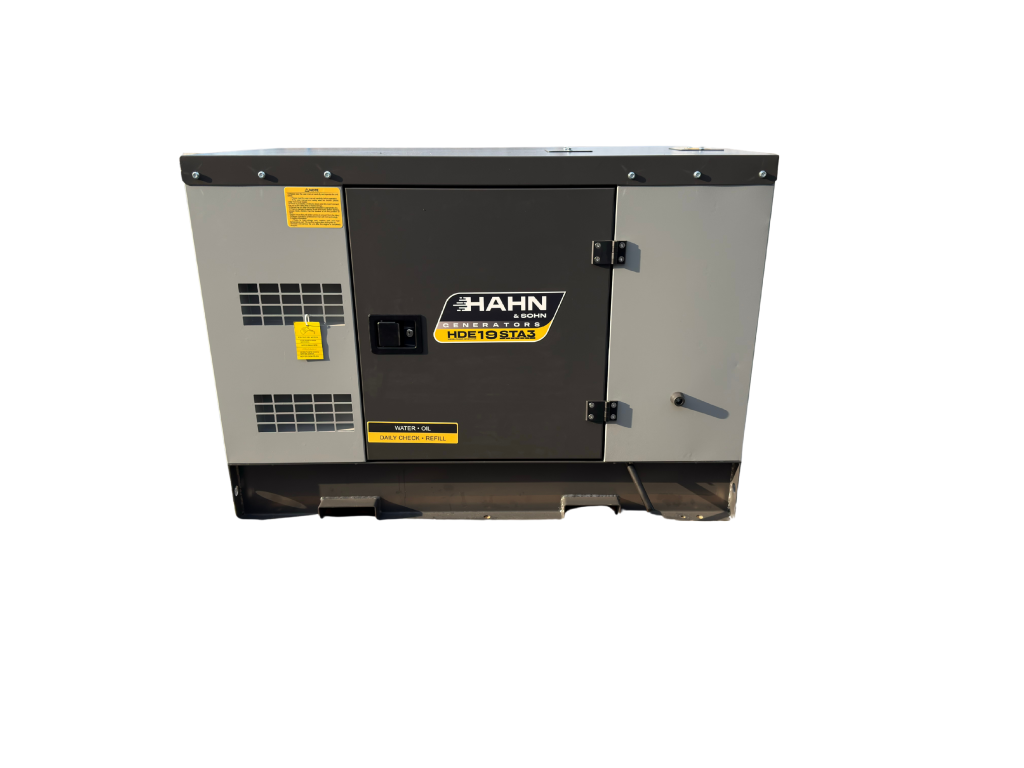

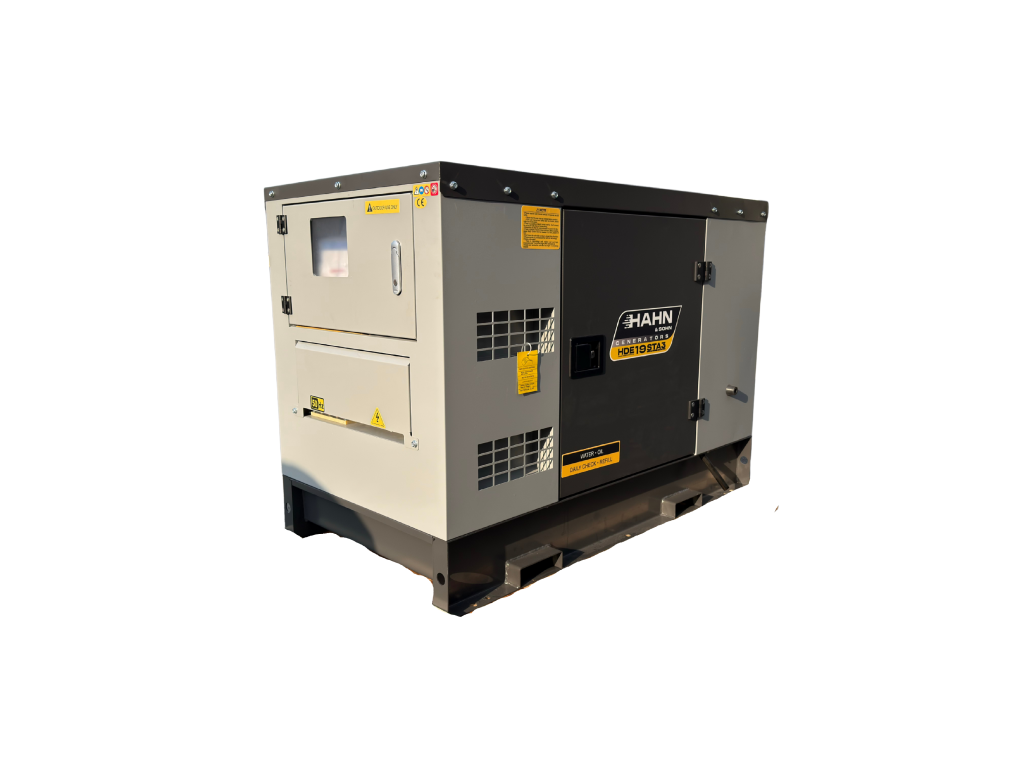

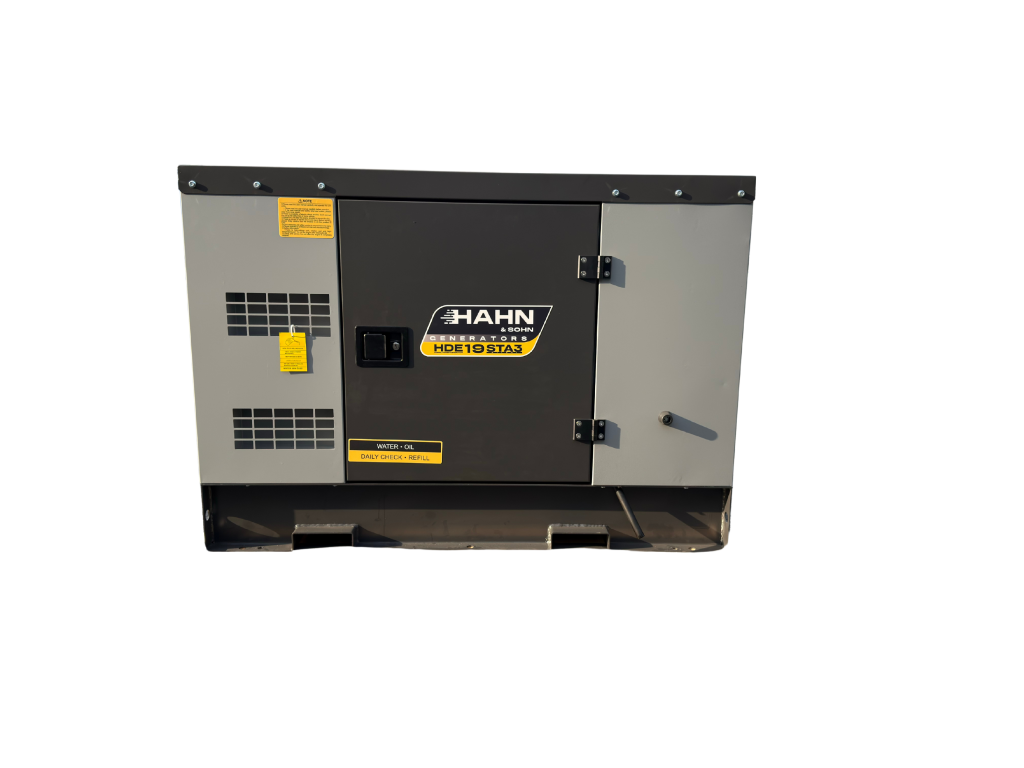

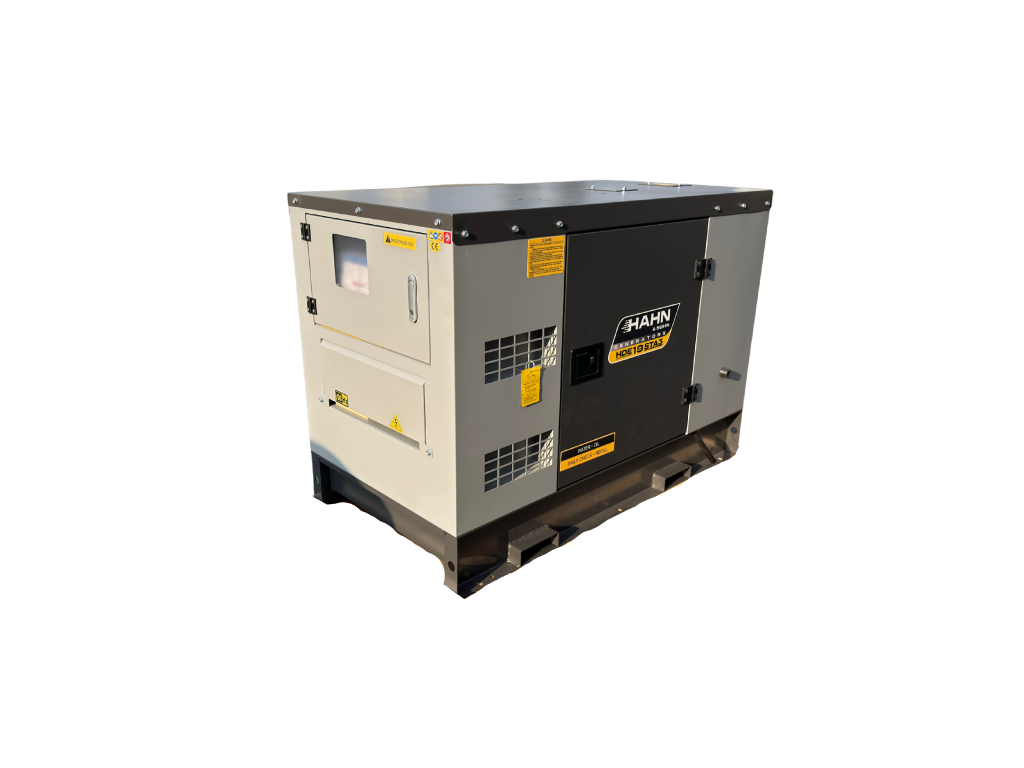

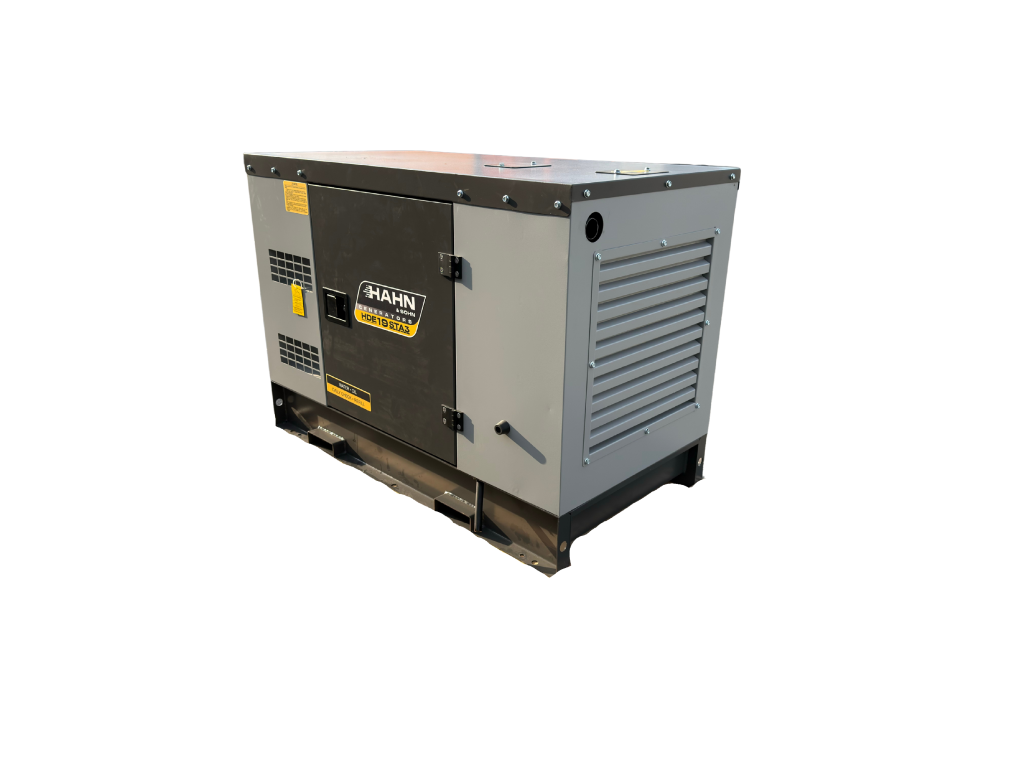

    • The soundproof enclosure with a closed canopy helps reduce noise while protecting internal components from external influences, increasing the overall lifespan of the unit.

    WHY CUSTOMERS CHOOSE IT

    • Three-phase output 400/230 V for versatile use
    • Stable output 16.2 kVA suitable for higher loads
    • Reliable 4-cylinder YANGDONG diesel engine
    • Easy operation thanks to the Smartgen panel
    • Soundproof design for more comfortable operation
    • Suitable as a backup power source for buildings

    PRACTICAL TIP

    If you plan to use the generator as a backup power source for a building, it is worth connecting it with an ATS (automatic transfer switch) – the generator will then start automatically in case of a power outage.

    KEY FEATURES

    • Rated power: 16.2 kVA / 13 kW
    • Maximum power: 17.5 kVA / 14 kW
    • Voltage: 400/230 V (three-phase)
    • Frequency: 50 Hz
    • Digital control unit Smartgen
    • Alternator: brushless with AVR
    • Engine: YANGDONG YND485D
    • Engine design: 4-cylinder, water-cooled
    • Electric start 12 V
    • Fuel: diesel

    USAGE / INSTALLATION / OPERATION

    • Place the generator on a flat and solid surface
    • Connect to appliances or building wiring
    • Start using the electric starter
    • Monitor operation via the Smartgen panel
    • Regularly check oil and fuel for long-term operation

    Additional parameters

    Category: Industrial power generators
    Warranty: 2 years
    Weight: 630 kg
    EAN: 8594210231894
    Frequency: 50 Hz
    Rated power: 16,2 kVA / 13 kW
    Maximum power: 17,5 kVA / 14 kW
    Voltage: 400/230 V
    Rated current: 23,5 A
    RPM: 1,500 rpm
    Power factor: 0,8
    Generator type: three-phase, brushless (AVR)
    Engine: YANGDONG YND485D
    Engine type: 4-cylinder, inline, 4-stroke, water-cooled
    Displacement: 2,156 l
    Compression ratio: 18:1
    Engine power: 17 kW
    Starting: 12-volt electric starter
    Starter motor: 12 V / 3 kW
    Fuel consumption: approx. 247 g/kWh
    Fuel: diesel fuel (0°, -10°, -35° depending on temperature)
    Lubrication type: pressure
    Recommended oil: SAE 10W-30 / 15W-40
    Noise level (7 m): approx. 70–80 dB
    Tank capacity: 68 l
    Dimensions: 1500 × 790 × 1050 mm
