Piston ring set – Hahn & Sohn HDE20SS3-DW
Piston ring set – Hahn & Sohn HDE20SS3-DW
Piston ring set for one piston of the WEICHAI WP2.3D25E200 engine used in the Hahn & Sohn HDE20SS3-DW diesel generator. Ensures proper sealing of the combustion chamber and correct lubrication of the cylinder wall
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Piston ring set for one piston of the WEICHAI WP2.3D25E200 engine used in the Hahn & Sohn HDE20SS3-DW diesel generator. Ensures proper sealing of the combustion chamber and correct lubrication of the cylinderwall.
The piston rings sit in grooves around the circumference of the piston and have two key functions — they seal the combustion chamber against combustion gases escaping into the crankcase (compression rings) and ensure proper distribution and scraping of oilfrom the cylinder wall (oil control ring). Worn piston rings result in loss of compression, increased oil consumption, and blue smokefromthe exhaust.

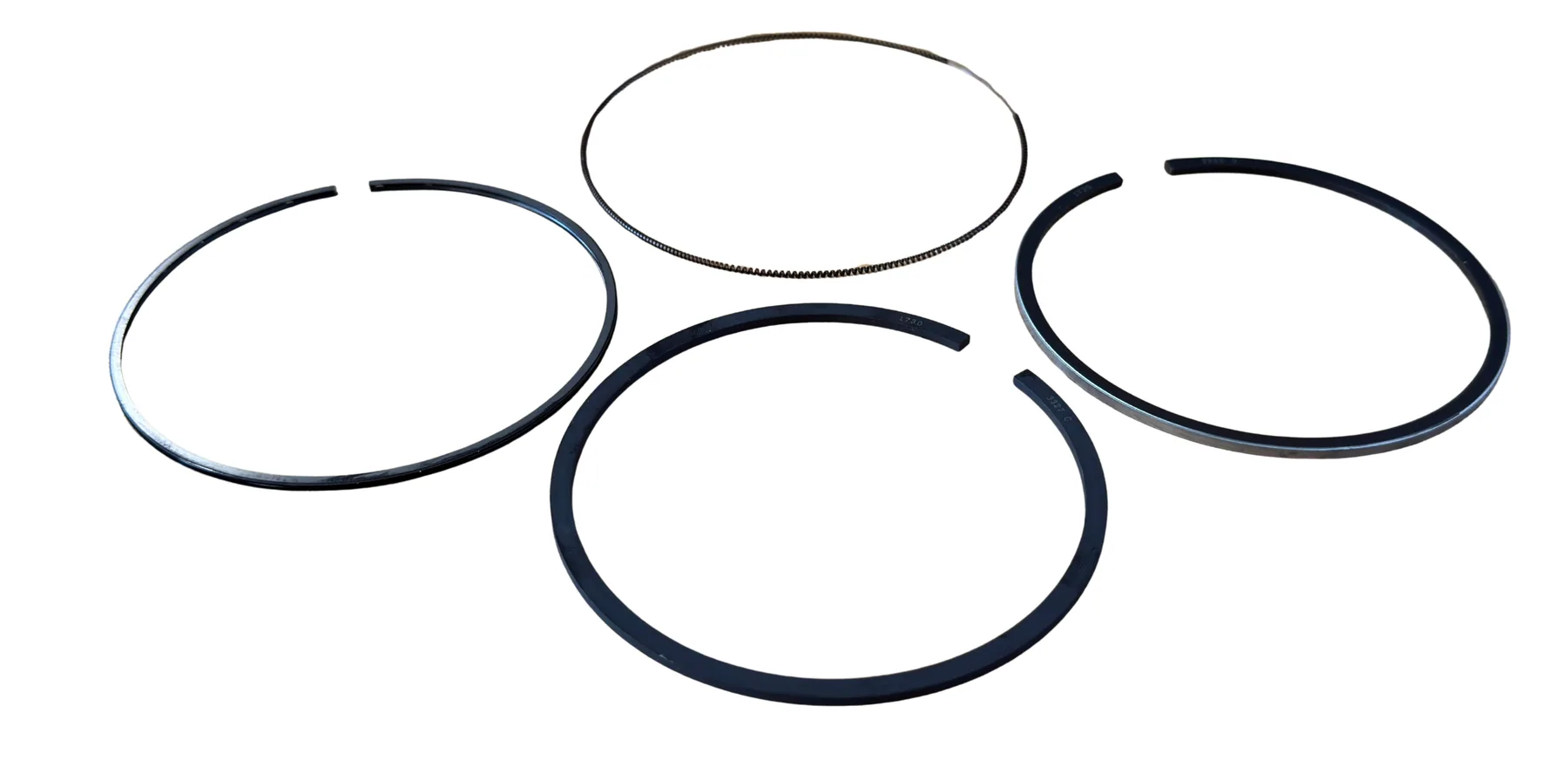

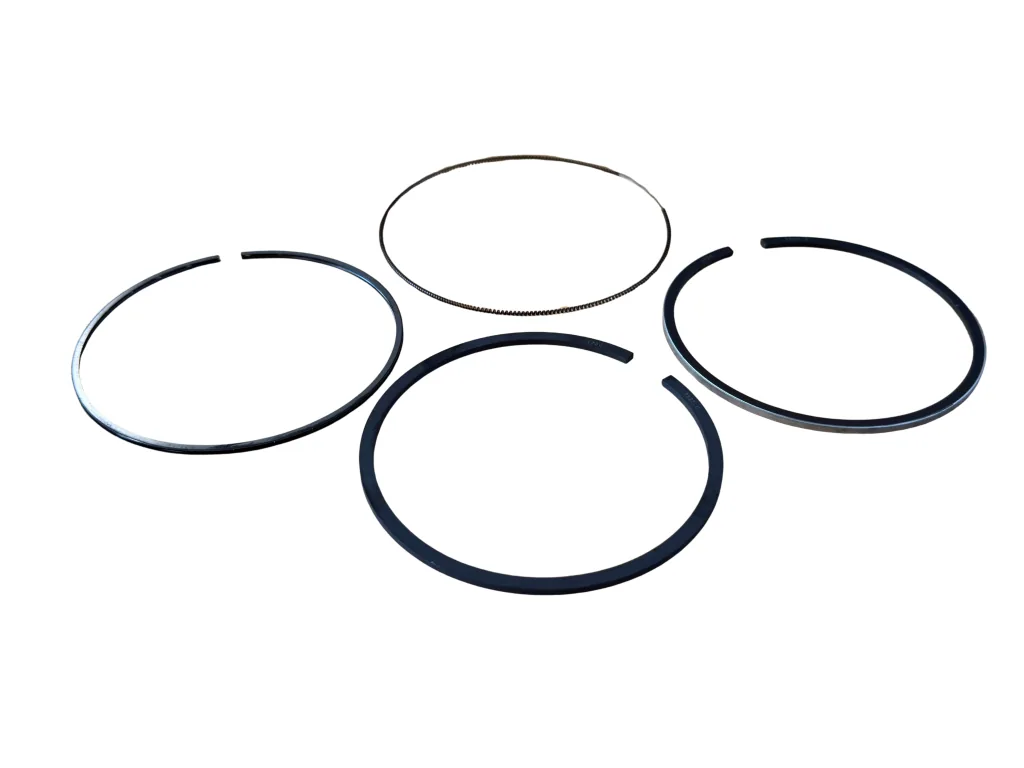

- The set contains rings for one piston of theWEICHAI WP2.3D25E200engine (Hahn & Sohn HDE20SS3-DW generator, 20 kW / 25 kVA) — two compression rings and one oil control ring (consisting of a rail and a corrugated expander).
- During a complete engine overhaul, the piston rings are always replaced on all pistons at the same time, taking into account the condition of the cylinderbores.
WHY CUSTOMERSCHOOSE IT
- Exact match for the WEICHAI WP2.3D25E200 engine
- Complete set for one piston— compression and oil control rings in one package
- Essential part for a complete engine overhaul
PRACTICALTIP
Before installing new rings, always check that the stamped markings on the rings are facing upwards (towards the cylinder head) — installing a compression ring upside down will cause increased oil consumption and rapid wear. At the same time, measurethe ring end gap in the cylinder using a feeler gauge before fitting itontothe piston.
KEY FEATURES
- Type: piston ring set for one piston

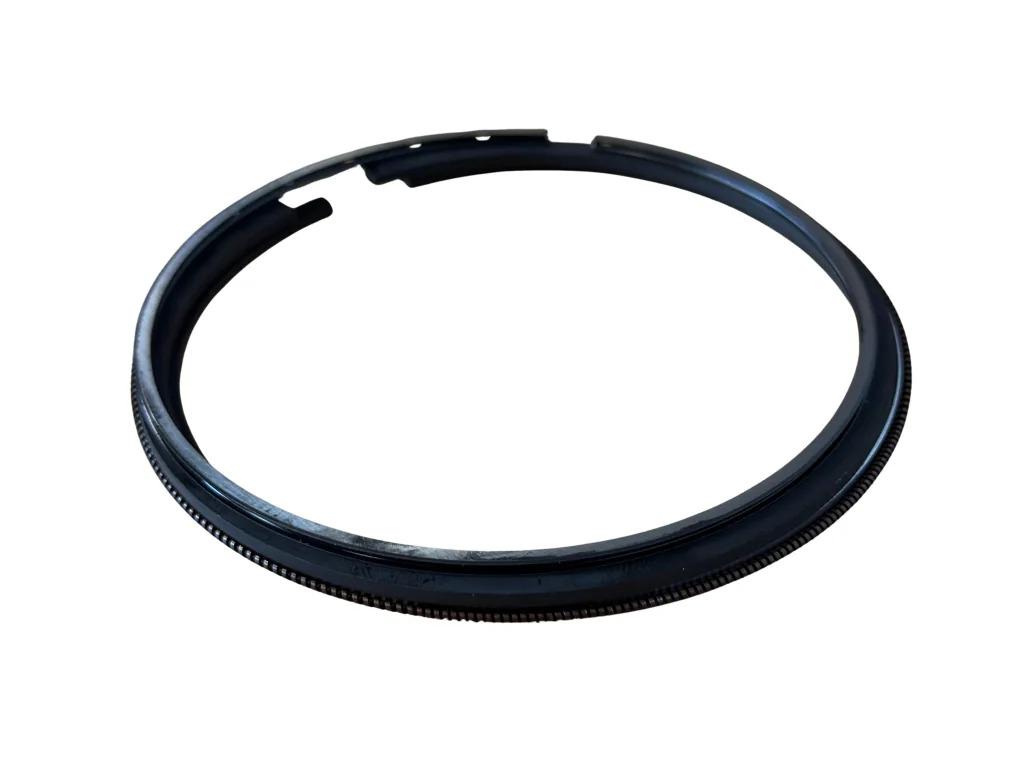

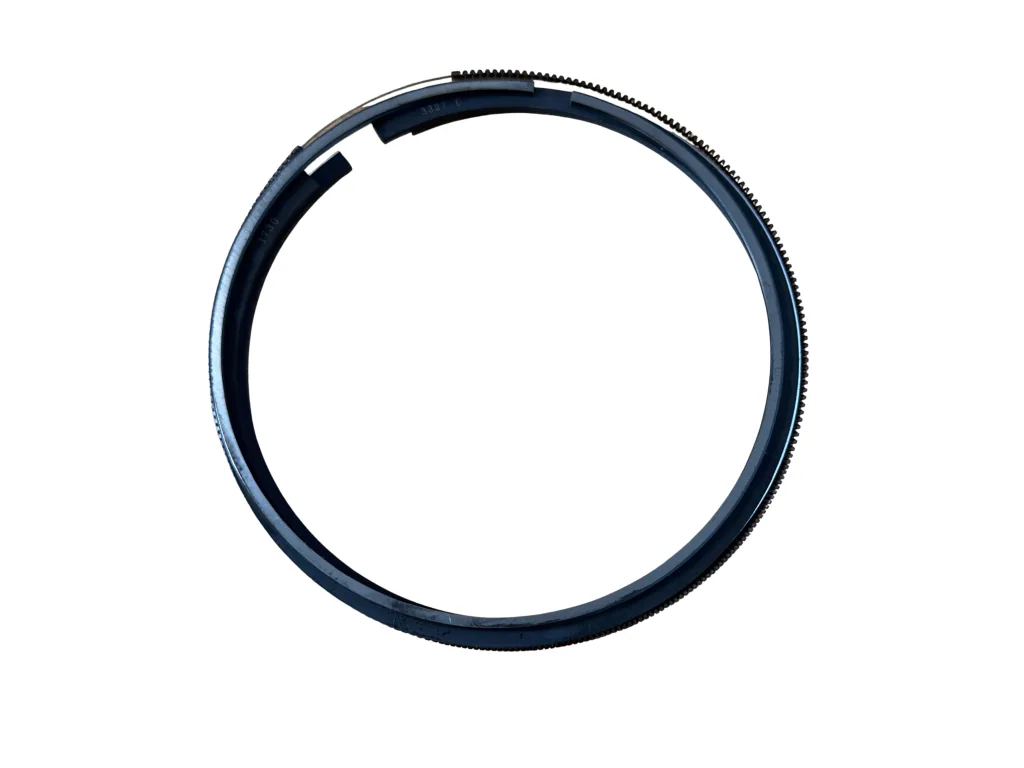

- Includes: 2 compression rings + oil control ring (rail + corrugated expander)
- Designed for engine: WEICHAI WP2.3D25E200
- Compatible generator: Hahn &SohnHDE20SS3-DW(20kW/25kVA)
USE / INSTALLATION/OPERATION
- Remove the piston according to the service procedure.
- Remove the old rings from the piston grooves — beware of sharp edges and use suitable piston ring pliers.
- Before fitting the new rings, check the end gap of each ring in the corresponding cylinder using a feeler gauge.
- Fit the rings onto the piston in the specified order (from the lower groove to the upper groove), observing the markings and orientation.
- Position the gaps of the individual rings evenly around the circumference of the piston (not in a single line).
Installation requires experience with complete engine overhauls and suitable tools (piston ring pliers, feeler gauge).
Additional parameters
Technical parameters
| Category | Other |
| Weight | 0.06 kg |
| Part type | Piston ring set (1 piston) |
| Contents of the set | 2 compression rings + oil ring (rail + expander) |
| Designed for the engine | WEICHAI WP2.3D25E200 |
| Compatible machine | Hahn & Sohn HDE20SS3-DW (20 kW / 25 kVA) |
