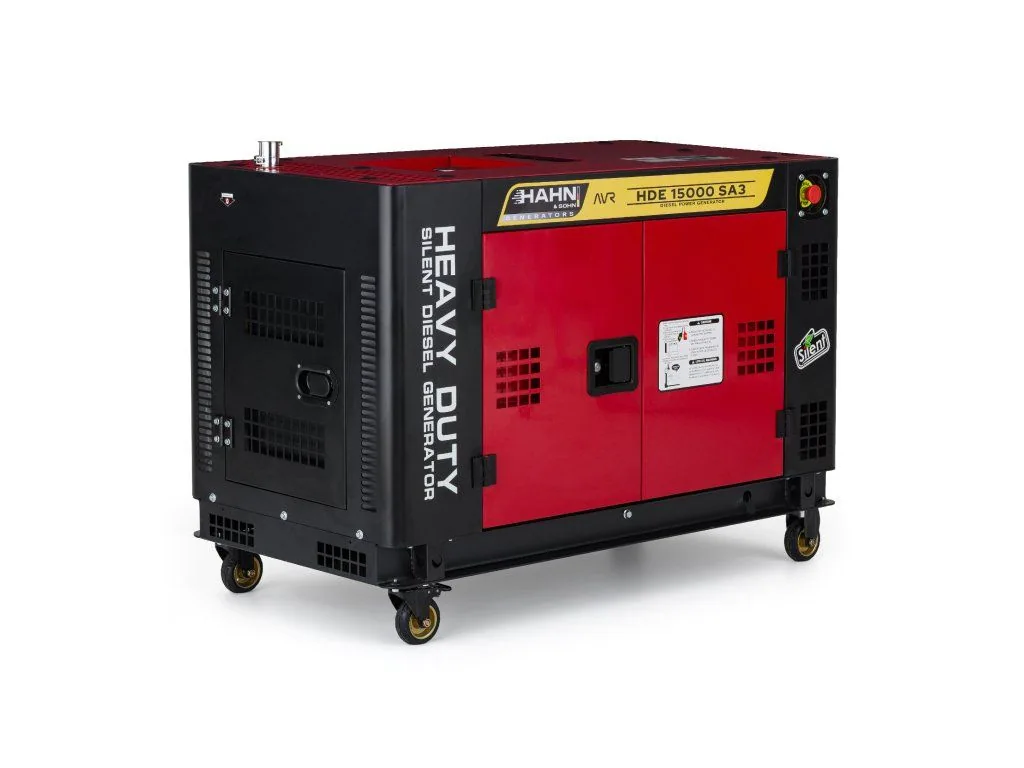

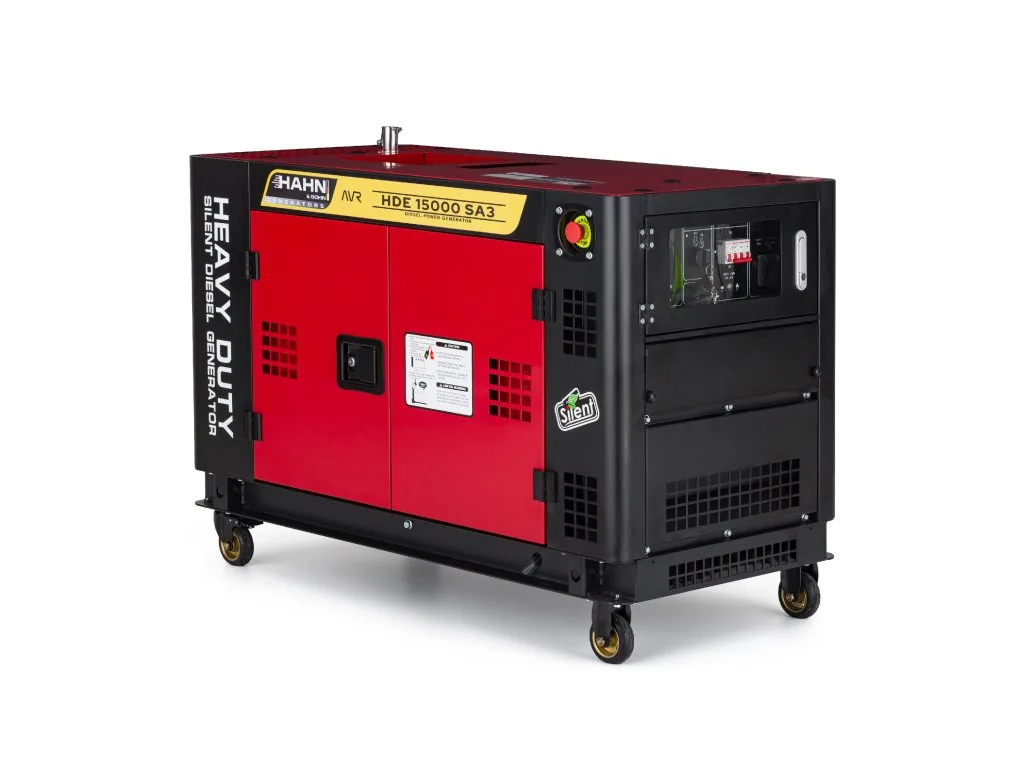

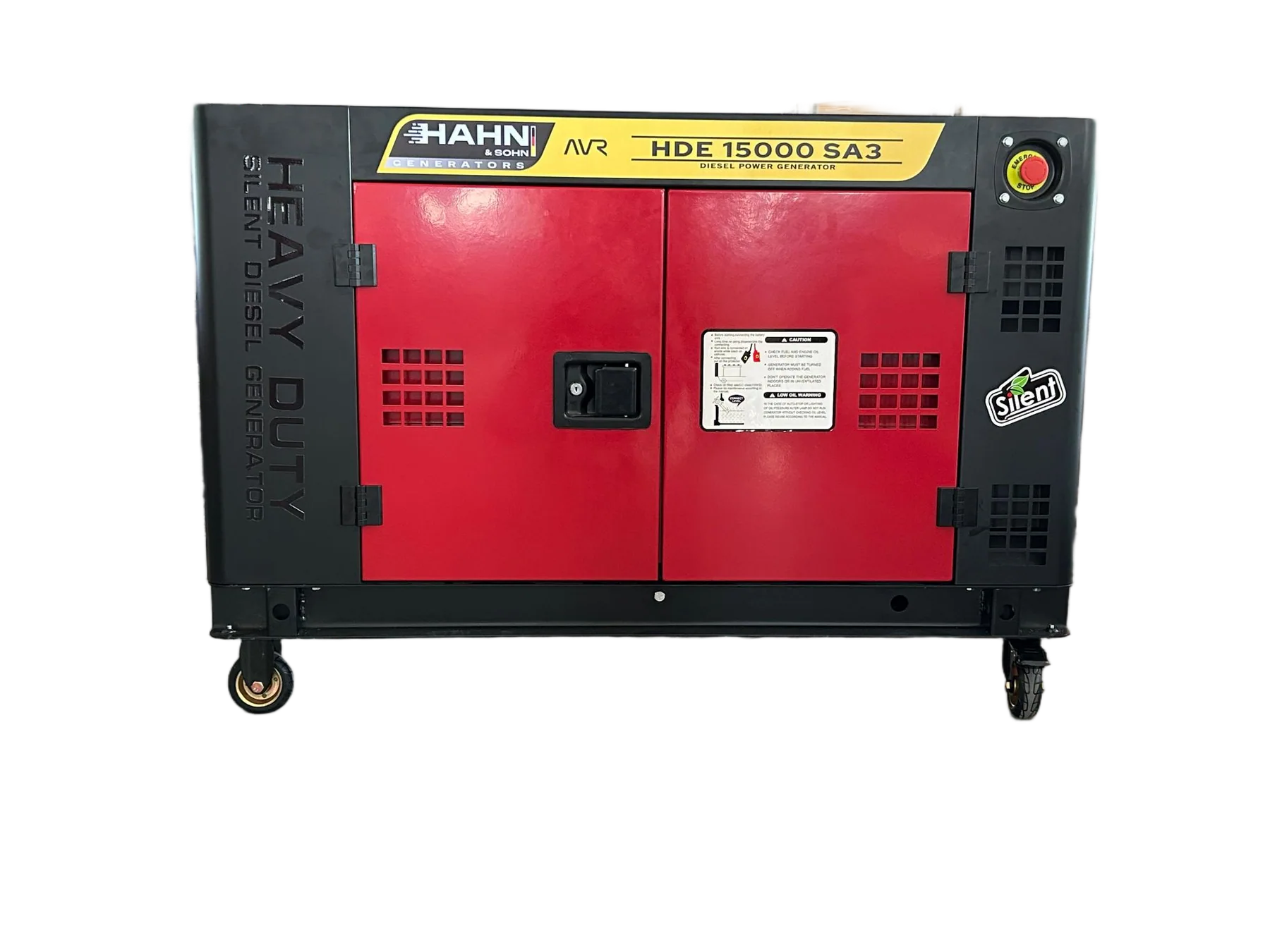

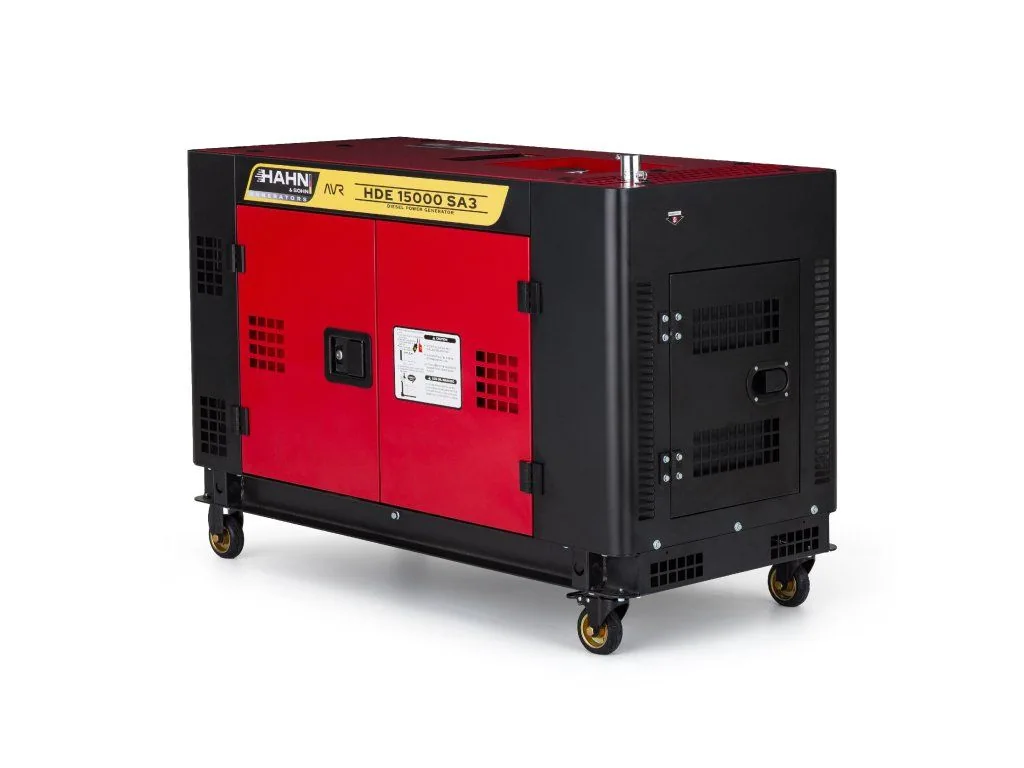

Hahn & Sohn HDE 15000SA3 diesel generator set

The diesel generator Hahn & Sohn HDE 15000SA3 is a robust and reliable source of electrical power in a soundproof enclosure, designed for professional use where emphasis is placed on low noise, stable output, and long service life.

• The generator allows operation at 230 V (single-phase) as well as 400 V (three-phase). It achieves a maximum output of 11.0 kW at 230 V and 12.0 kW at 400 V, while the rated output is 10.0 kW (230 V) and 11.0 kW (400 V). This makes it suitable both for sensitive single-phase appliances and for three-phase machines, technologies, or entire facilities.
• Stable output voltage is ensured by automatic AVR voltage regulation, which protects connected equipment against voltage fluctuations. The generator is equipped with electric starting, engine preheating for reliable starts even in cold weather, and overload and low oil level protection.
• Thanks to the soundproof enclosure, it achieves low noise levels and is suitable for use near residential buildings, business premises, or as a backup power source for homes, companies, and institutions.

Main advantages

• Enclosed (silent) design – reduced noise and protection against weather conditions

• Engine preheating – reliable starting even at low temperatures

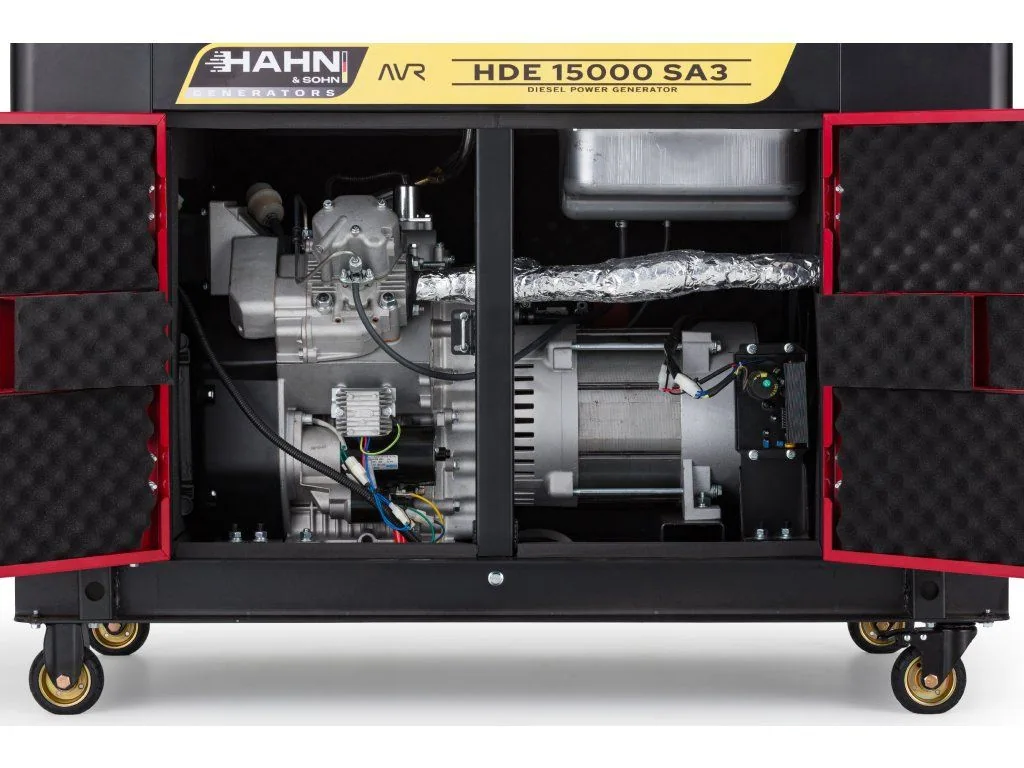

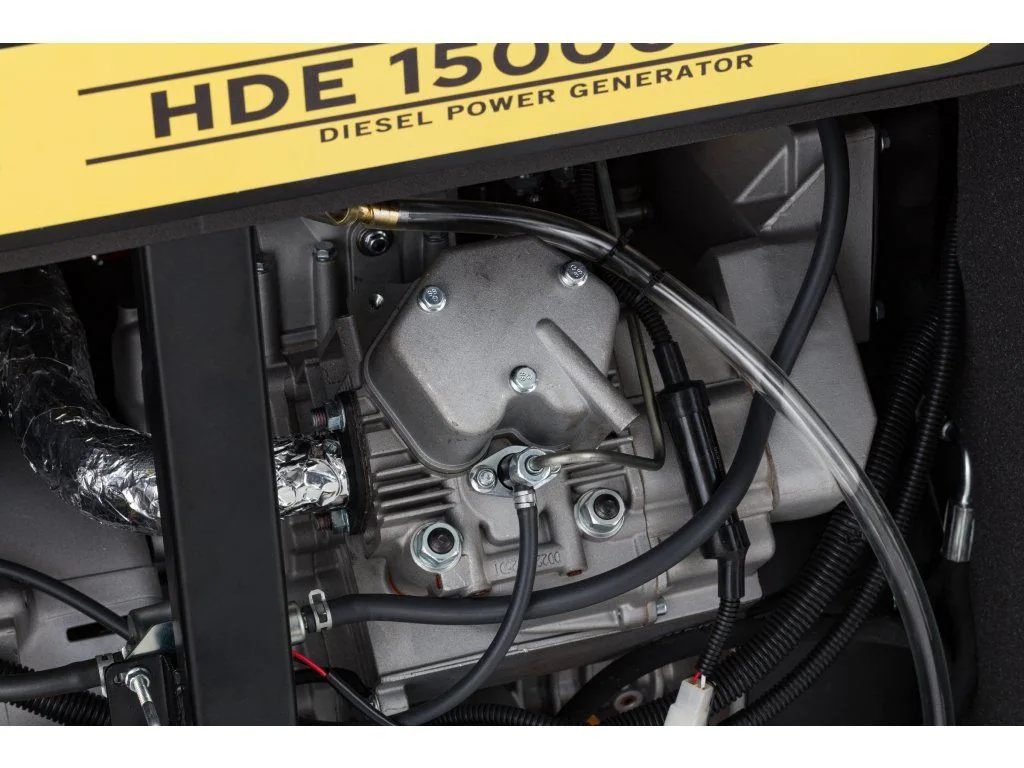

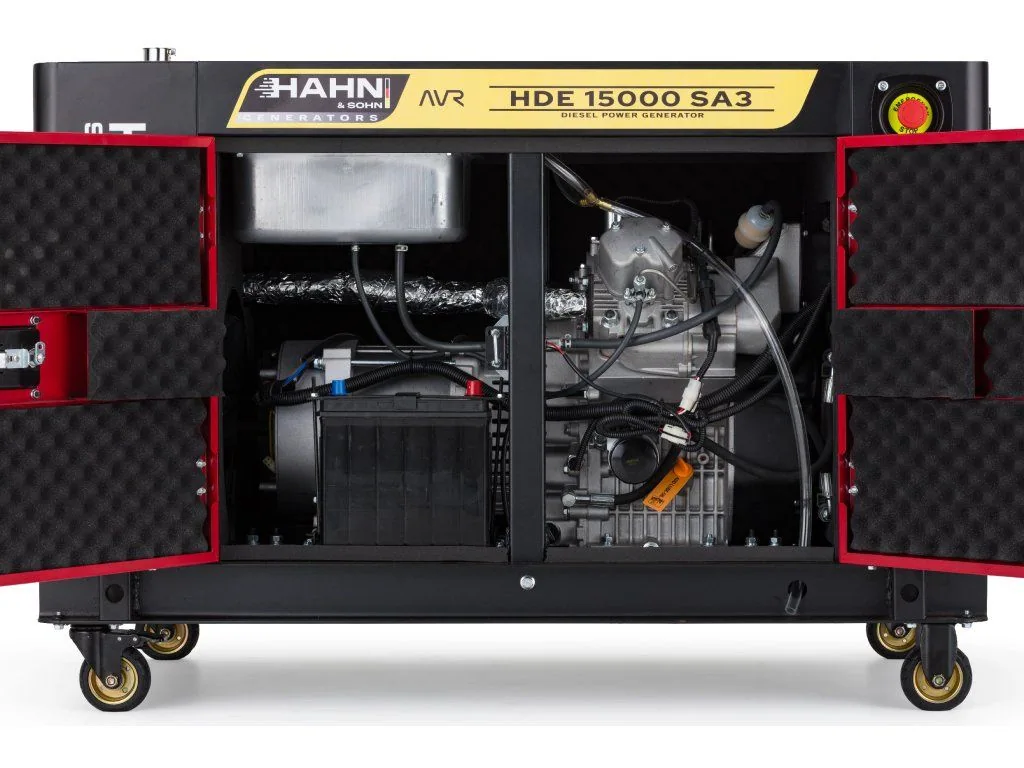

• Powerful twin-cylinder diesel engine SD2V92

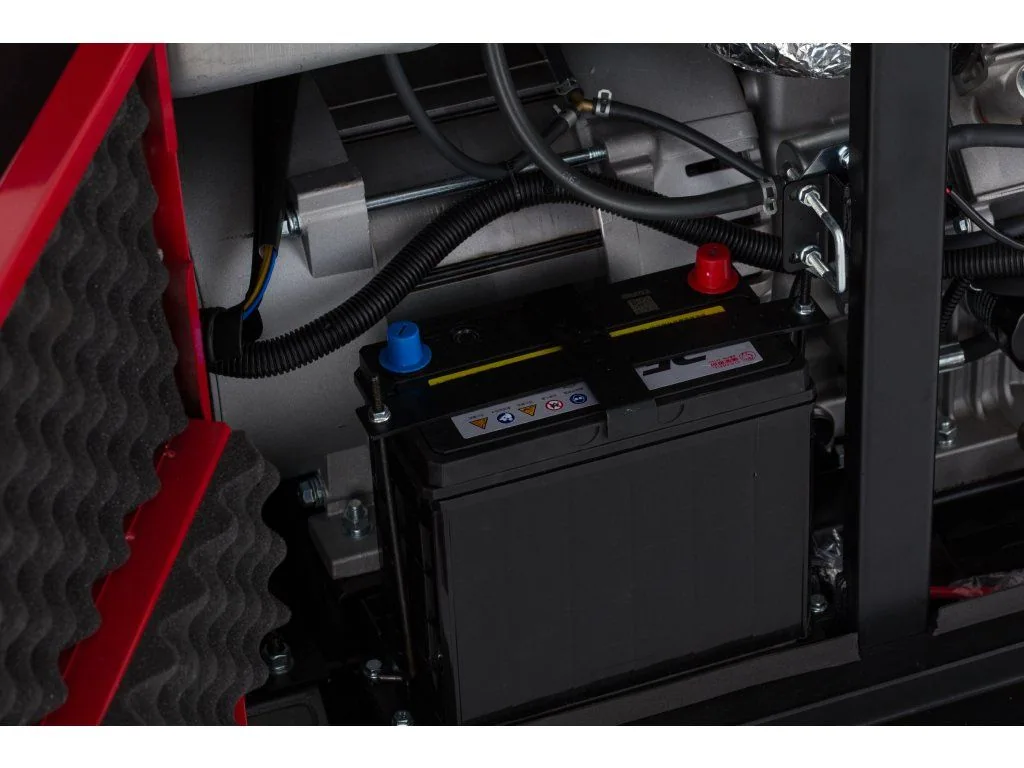

• Electric start

• Stable output thanks to AVR voltage regulation

• Low fuel consumption

• Robust construction for long-term operation

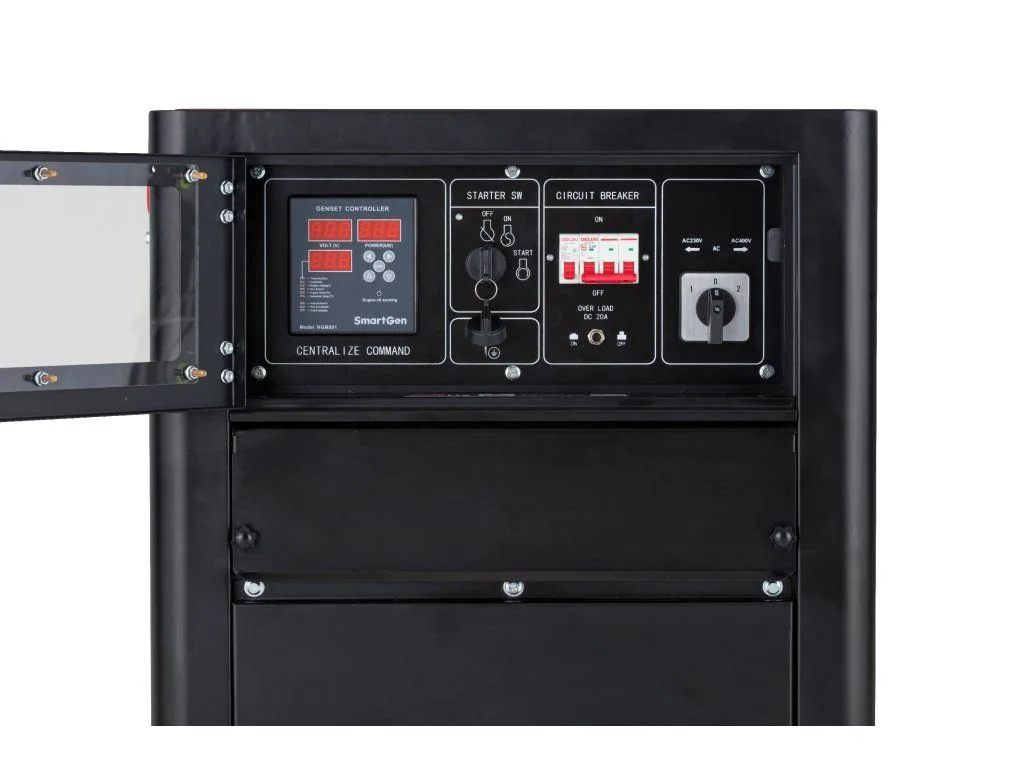

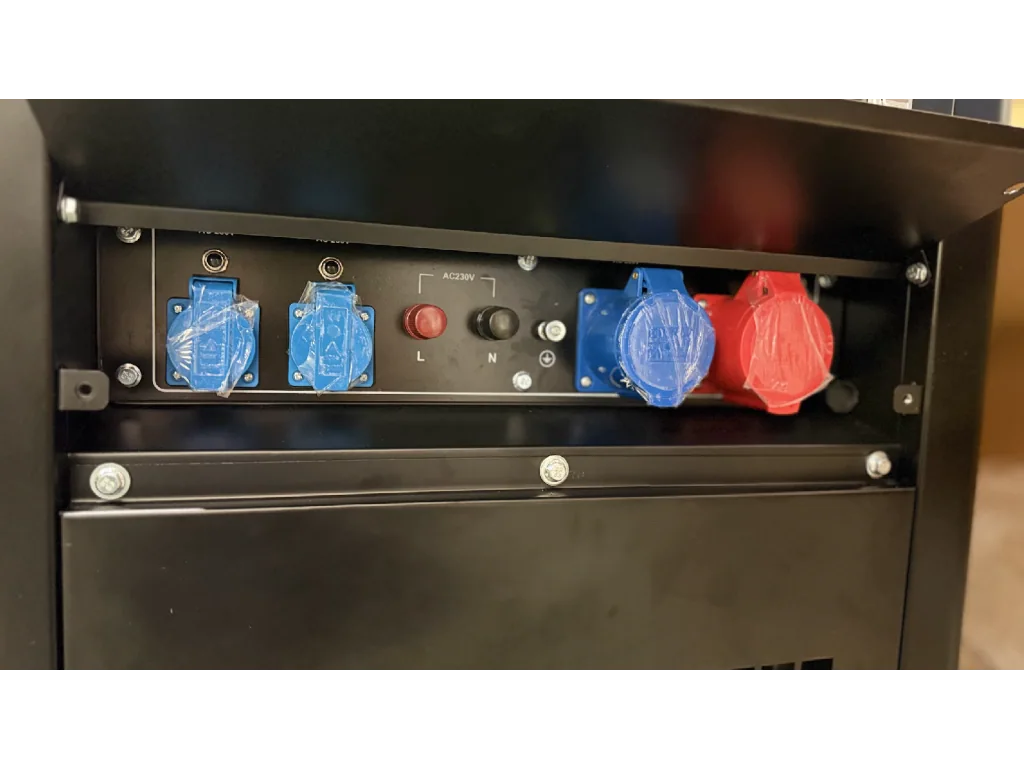

• Voltage selector switch (VTS) 230/400 V

Key features

• Rated output:

  • 10.0 kW (230 V)
  • 11.0 kW (400 V)

• Maximum output:

  • 11.0 kW (230 V)
  • 12.0 kW (400 V)

• Voltage selector switch (VTS) 230/400 V

• Enclosed (silent) design

• Engine preheating – YES

• Electric start

• AVR – automatic voltage regulation

• Air-cooled diesel engine

• High mechanical durability and long service life

Recommended use

• Backup power source for households, companies, and premises

• Construction and industrial operations with higher power demand

• Power supply for pumps, compressors, welders, heaters, or lighting

• Backup power for IT systems, server rooms, and telecommunications

Automatic Transfer Switch (ATS) – How It Works in Practice

Hahn & Sohn ATS 12 kW / 25 A - indoor

The automatic transfer switch (ATS) is used to automatically start the generator in the event of a power failure, thus ensuring an uninterrupted power supply to selected circuits. As soon as the power supply from the grid is restored, the generator switches off automatically and the power supply switches back to the distribution network.

Thanks to this function, the generator acts as a reliable backup source without the need to manually switch anything on or off.

⚠️ Important note: The ATS switch is not included with the generator and must be purchased separately.

Notice

The product is supplied without engine oil and diesel fuel.

Before start-up, add SAE 10W-30 oil and diesel fuel according to EN 590.

First oil change after 50 operating hours, then every 100 hours.

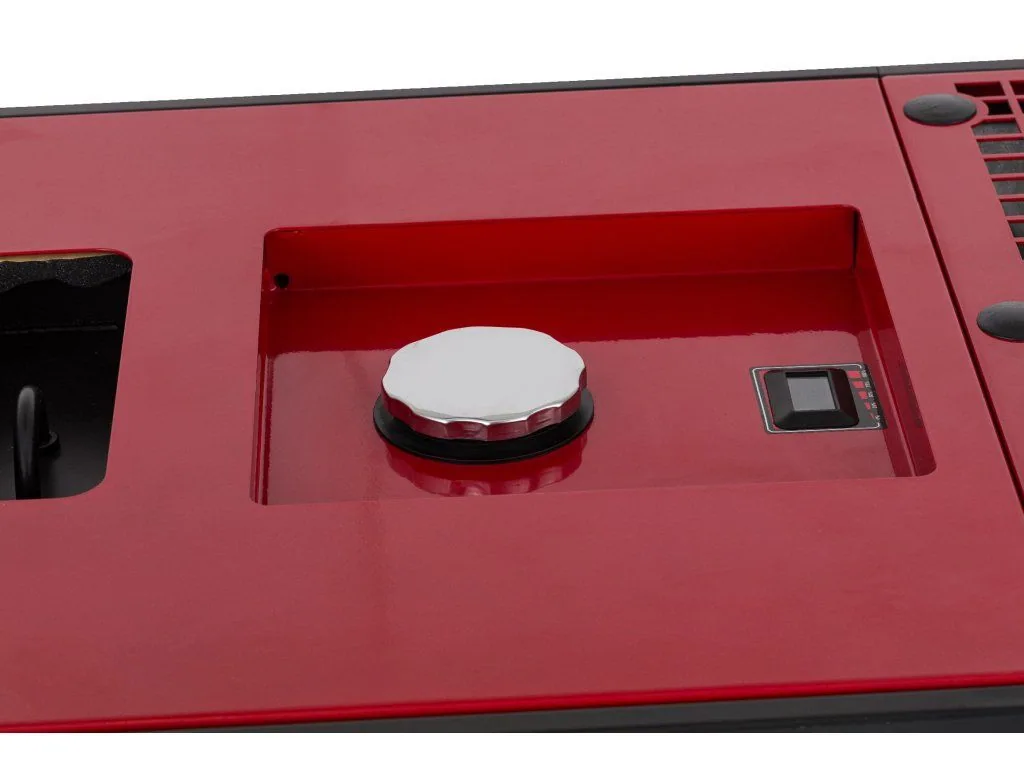

Always check the oil and fuel level before use.
