Hahn & Sohn ATS 12 kW / 25 A - indoor
Hahn & Sohn ATS 12 kW / 25 A - indoor
Automatic Transfer Switch (ATS) for Hahn & Sohn diesel generators, which automatically starts the generator and switches the power supply of the building in the event of a utility power outage. Designed for output up to 12 kW / 25 A, it is an ideal solution for backup power…
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Automatic Transfer Switch (ATS) for Hahn & Sohn diesel generators, which automatically starts the generator and switches the power supply of the building in the event of a utility power outage. Designed for output up to 12 kW / 25 A, it is an ideal solution for backup power supply of homes, commercial premises, and technical facilities.
The Hahn & Sohn ATS 12 kW / 25 A automatic transfer switch is designed for fully automatic control of generator operation during a power outage. At the moment of interruption of the public grid supply, the ATS unit automatically sends a signal to start the generator, switches the power supply to the generator, and after the grid is restored, the entire process is returned back automatically without operator intervention.

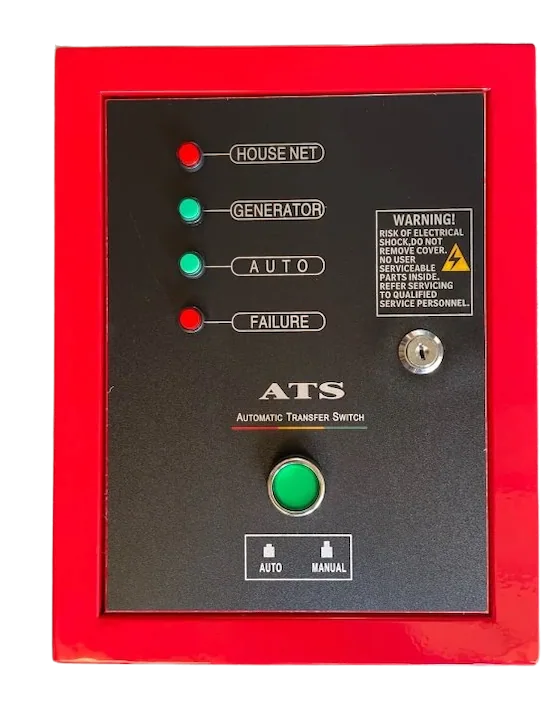

- The unit is equipped with a clear control panel with LED status indication (grid, generator, automatic mode, fault) and allows automatic as well as manual operation. The robust metal enclosure ensures long service life and safe operation even in demanding conditions.
- The ATS includes an integrated generator battery charger, protection against incorrect switching, and safety interlocking that prevents parallel connection of the grid and the generator.
Key Features
-
Automatic generator start and stop
-
Automatic switching between grid and generator
-
Maximum power up to 12 kW
-
Rated current 25 A
-
AUTO / MANUAL mode option
-
LED status indication (grid, generator, fault)
-
Integrated generator battery charger
-
Safety interlock against backfeeding
-
Robust metal enclosure
-
Suitable for continuous backup operation
Compatibility
- Diesel generator Hahn & Sohn HDE 15000SA3
Additional parameters
Technical parameters
| Category | Accessories for power generators |
| Warranty | 2 roky |
| Weight | 8 kg |
| Device type | Automatic Transfer Switch (ATS) |
| Compatibility | Hahn & Sohn HDE 15000SA3 diesel generator set |
| Rated current | 25 A |
| Voltage | 230 / 400 V |
| Frequency | 50 Hz |
| Operating modes | Automatic / Manual |
| Controlling the power generator | Start / Stop |
| Status indication | LED indicator lights |
| Charging the generator battery | Yes (integrated) |
| Construction | Metal cabinet |
| Assembly | Wall-mounted, indoor |
