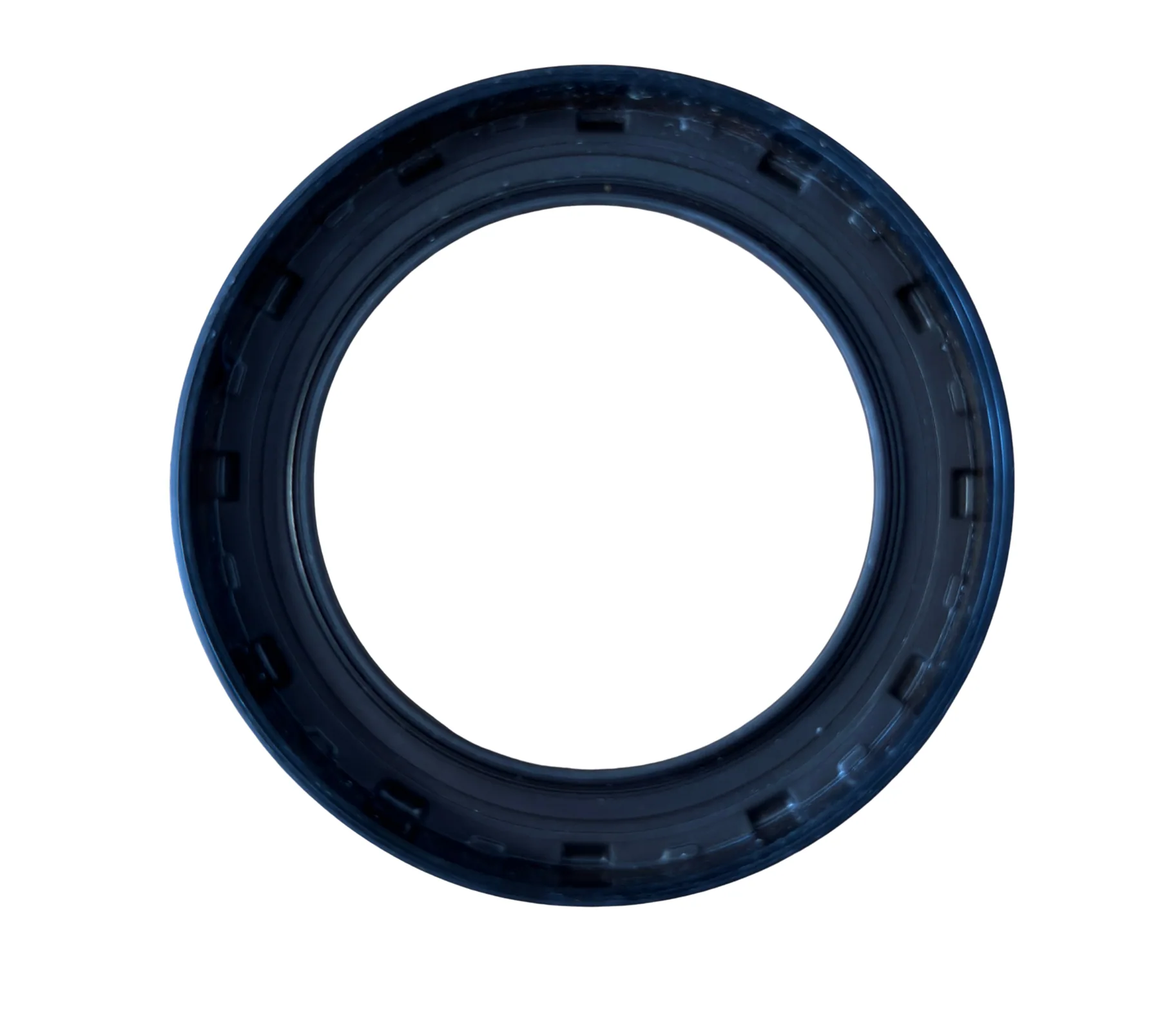

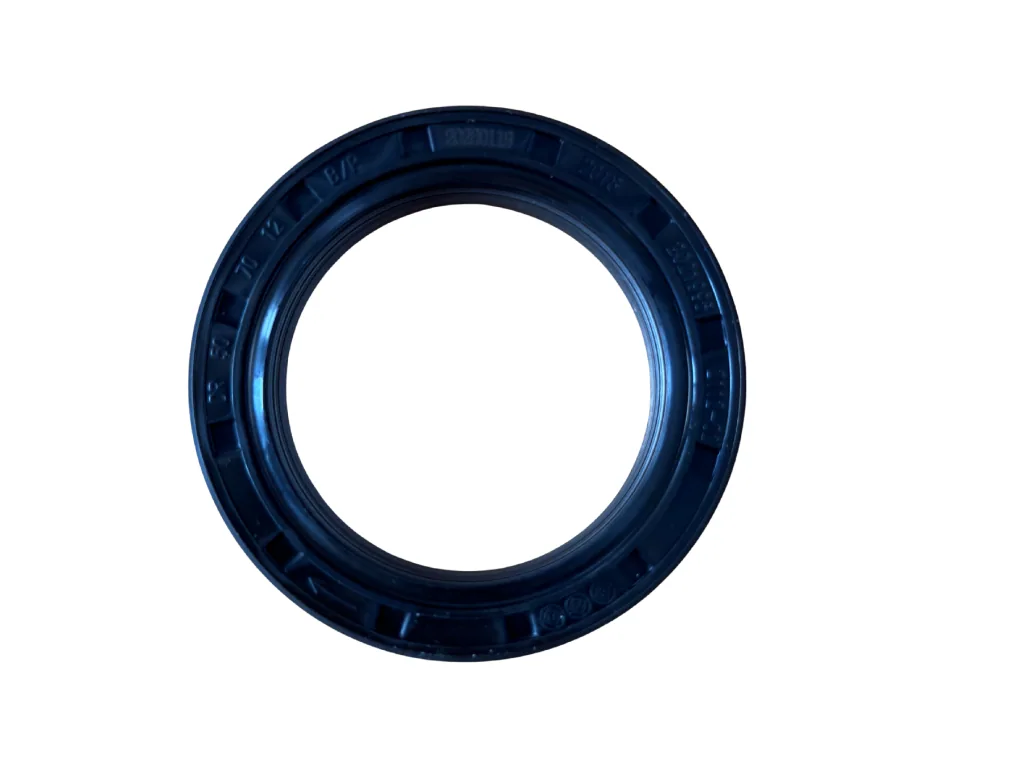

Crank shaft oil seal (flywheel side) – Hahn & Sohn HDE20SS3-DW

The crankshaft oil seal is a rubber sealing ring with a rubber sealing lip that surrounds the rotating shaft and prevents engine oil from leaking out of the crankcase. This seal is located on theflywheel side.

• The seal measures50 × 70 × 12 mm
• A leaking or hardened/cracked seal will be indicated by an oil stain beneath the generator and a gradual loss of engine oil — it is a common wear part that should be replaced during every complete engine overhaul or whenever this area is disassembled.

WHY CUSTOMERSCHOOSE IT

• Standardised size 50×70×12 mm
• Exact match for the WEICHAI WP2.3D25E200 engine

PRACTICALTIP

When installing a new seal, lightly apply a thin layer of engine oil or sealing compound to the outer circumference (metal casing) and a small amount of oil to the sealing lip — this makes insertion easier and prevents damage to the lip when the engine is first started. Press the seal in evenly, never at an angle, ideally using a suitable installation tool.

KEY FEATURES

• Type: oil seal (shaft seal)
• Size: 50 × 70 × 12 mm (inner diameter × outer diameter × width)
• Material: rubber (NBR)
• Location: flywheel side of the crankshaft
• Designed for engine: WEICHAI WP2.3D25E200
• Compatible generator: Hahn & Sohn HDE20SS3-DW (20 kW / 25kVA)

USE / INSTALLATION/OPERATION

1. Disconnect the generator from the power supply and drain the engine oil.
2. Remove the cover/component on the flywheel side according to the engine service procedure.
3. Carefully pry out the old seal, clean the seating surface, and check whether the shaft surface is damaged where it contacts the sealing lip.
4. Apply a thin layer of oil to the sealing lip of the new seal and press it evenly into place using a suitable tool (do not strike the seal directly with a hammer).
5. Reinstall the cover/component, refill the oil, and check for leaks after starting the engine.
