Valve stem seal – Hahn & Sohn HDE20SS3-DW
Valve stem seal – Hahn & Sohn HDE20SS3-DW
Valve stem seal for the WEICHAI WP2.3D25E200 engine used in the Hahn & Sohn HDE20SS3-DW diesel generator. Prevents oil from passing from the valve train area along the valve stem into the intake or exhaust port
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Valve stem seal for theWEICHAI WP2.3D25E200 engine used in theHahn & Sohn HDE20SS3-DW diesel generator. Prevents oil from passing from the valve train area along the valve stem into the intake or exhaustport.

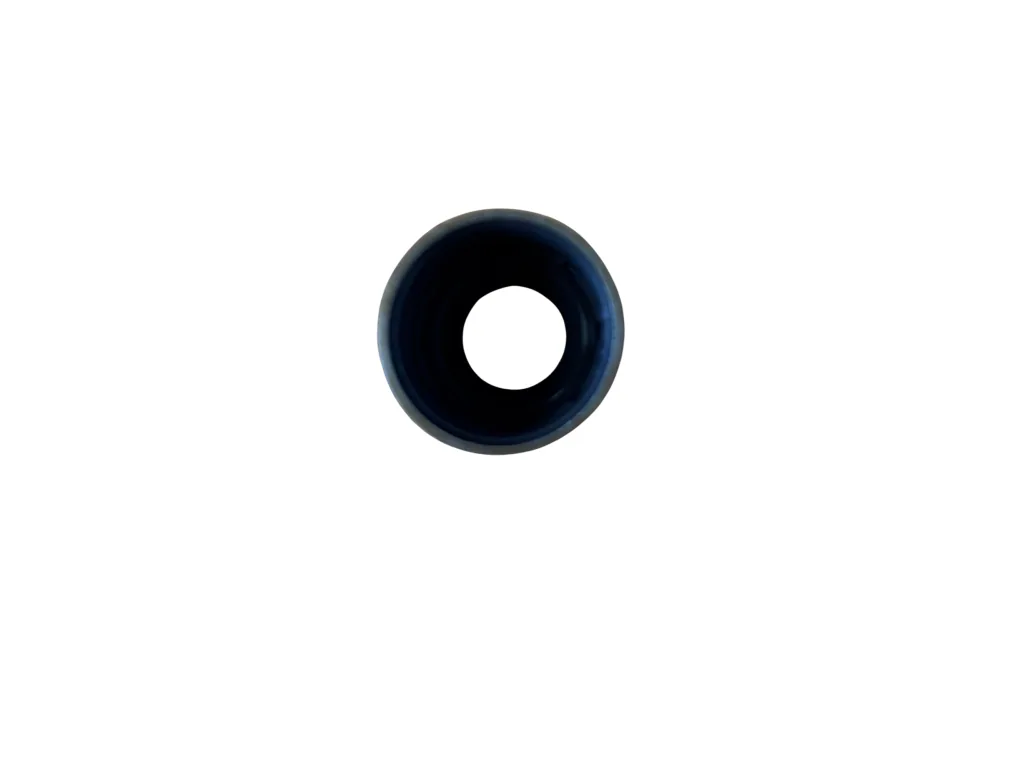

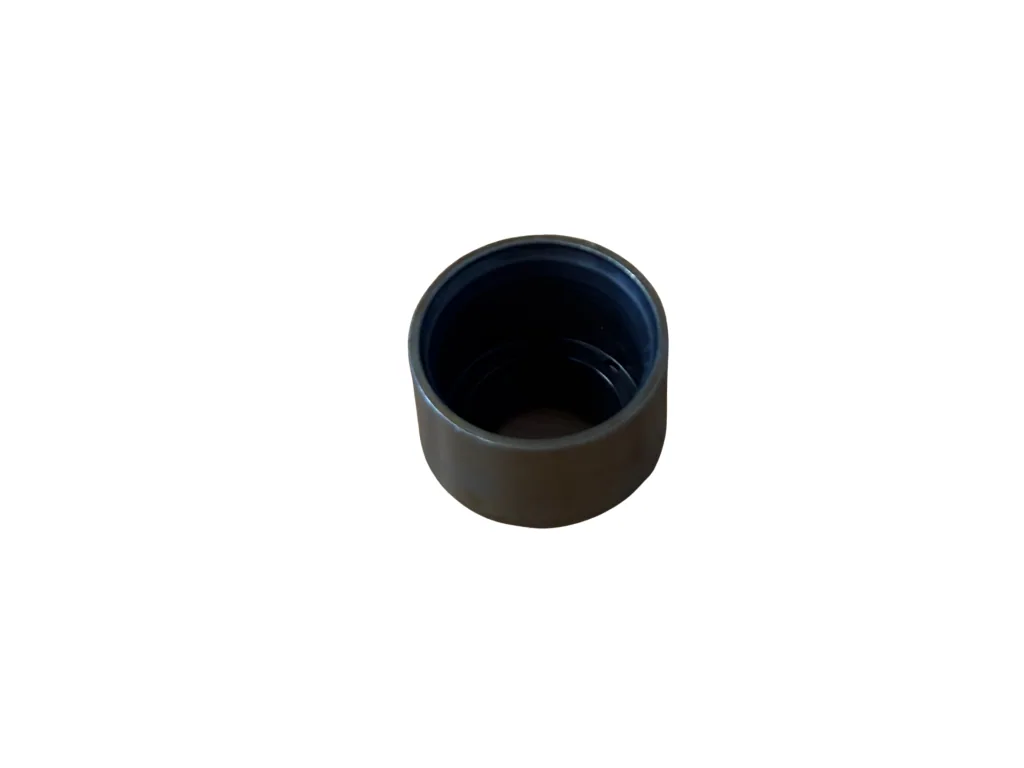

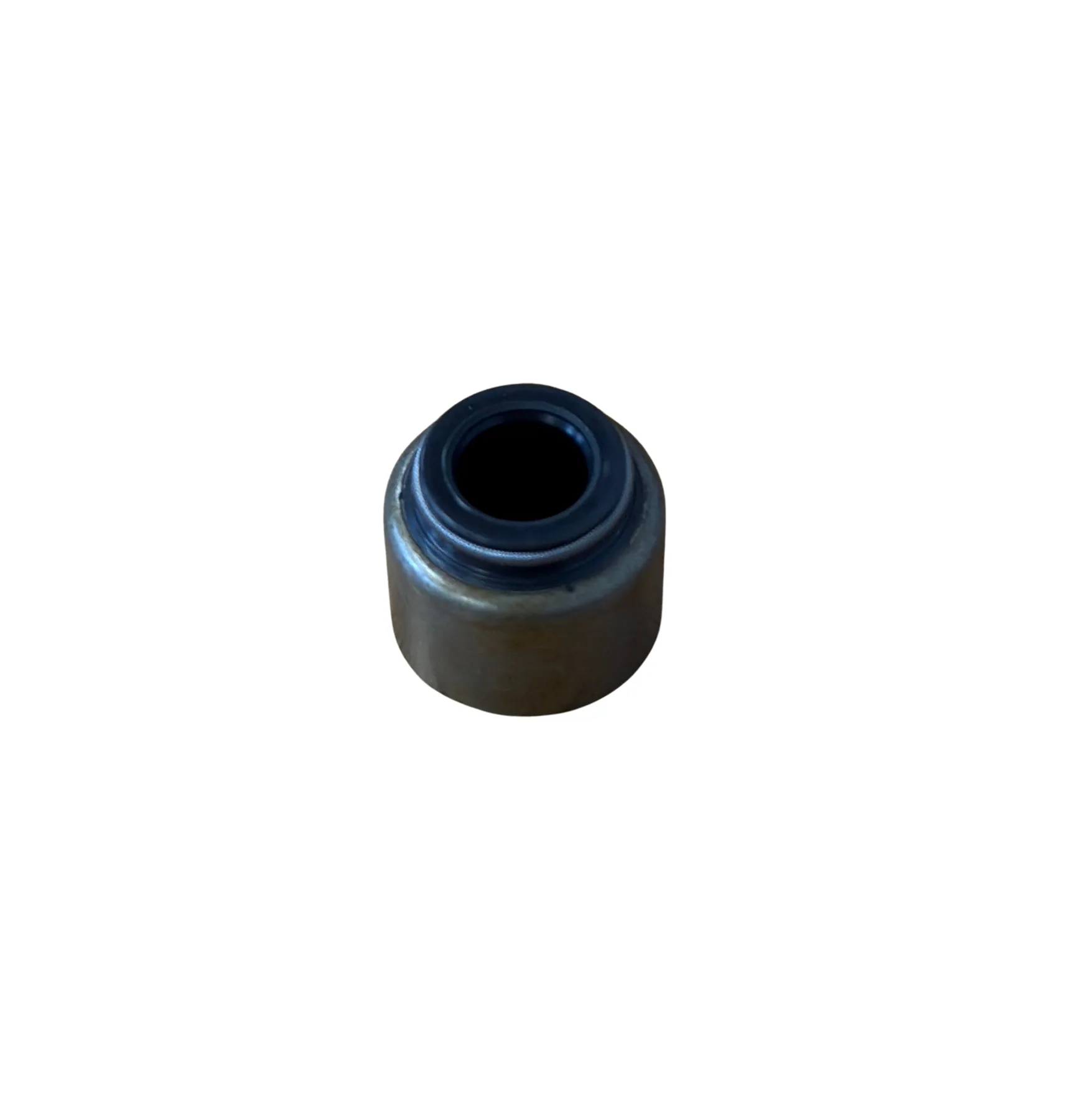

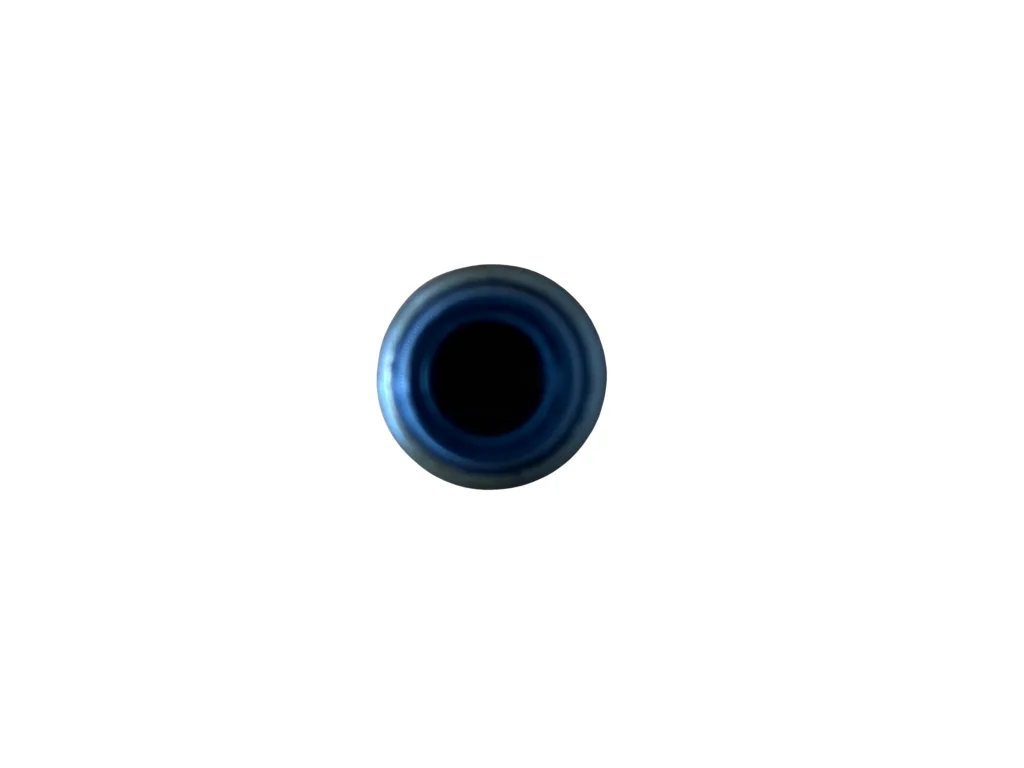

The valve stem seal is a small but functionally important component — a metal housing with a rubber sealing element inside that fits onto the valve guide in the cylinder head. The valve stem passes through it and the sealwipes away excess oil to prevent it from entering the combustion chamber. A worn or damaged seal is indicated by blue smoke from the exhaust and increased oilconsumption.
- The part is designed for the four-cylinder diesel engineWEICHAI WP2.3D25E200(Hahn & Sohn HDE20SS3-DW generator, 20 kW / 25 kVA). During a complete cylinder head overhaul, these seals are always replaced as a set for allvalves.
WHY CUSTOMERSCHOOSE IT
- Exact match for the WEICHAI WP2.3D25E200 engine
- Essential part for a complete cylinder head overhaul
PRACTICALTIP
When installing the valve stem seal, make sure that the rubber sealing element is not damaged by the edge of the valve stem during insertion — use a suitable installation tool and lightly lubricate the sealwith oil.
KEY FEATURES
- Type: valve stem seal (metal housing with rubber sealing element)
- Location: valve guide in the cylinder head
- Designed for engine: WEICHAI WP2.3D25E200
- Compatible generator: Hahn & Sohn HDE20SS3-DW (20 kW/25kVA)
USE /INSTALLATION/OPERATION
- Remove the cylinder head and valve train according to the service procedure.
- Remove the valve and the old seal from the guide.
- Lightly lubricate the new seal with oil and fit it onto the valve guide using a suitable installation tool — evenly, without tilting.
- Insert the valve again and check that the seal was not damaged during installation.
Installation requires experience with valve trainservicing.
Additional parameters
Technical parameters
| Category | Other |
| Weight | 0.01 kg |
| Part type | Valve stem seal |
| Design | Metal casing with a rubber seal |
| Location | Valve guide in the cylinder head |
| Designed for the engine | WEICHAI WP2.3D25E200 |
| Compatible machine | Hahn & Sohn HDE20SS3-DW (20 kW / 25 kVA) |
