A popular gasoline generator suitable even for construction sites, with a power output of 5.5 kW and an output voltage of 230V. Reliable engine and large fuel tank.

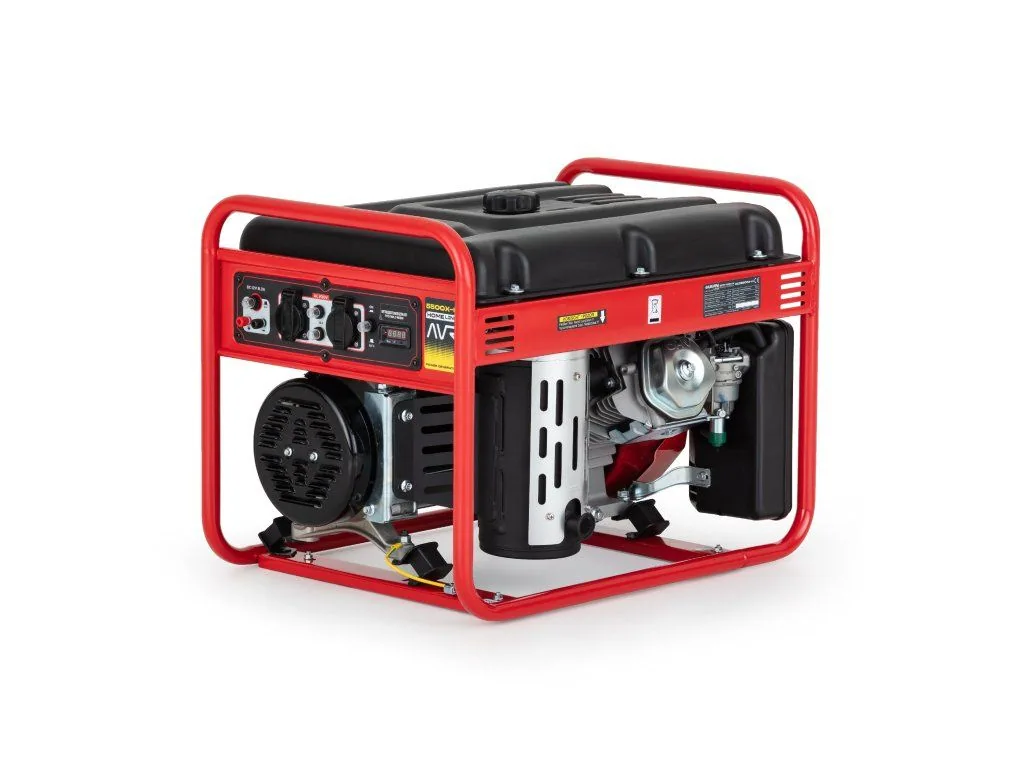

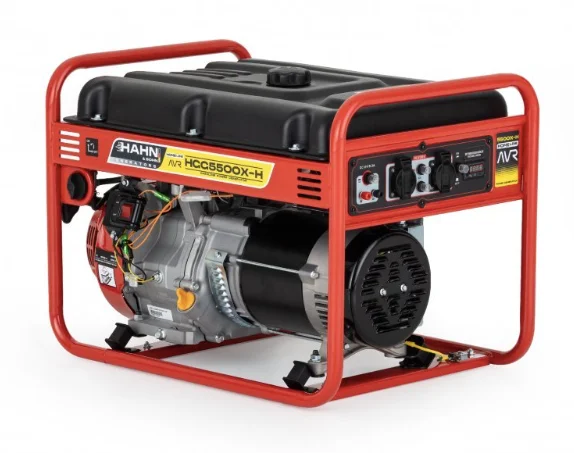

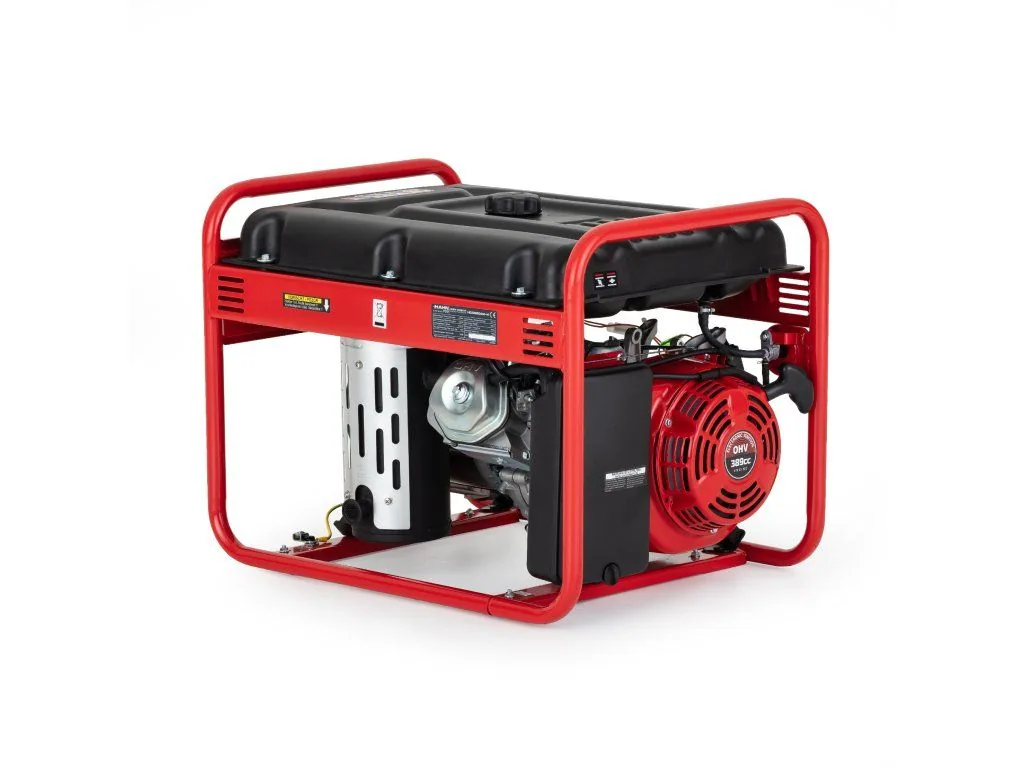

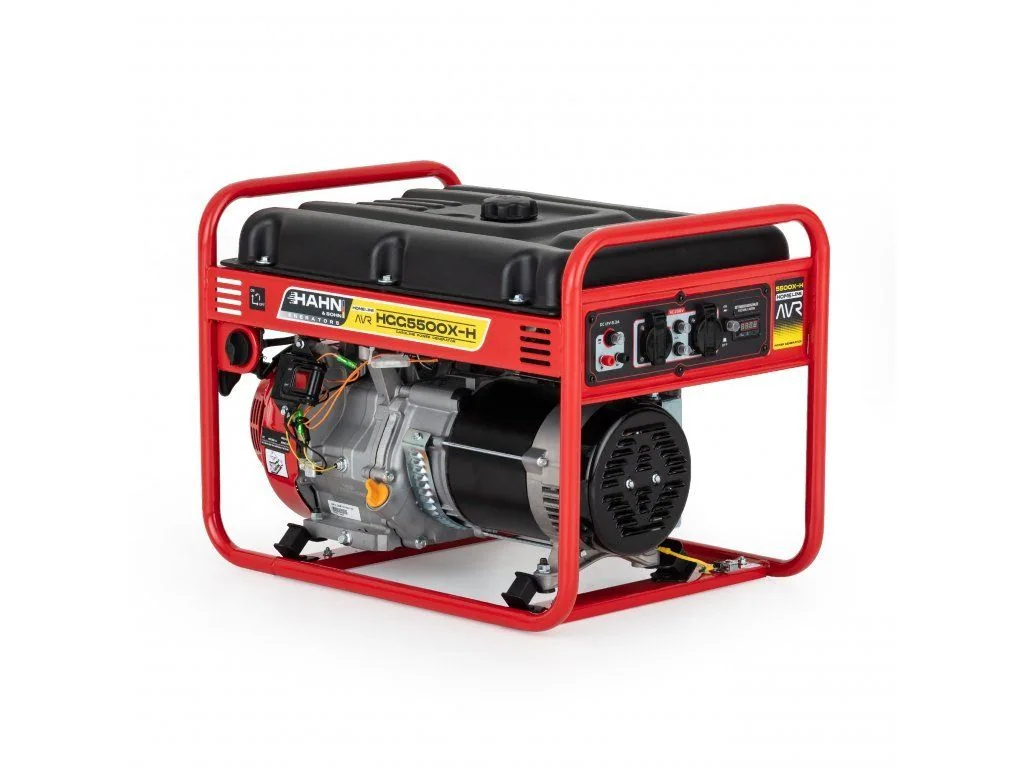

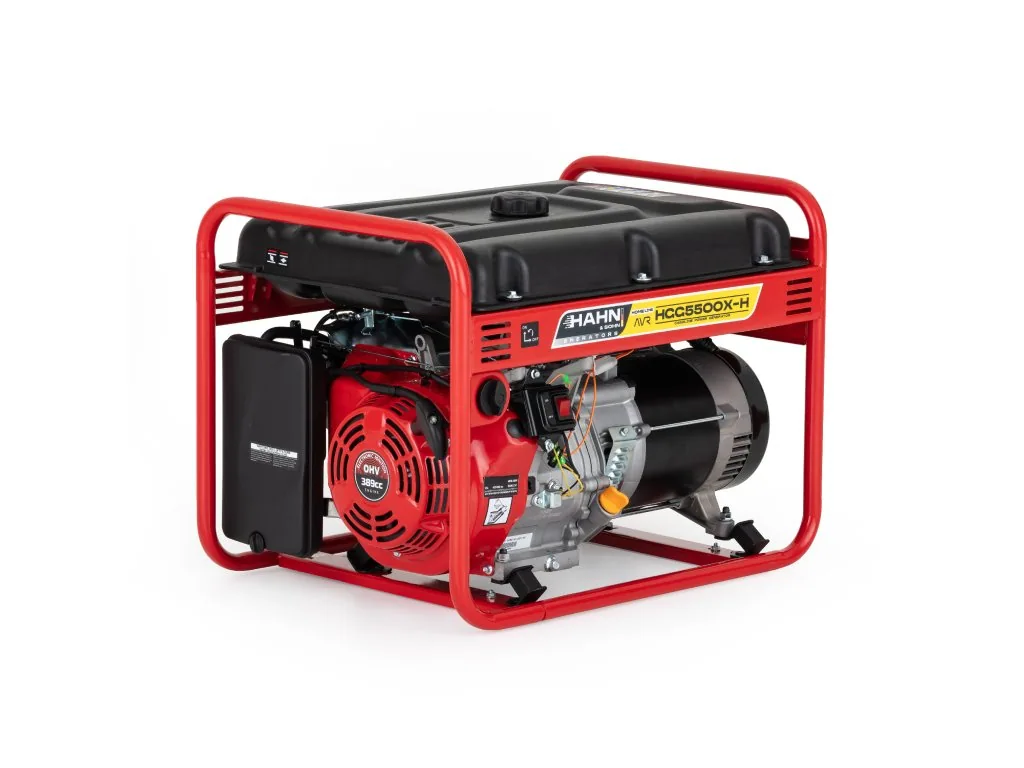

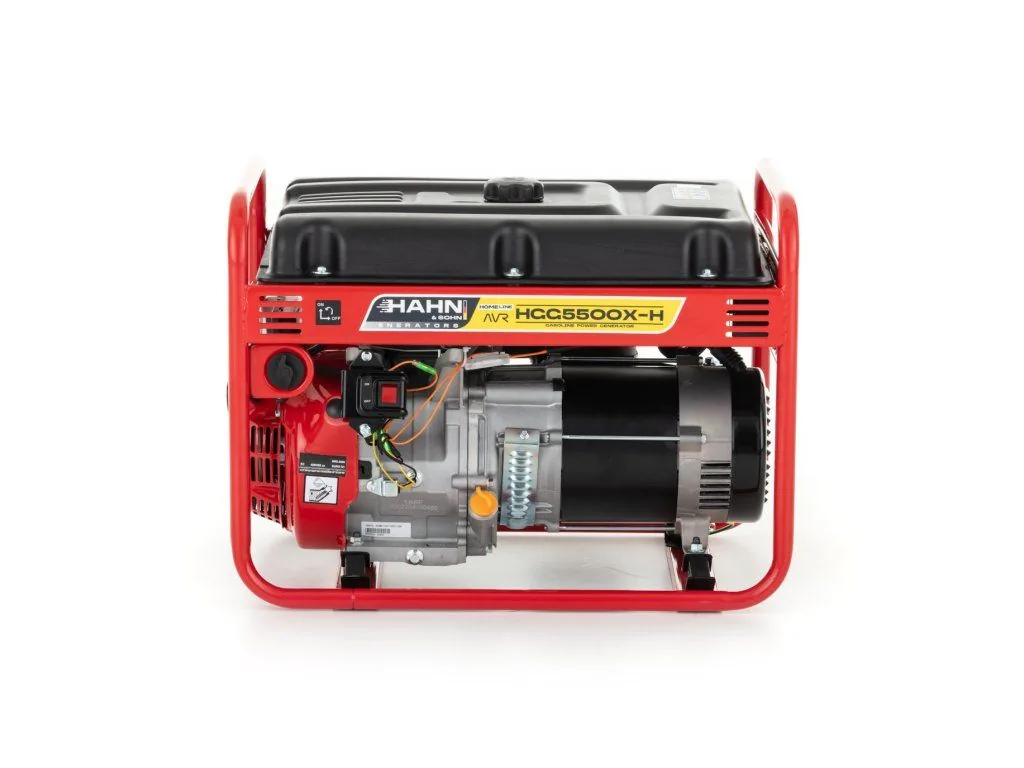

Hahn & Sohn Gasoline Generator HGG 5500X-H
Hahn & Sohn HGG 5500X-H is a modern gasoline generator that stands out for its reliability and smooth operation. Thanks to this, the Hahn & Sohn HGG 5500X-H is a versatile helper for construction sites, events, agriculture, or your own home. The generator is also suitable for emergency power supply.
Hahn & Sohn HGG 5500X-H Description:

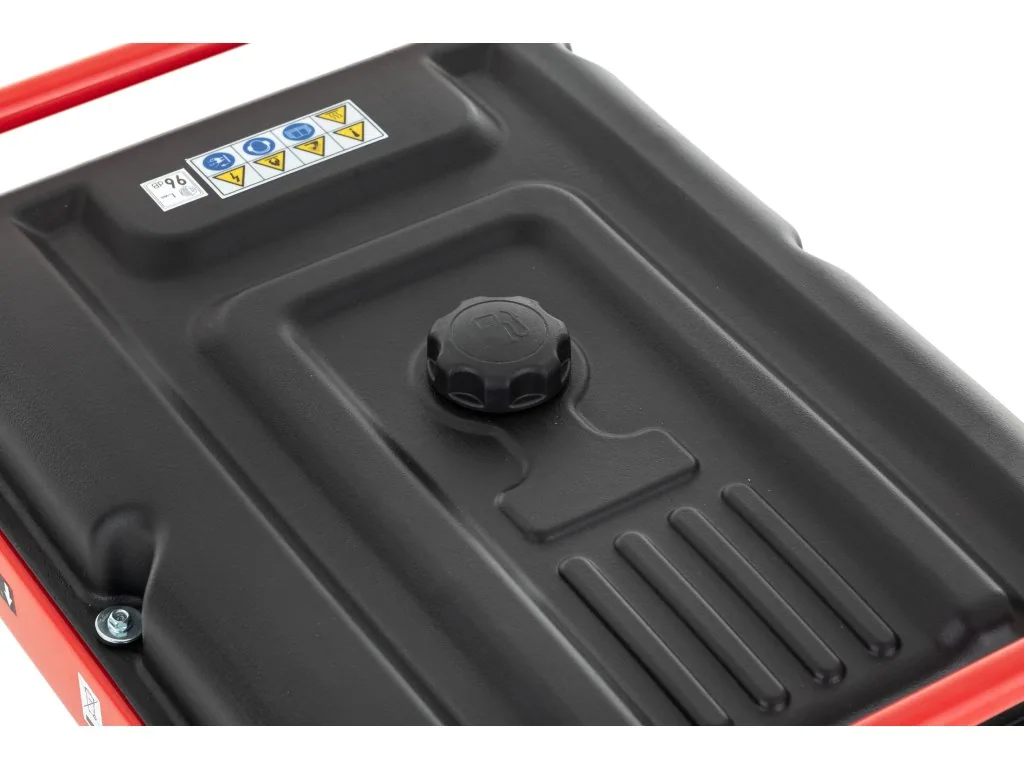

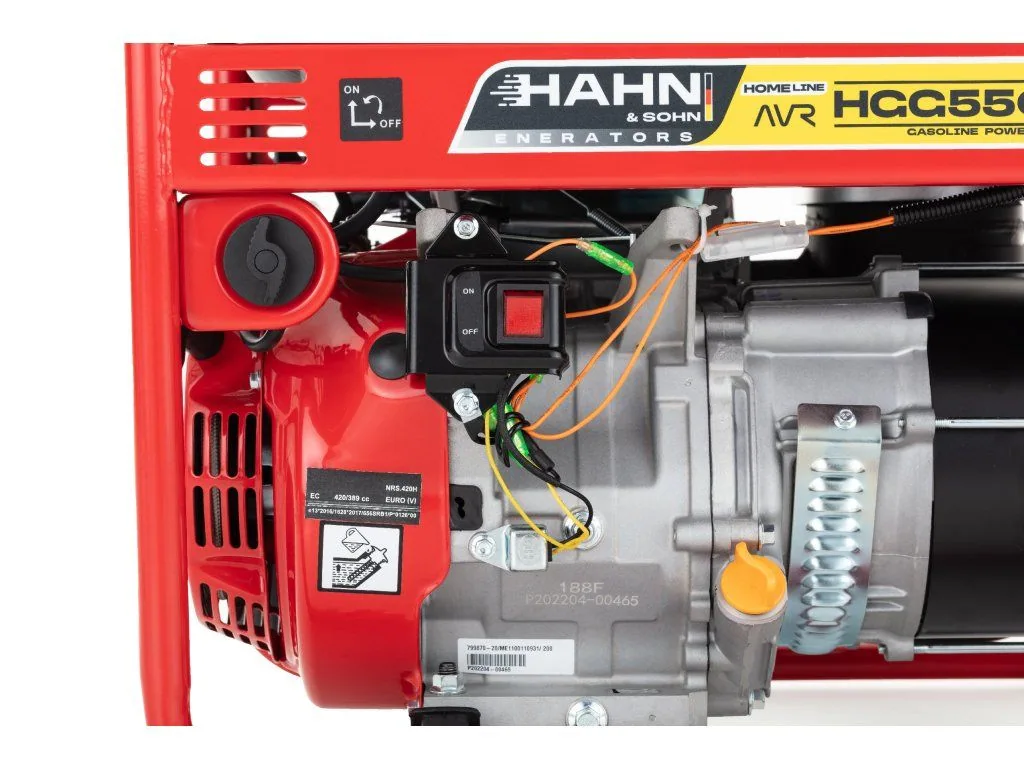

The air-cooled four-stroke engine has a large 18 L fuel tank, allowing for long and trouble-free operation of up to 6.5 hours. The generator is started manually and provides 230V output. The resulting power is 5.5 kW (maximum power) and 5 kW (rated power), making it a powerful companion.
Thanks to the automatic voltage regulator – AVR – voltage fluctuations are prevented, avoiding possible damage to connected devices. This allows you to safely connect sensitive equipment or appliances that are difficult to start.
Hahn & Sohn HGG 5500X-H Features:
- Reliable gasoline engine ensuring many years of trouble-free operation
- Durable compact housing that makes transport easy and protects against damage
- Vibration isolation effectively dampens vibrations, improving durability
- AVR voltage stabilization system
- Large fuel tank
Additional parameters
Technical parameters
| Category | Gasoline power generators |
| Warranty | 5 years |
| Weight | 79 kg |
| EAN | 8594210230163 |
| Fuel tank capacity of the generator | 18 l |
| Maximum power output of the generator | 5,5 kW |
| Nominal power of the generator | 5 kW |
| Starter | Manual |
| Voltage | 230 V |
| Rated current, A | 21,7 |
| Frequency, Hz | 50 |
| noise level, dB(A) | 96 |

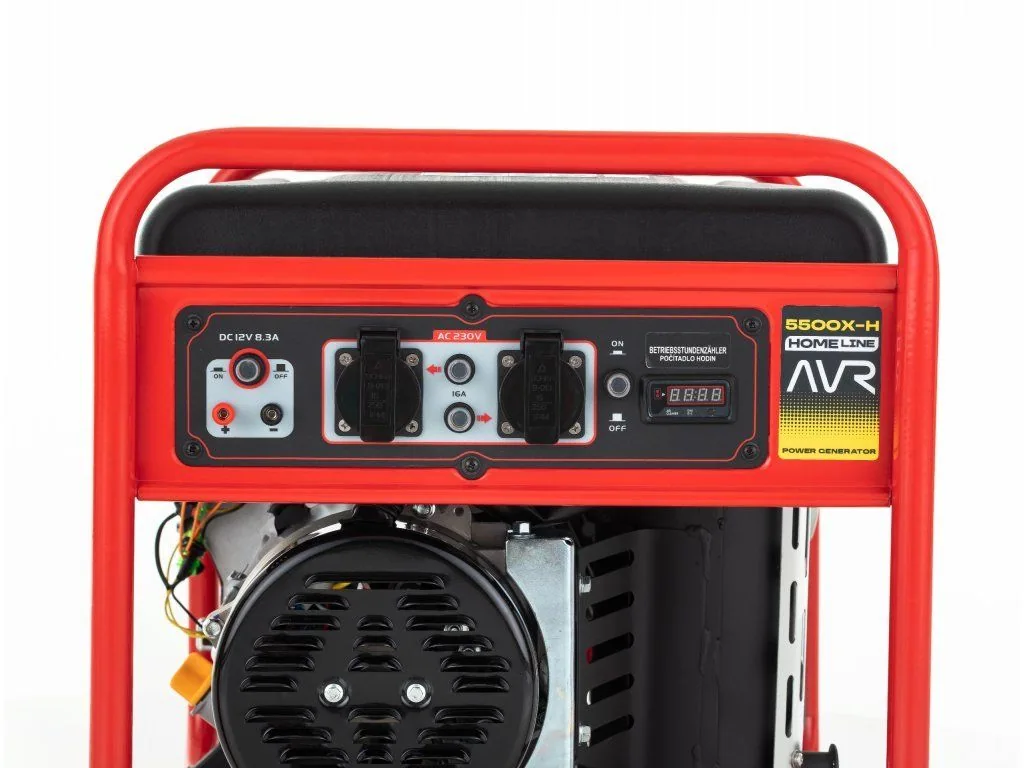

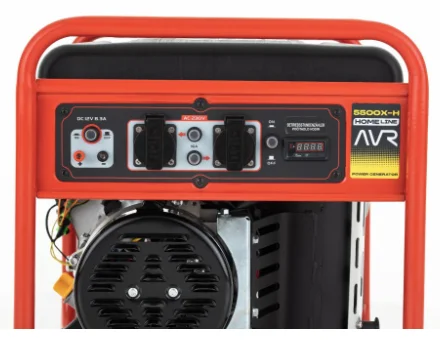

| Sockets | 2 x 230V (16A) |
| Voltage regulation | AVR |

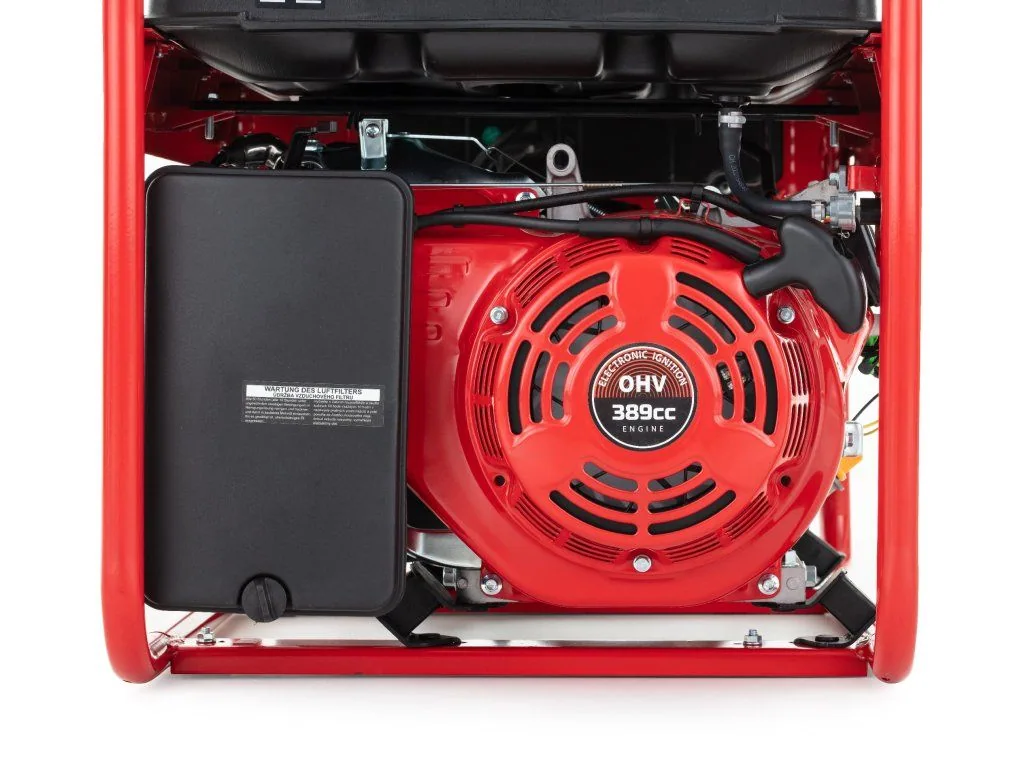

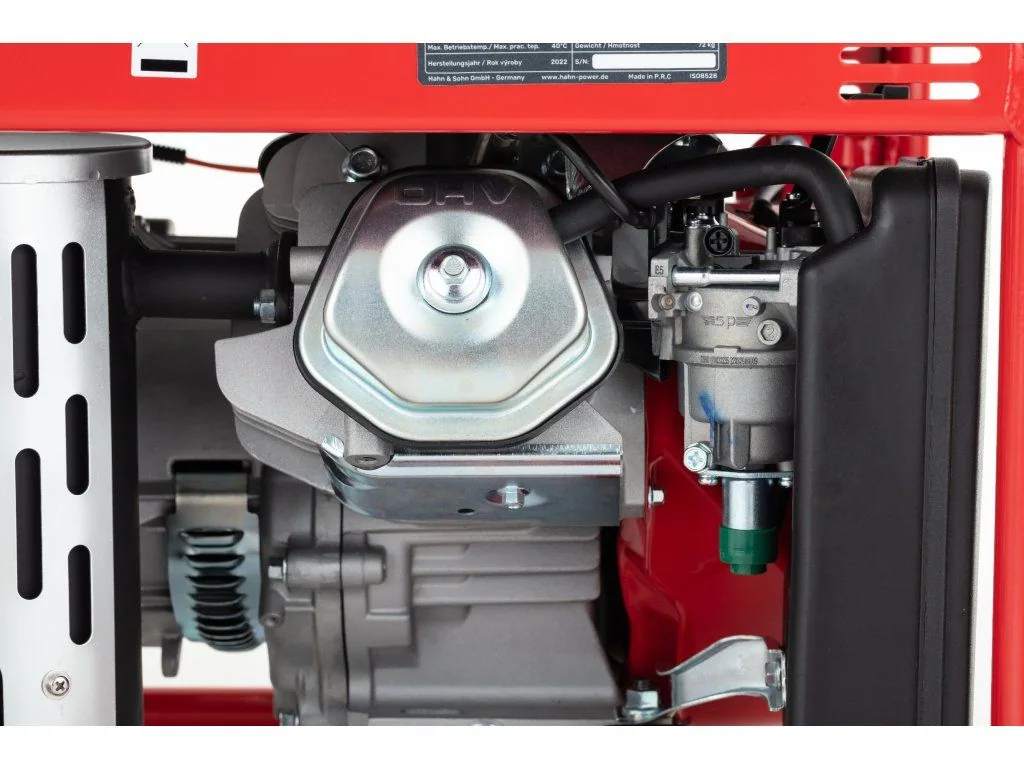

| Engine type | Single cylinder, 4-stroke, air-cooled, OHV |
| Displacement, cm³ | 389 |
| Oil tank capacity, l | 1,1 |
| Consumption at 50% load, l/h | 1,95 |
| Operating time at 50% power, h | 9,2 |
| Dimensions, mm | 675x485x500 |
| Recommended fuel | unleaded gasoline Pb95 (E5) |
| Engine power, kW | 8,2 |
| Maximum fuel consumption, l/hour | ≤4.1 |
| Protection grade | IP 21 |
