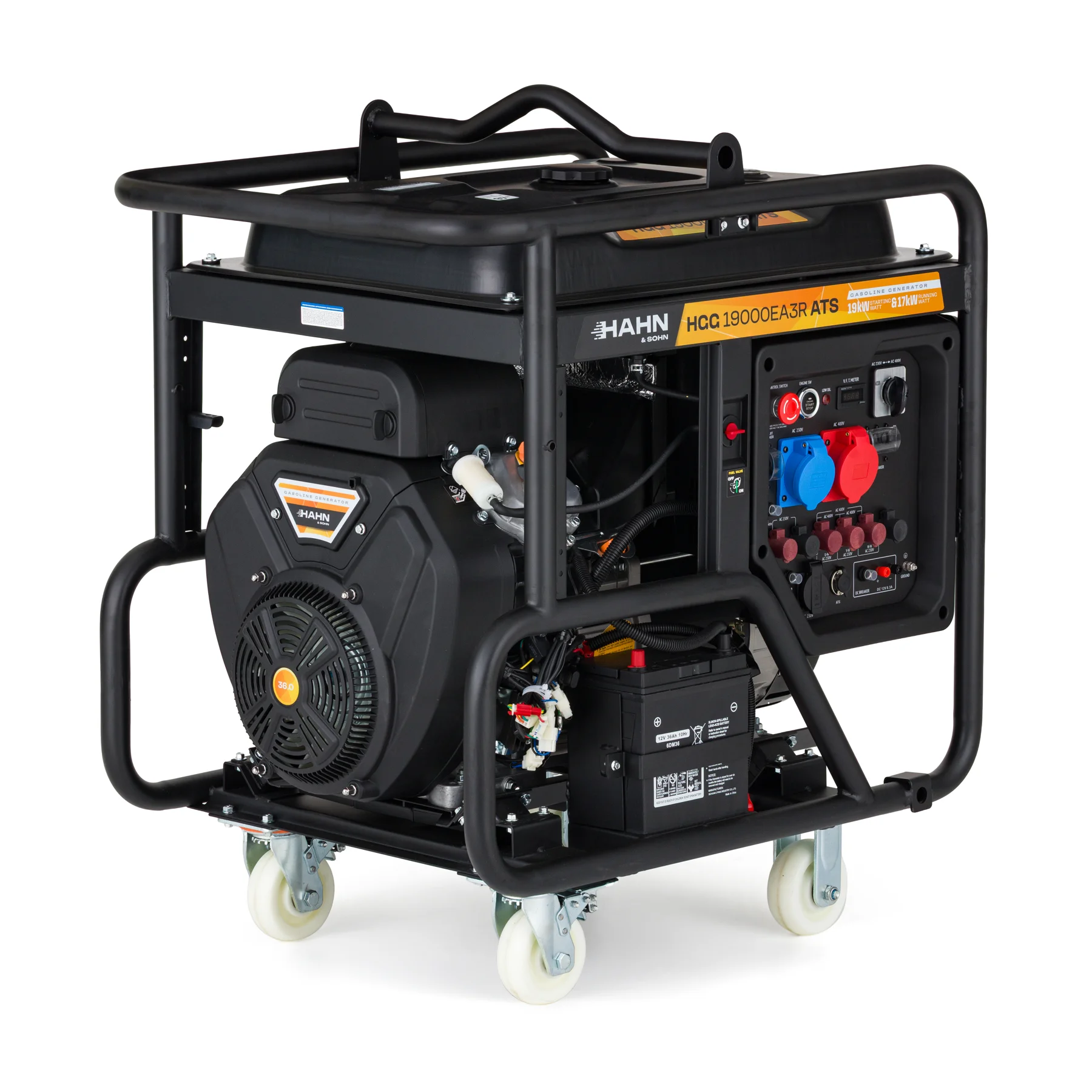

The powerful three-phase Hahn & Sohn HGG 19000EA3R ATS petrol generator is designed for professional use as a primary or backup source of electrical power. It offers a rated output of 17 kW, a maximum output of 19 kW, electric starting and an ATS connector for connecting an automatic transfer switch. Thanks to its robust construction, high output and transport wheels, it is ideal for construction sites, industrial operations, agriculture and building backup power.
Hahn & Sohn HGG 19000EA3R ATS is a professional high-performance petrol generator designed for demanding operating conditions. It provides three-phase 400 V as well as single-phase 230 V, allowing it to power a wide range of electrical equipment, machinery and tools.
- The model offers a rated output of 17 kW and a maximum output of 19 kW, making it a suitable power source for construction sites, production facilities, agricultural buildings, as well as backup power for family homes, companies or workshops.

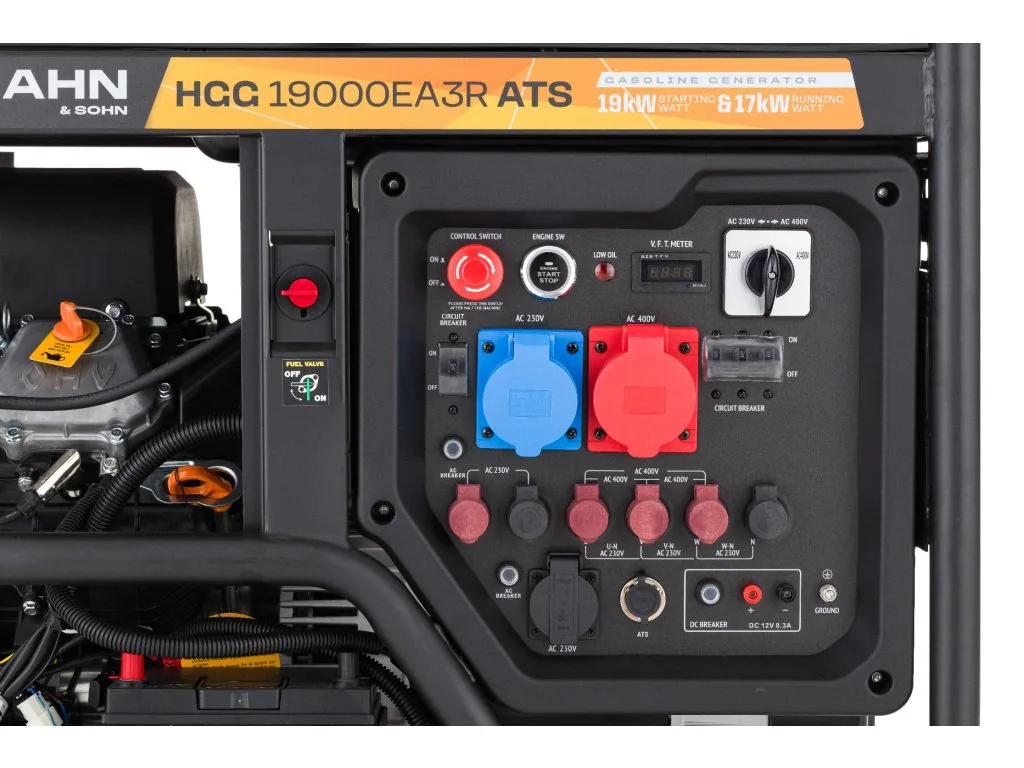

- The equipment includes electric starting, an ATS connector for connecting an automatic transfer switch, automatic AVR voltage regulation, low oil level protection, overload protection, a voltmeter and a fuel gauge.

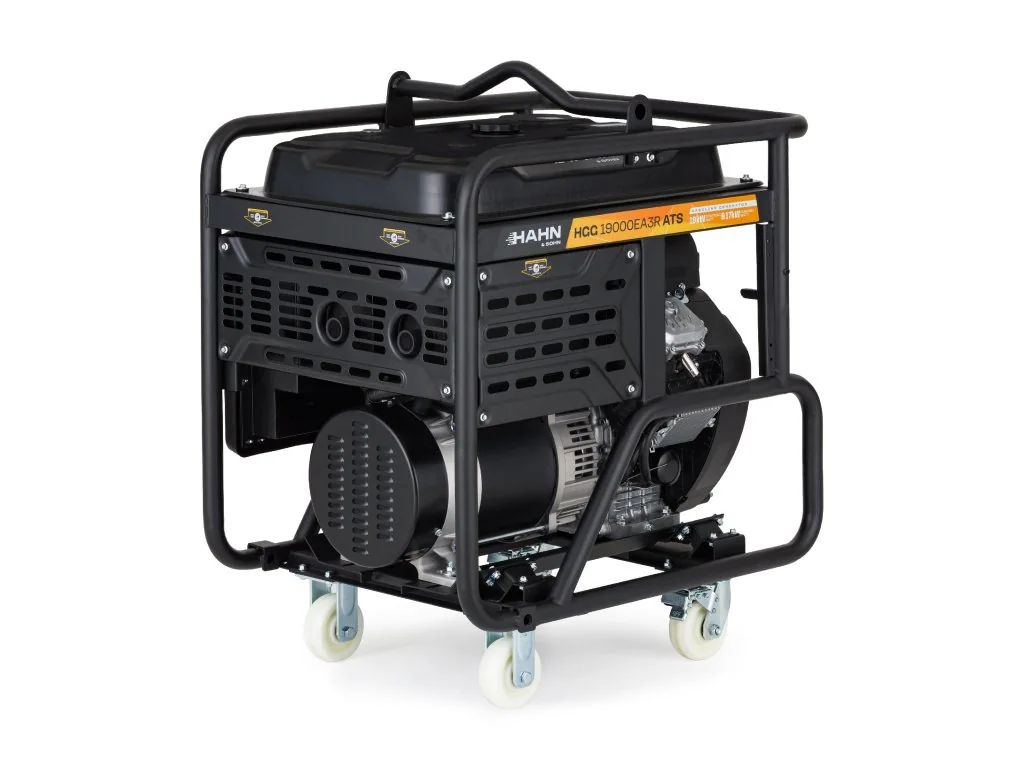

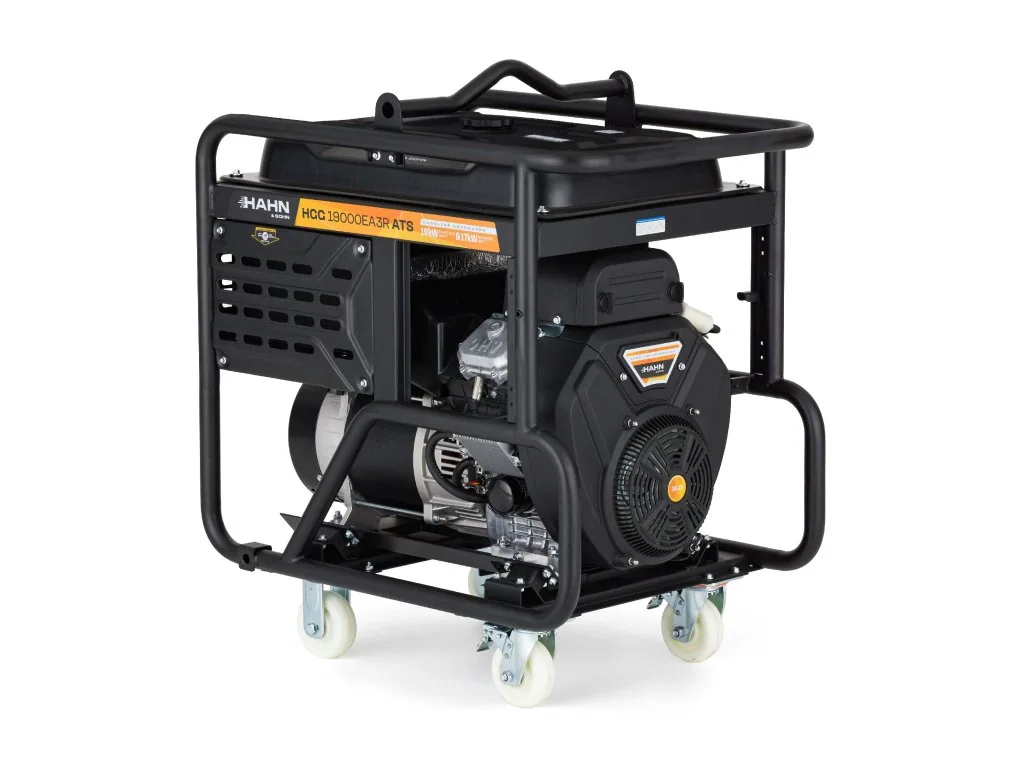

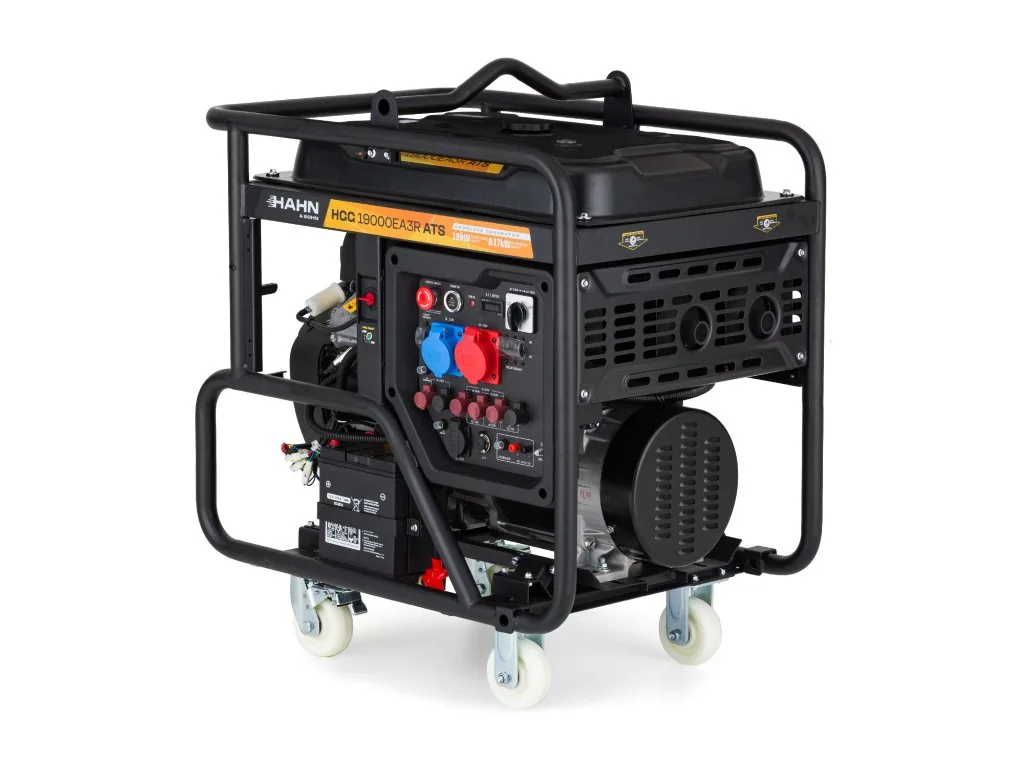

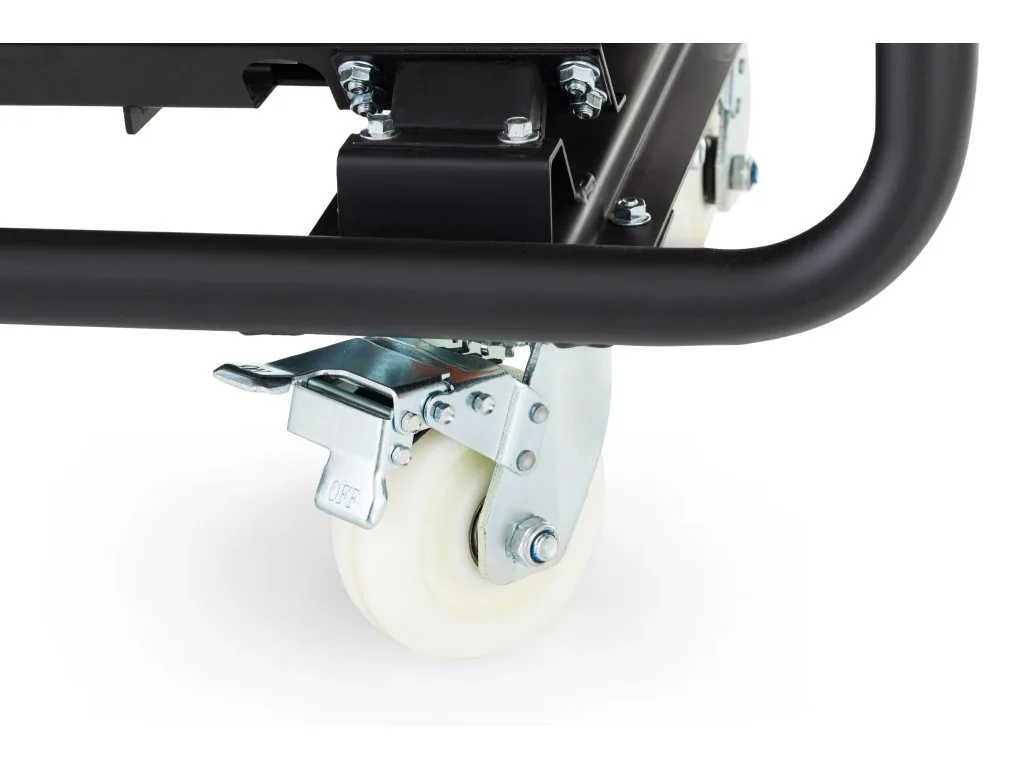

- The heavy-duty steel frame protects the unit during everyday use and also allows handling by crane thanks to the integrated lifting eye. The generator is additionally equipped with four swivel transport wheels, which make it much easier to move around a facility or construction site.
WHY CUSTOMERS CHOOSE IT
- Rated output 17 kW
- Maximum output 19 kW
- 230 V and 400 V outputs
- ATS connector for an automatic transfer switch
- Electric starting
- Automatic AVR voltage regulation
- Robust industrial frame
- Integrated lifting eye
- Four swivel transport wheels
- Professional design for long-term operation
PRACTICAL TIP
When used as a backup power source, we recommend connecting the generator to a certified ATS switchboard. The switch to backup power will then take place automatically in the event of a utility grid failure.
KEY FEATURES
- Three-phase petrol generator
- Rated output (COP): 17 kW
- Maximum output: 19 kW
- Voltage 230/400 V
- Frequency 50 Hz
- Electric starting
- ATS connector
- AVR voltage regulation
- Overload protection
- Low oil level protection
- Voltmeter

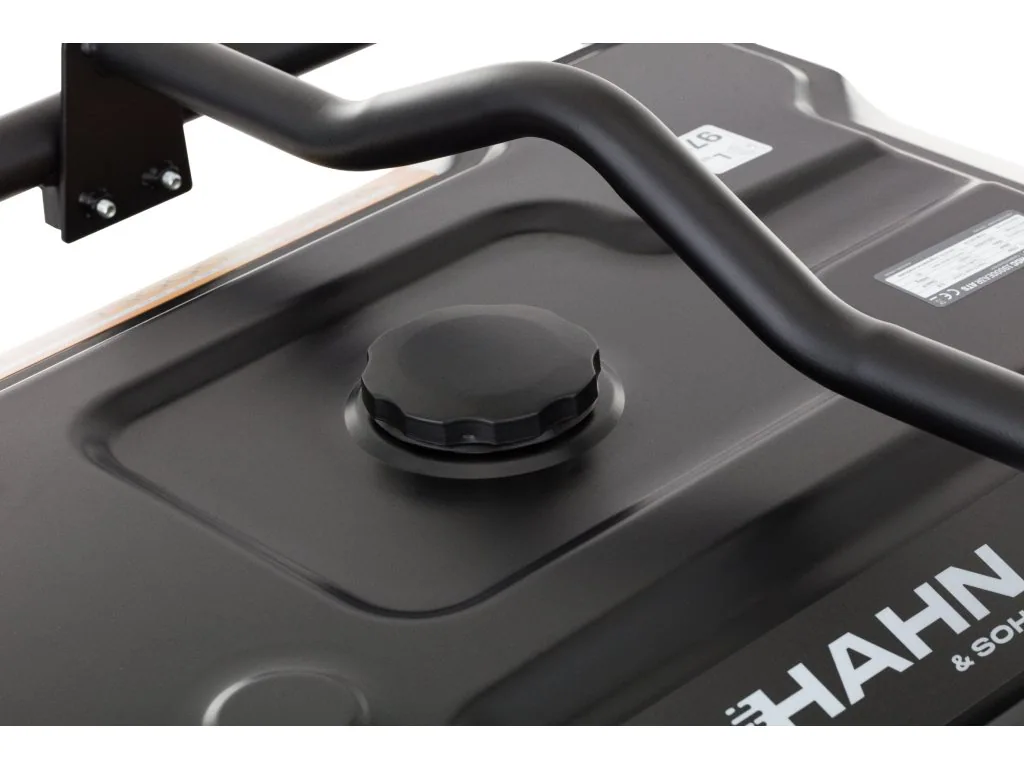

- Fuel gauge
- Transport wheels
- Lifting eye for handling
- Robust steel frame
USE / INSTALLATION / OPERATION
- Place the generator on a solid and level surface.
- Before starting, check the engine oil level and fuel quantity.
- Connect appliances only after the engine speed has stabilized.
- Do not exceed the rated output of the unit.
- When connecting to a building's electrical installation or ATS system, use the services of a qualified electrician.
- Operate the unit only outdoors or in a well-ventilated area.
Additional parameters
Technical parameters
| Category | Gasoline power generators |
| Weight | 245 kg |
| EAN | 8594210231924 |
| Model | Hahn & Sohn HGG 19000EA3R ATS |
| Fuel type | Petrol |
| Generator type | Three-phase |
| Rated power (COP) | 17 kW |
| Maximum power | 19 kW |
| Rated voltage | 230/400 V |
| Frequency | 50 Hz |
| Power factor | 0,8 |
| Rated current | 73,9 A (230 V) / 30,7 A (400 V) |
| Quality class | Class B |
| Efficiency class | G1 |
| Starting | Electric |
| Voltage regulation | AVR |
| ATS connector | Yes |
| Voltmeter | Yes |
| Fuel gauge | Yes |
| Overload protection | Yes |
| Low oil level protection | Yes |
| Dimensions (L × W × H) | 940 x 683 x 825 mm |
