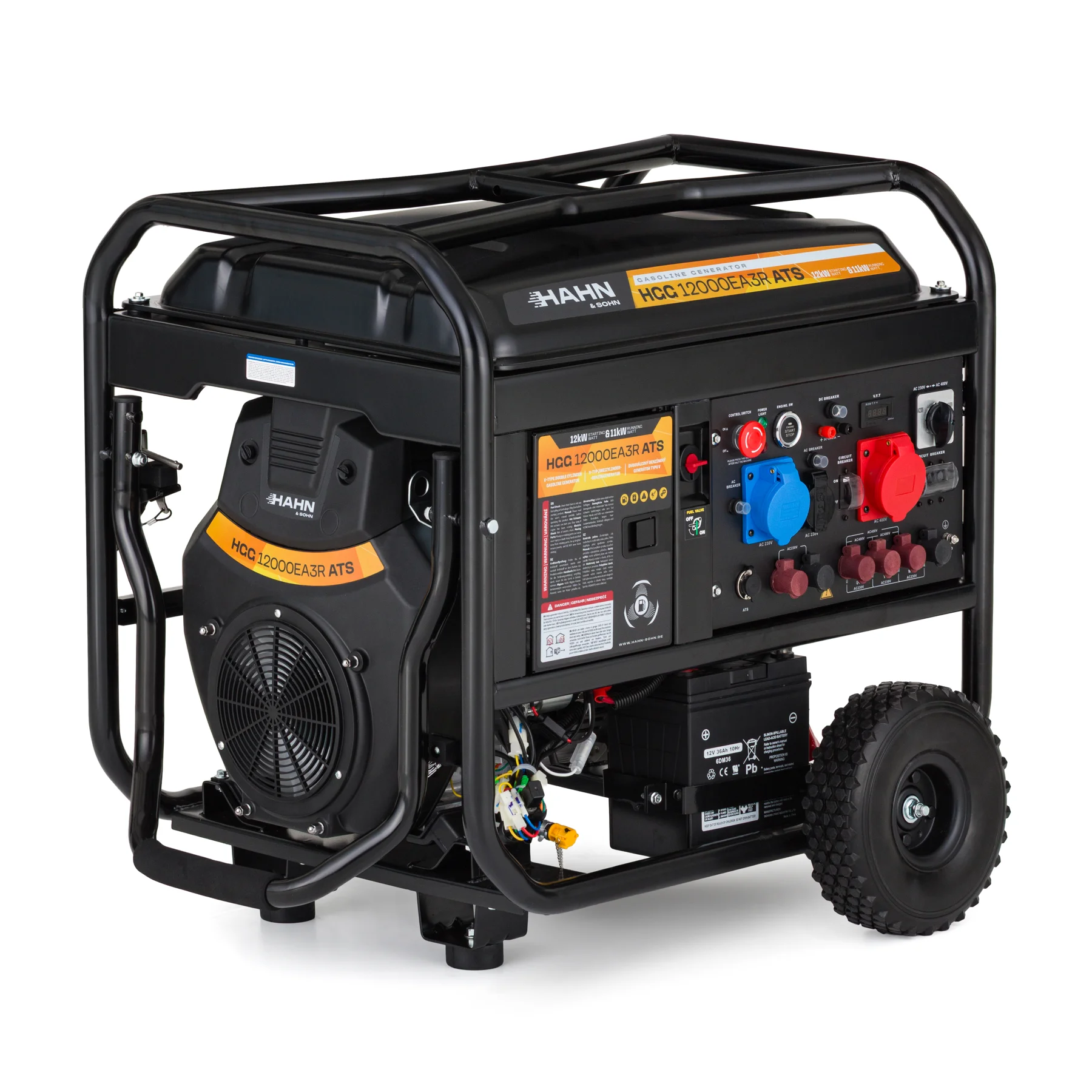

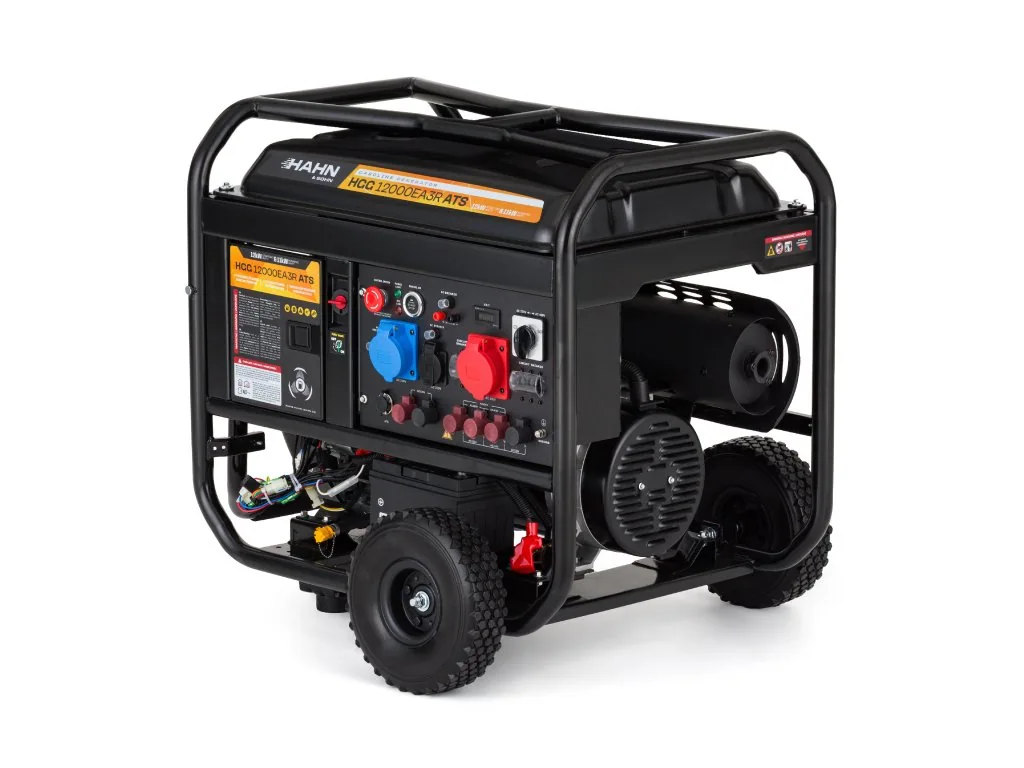

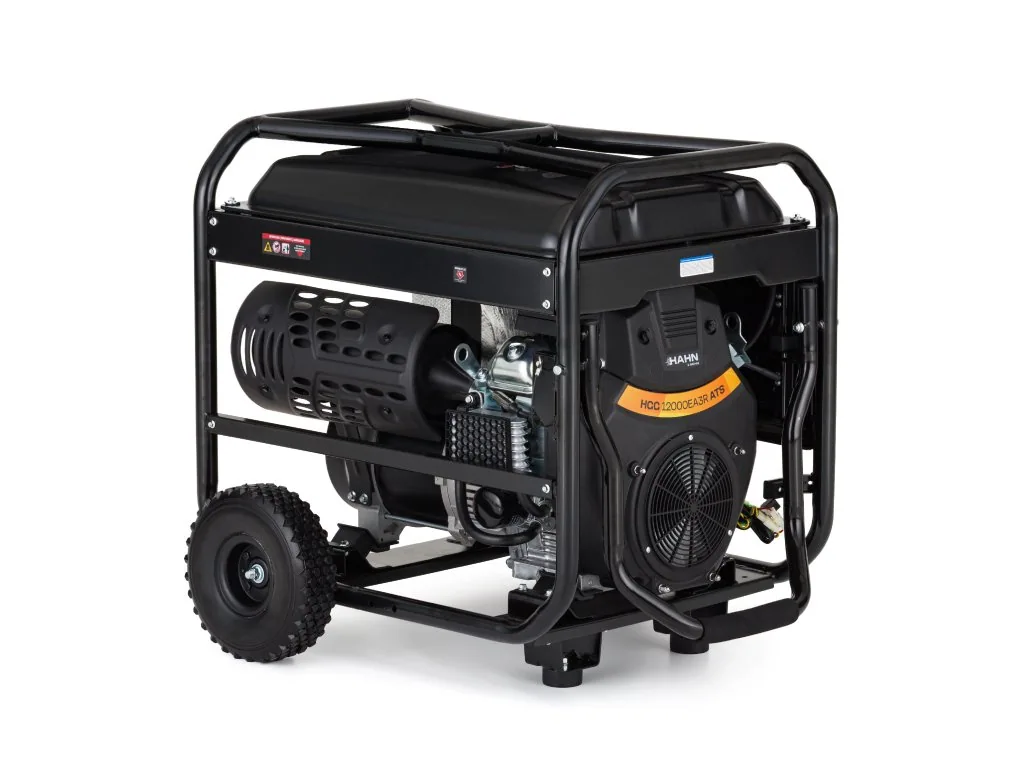

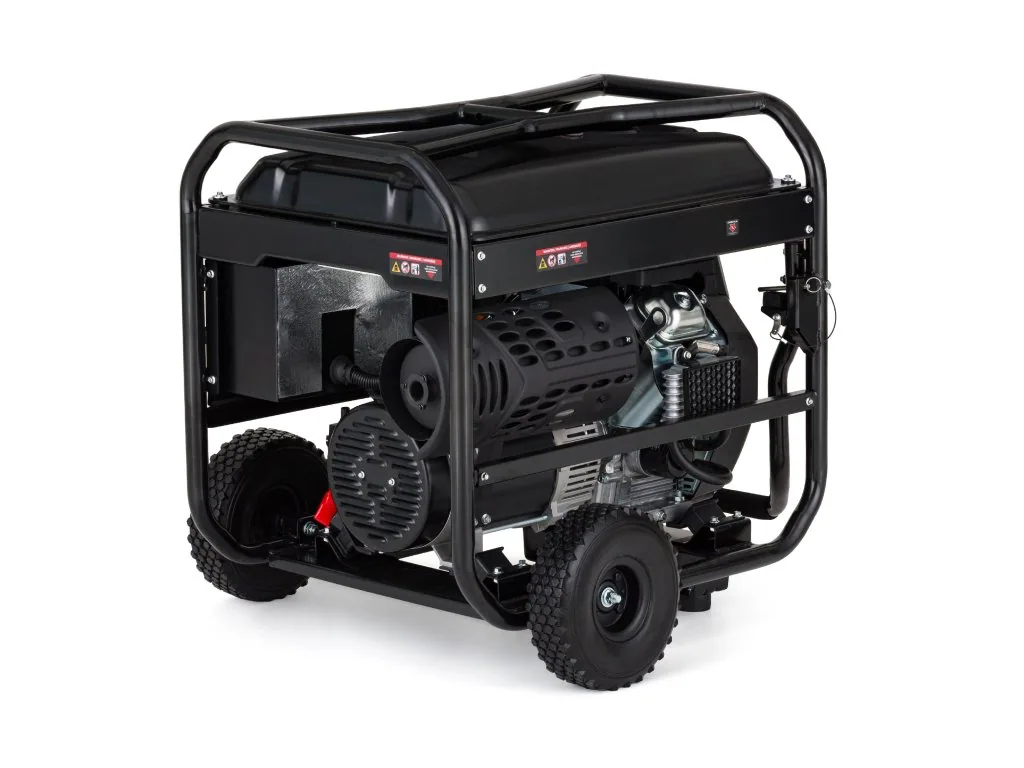

Hahn & Sohn HGG 12000EA3R ATS petrol generator, 12 kW, 230/400 V
Hahn & Sohn HGG 12000EA3R ATS petrol generator, 12 kW, 230/400 V
The powerful three-phase Hahn & Sohn HGG 12000EA3R ATS petrol generator is designed to power electrical equipment in locations without access to the utility grid and also serves as a backup power source. It offers a rated output of 11 kW, a maximum…
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
The powerful three-phase Hahn & Sohn HGG 12000EA3R ATS petrol generator is designed to power electrical equipment in locations without access to the utility grid and also serves as a backup power source. It offers a rated output of 11 kW, a maximum output of 12 kW, electric starting and an ATS connector for connecting an automatic transfer switch. Its robust construction, large fuel tank and transport wheels make it easy to use on construction sites, in businesses and at family homes.
Hahn & Sohn HGG 12000EA3R ATS is a powerful petrol generator designed to provide reliable power for both single-phase and three-phase appliances. Thanks to its 230/400 V output voltage, it can be used for standard electric tools as well as equipment requiring a three-phase power supply.
- The model is equipped with electric starting, which makes operation easier, and an ATS connector, making it ready for use with an automatic transfer switch. This allows it to be used as a backup power source wherever a higher level of operational reliability is required.

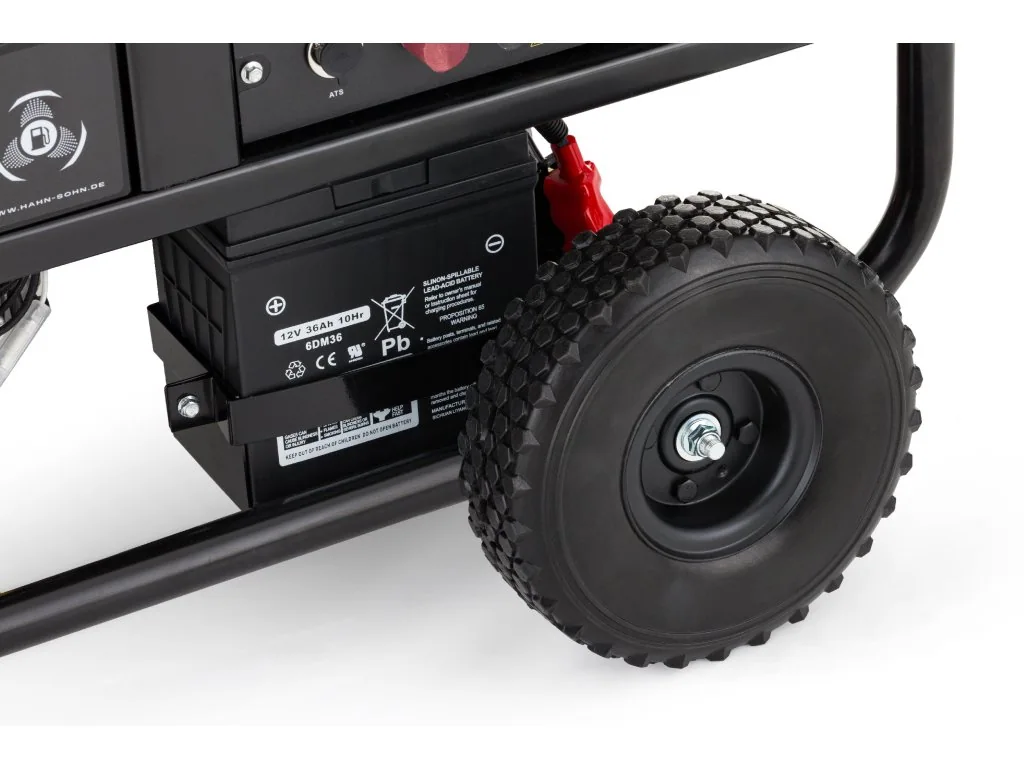

- The robust steel frame protects the generator during handling and operation. Transport wheels make it easier to move despite the higher weight of the unit, and the large fuel tank contributes to long operating time without frequent refuelling.

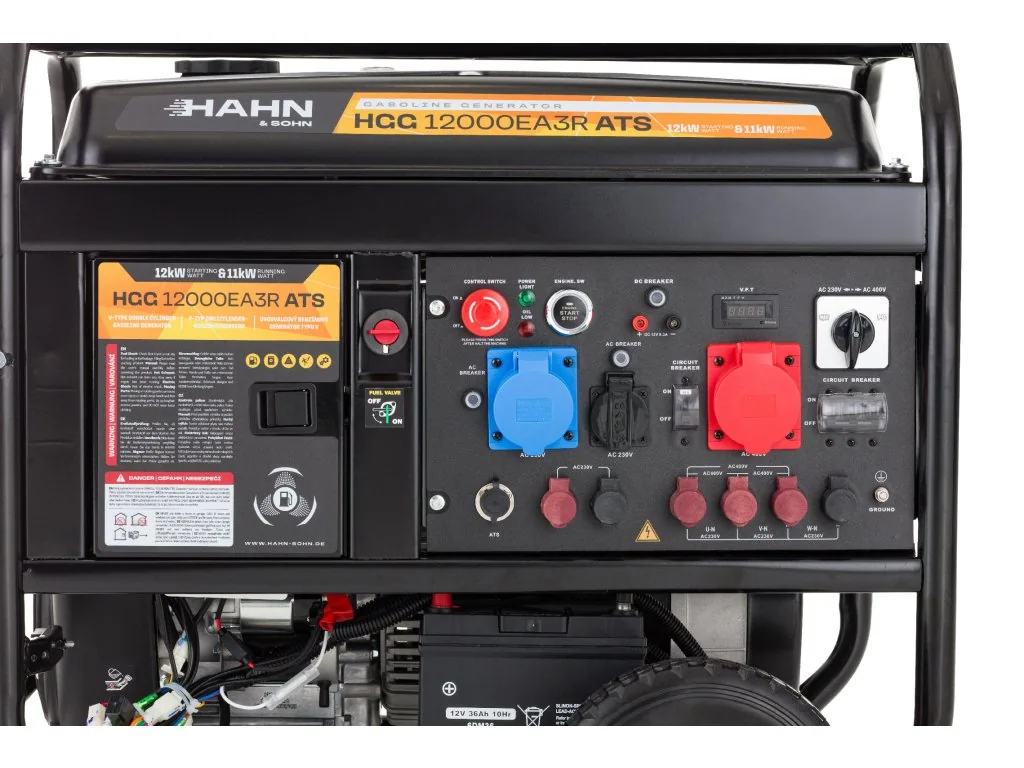

- The generator is equipped with a voltmeter, fuel gauge, automatic voltage regulation (AVR), overload protection, an oil sensor that protects the engine when the oil level is low, and an electric starter powered by the battery. These features contribute to comfortable operation as well as protection of the unit itself.
WHY CUSTOMERS CHOOSE IT
- Rated output 11 kW and maximum output 12 kW
- 230 V and 400 V outputs for a wide range of applications
- ATS connector for connecting an automatic transfer switch
- Electric starting for convenient startup

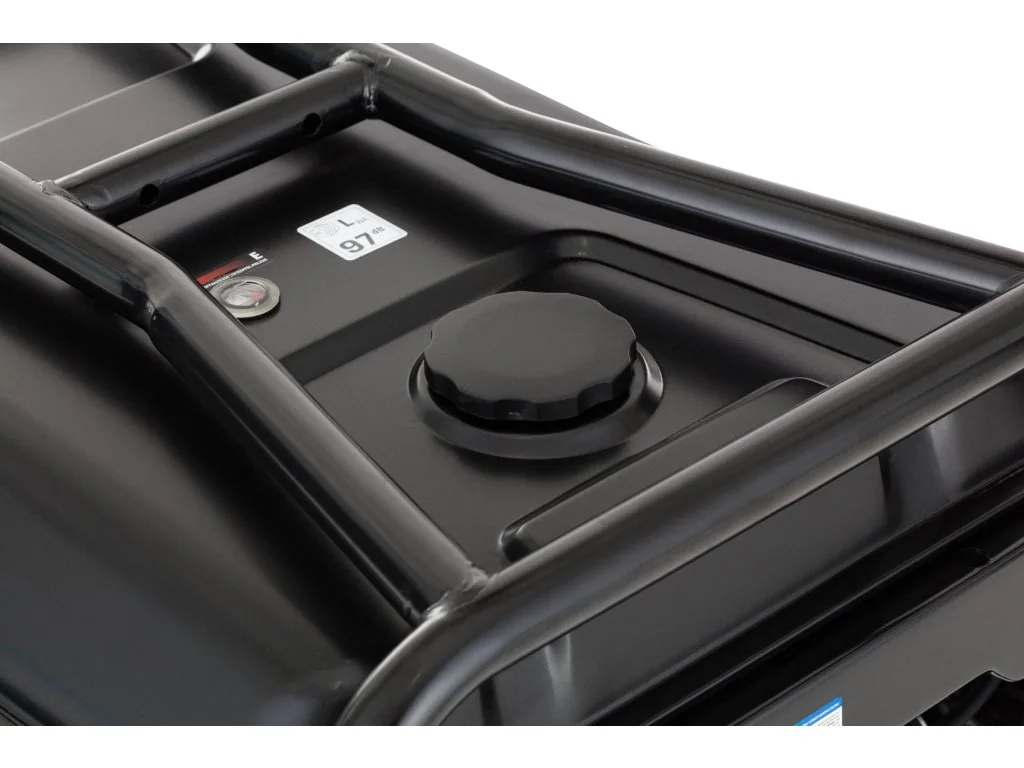

- Large 42-litre fuel tank for extended operation

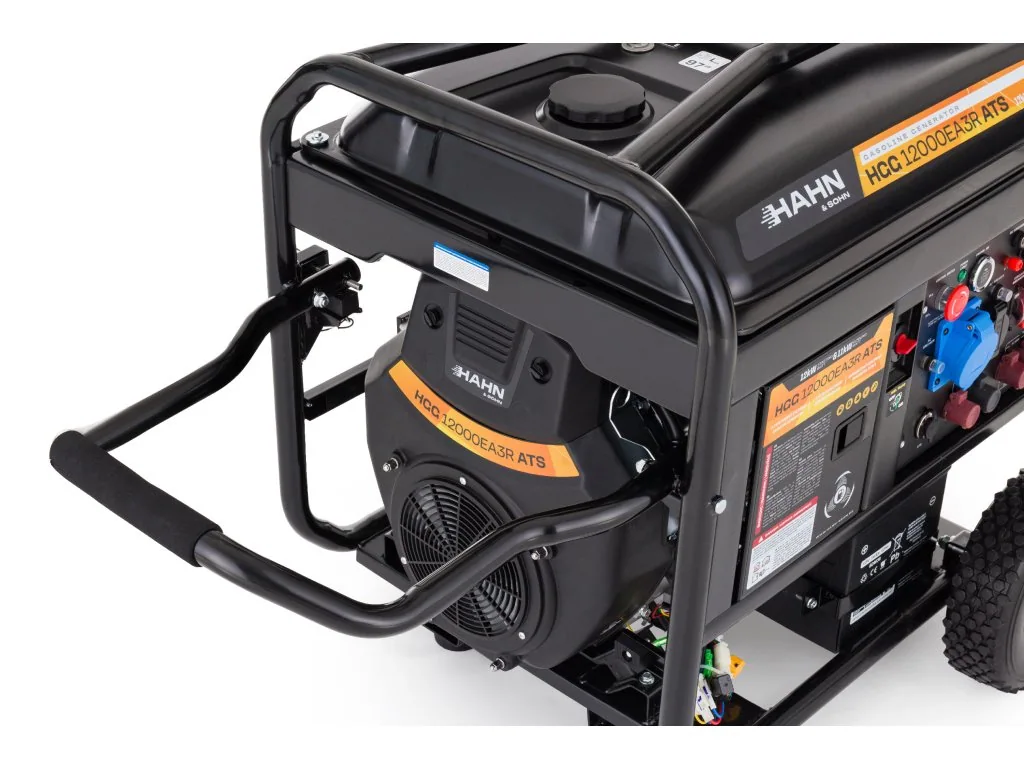

- Transport wheels and robust frame make handling easier
PRACTICAL TIP
If you plan to use the generator as a backup power source for a building, have its connection through the ATS system carried out by a qualified electrician. This will ensure safe and correct operation of the entire system.
KEY FEATURES
- Three-phase petrol generator
- Rated output (COP): 11 kW
- Maximum output: 12 kW
- Output voltage 230/400 V
- Frequency 50 Hz
- Electric starting
- ATS connector
- Automatic voltage regulation (AVR)
- Low oil level protection
- Overload protection
- Fuel gauge
- Voltmeter
- Large fuel tank
- Transport wheels
- Robust steel frame
USE / INSTALLATION / OPERATION
- Place the generator on a level and stable surface.
- Before starting, check the engine oil and fuel levels.
- Connect appliances only after the generator has been started.
- Do not exceed the rated output of the unit.
- When using ATS or connecting to a building's electrical installation, ensure professional installation by a qualified electrician.
- Use the generator only outdoors or in a well-ventilated area.
Additional parameters
Technical parameters
| Category | Gasoline power generators |
| Weight | 160 kg |
| EAN | 8594210231917 |
| Model | Hahn & Sohn HGG 12000EA3R ATS |
| Fuel type | petrol |
| Generator type | three-phase |
| Rated power (COP) | 11 kW |
| Maximum power | 12 kW |
| Rated voltage | 230/400 V |
| Rated frequency | 50 Hz |
| Power Factor | 0,8 |
| Rated speed | 3,000 rpm |
| Rated current | 47,8 A (230 V) / 19,8 A (400 V) |
| Maximum installation altitude | 1000 m |
| Maximum ambient temperature | 40 °C |
| Engine | R740(D) |

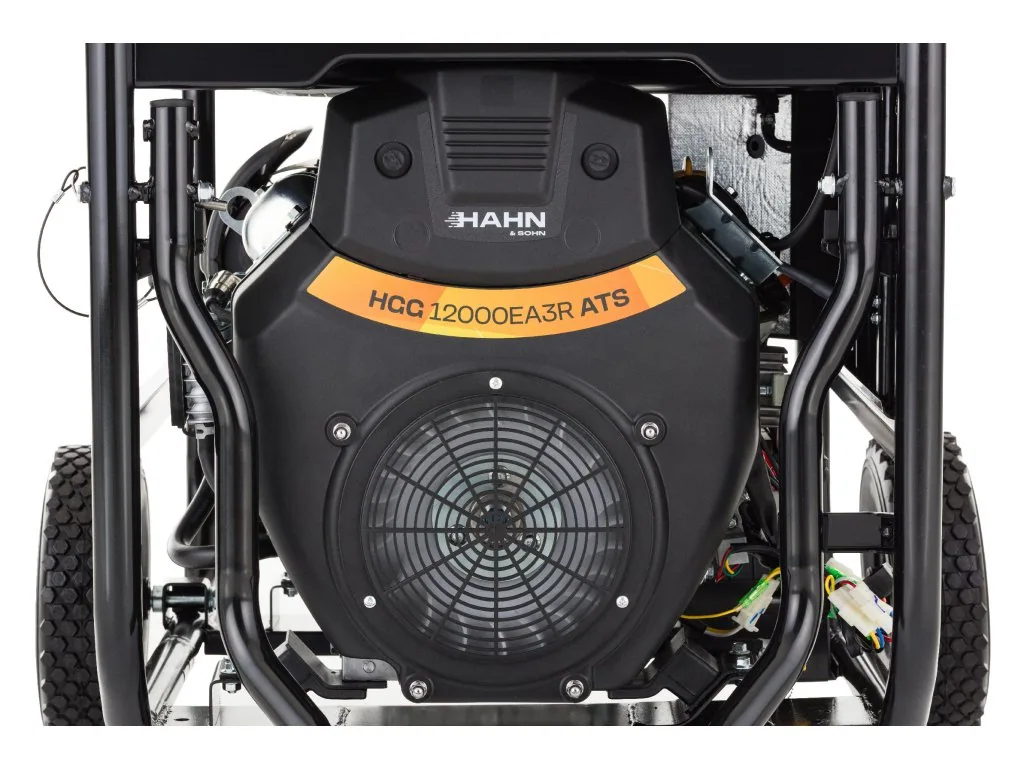

| Engine type | two-cylinder, four-stroke, air-cooled |
| Engine capacity | 739 cm³ |
| Ignition | transistor magneto |
| Fuel tank capacity | 42 l |
| Specific fuel consumption | ≤ 374 g/kWh |
| Operating hours | up to 13 hours at 50 per cent load |
| Dimensions (L × W × H) | 825 × 656 × 827 mm |
| Starting | electric |
| Voltage regulation | AVR |
| Oil sensor | yes |
| Voltmeter | yes |
| Fuel gauge | yes |
| Circuit breaker | yes |
| ATS connector | yes |
