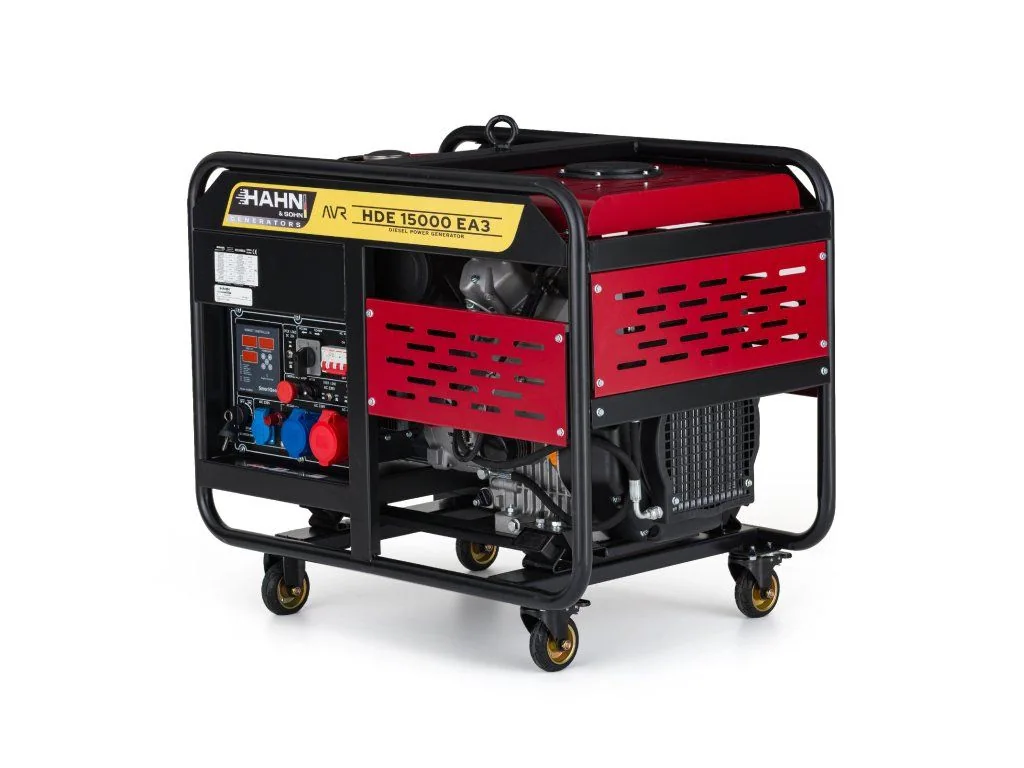

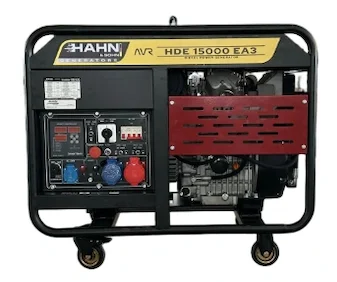

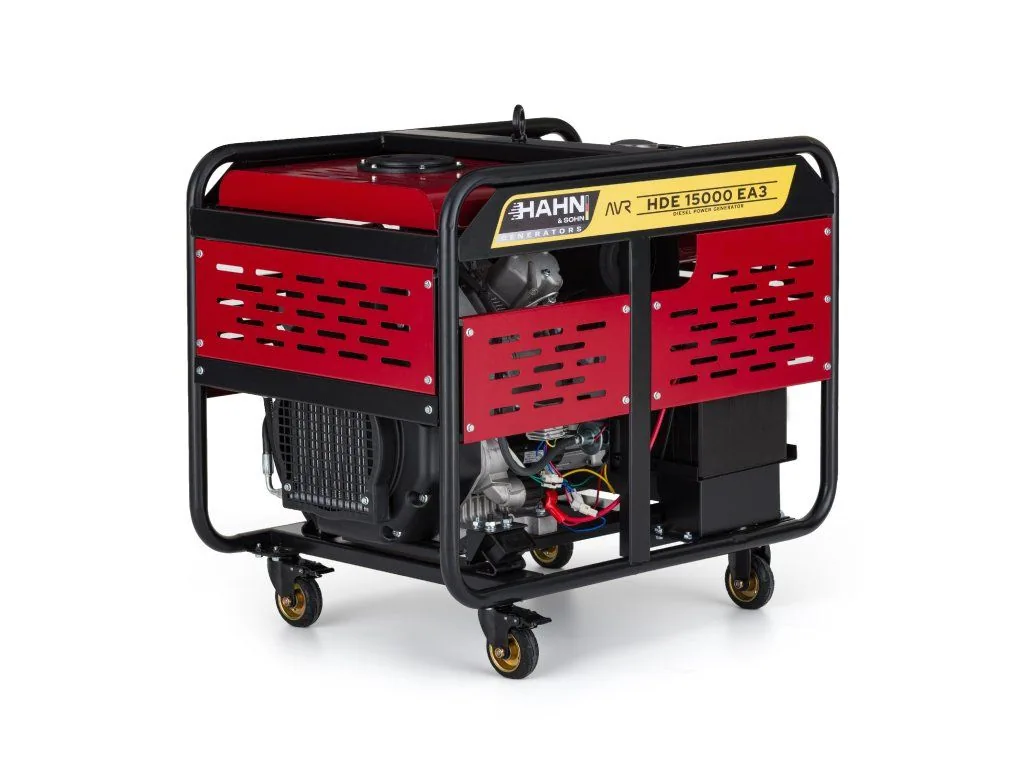

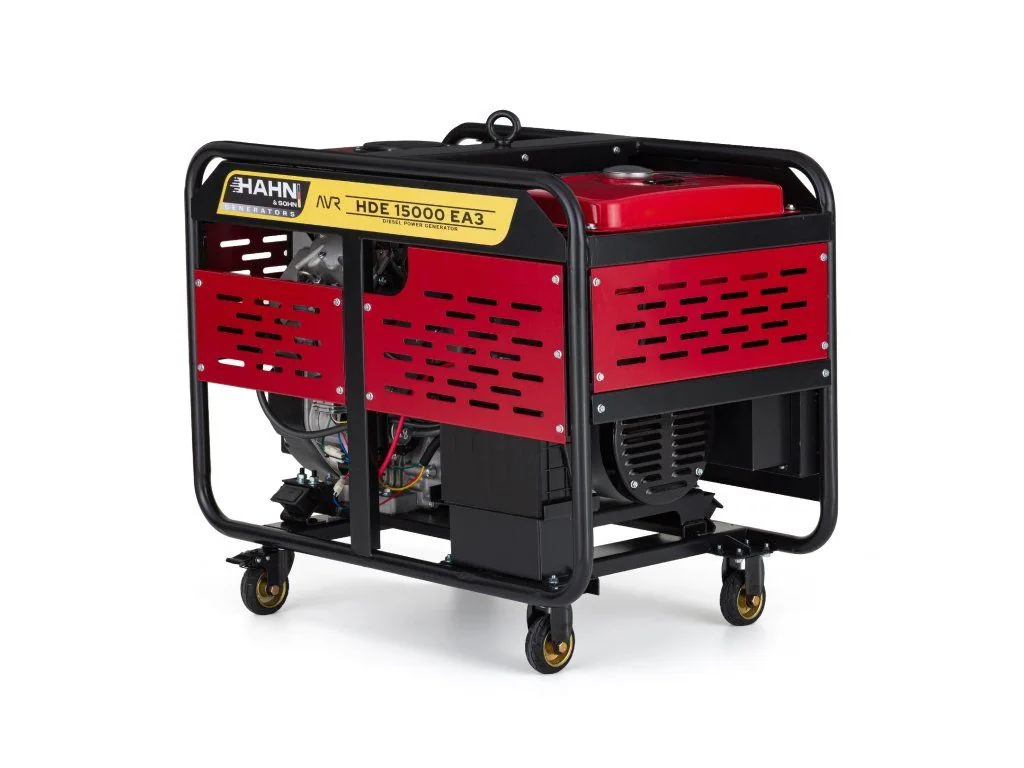

Hahn & Sohn HDE 15000EA3 diesel generator

The Hahn & Sohn HDE 15000EA3 diesel generator is designed for demanding working conditions where reliability, power, and easy servicing are essential. The open-frame construction ensures high mechanical durability and easy access to all service points.

• The generator allows single-phase and three-phase operation with voltage switching 230 / 400 V. In single-phase operation (230 V), it delivers a maximum output of 11.0 kW (current 47.8 A), while in three-phase operation (400 V) it reaches up to 12.0 kW (current 17.3 A).
• Power is provided by a twin-cylinder, four-stroke, air-cooled diesel engine, optimized for long-term operation and low fuel consumption. Electric starting with a battery ensures convenient start-up, while AVR voltage regulation protects connected equipment from voltage fluctuations.
• Thanks to its performance, the HDE 15000EA3 is an ideal choice for construction sites, workshops, industrial operations, agriculture, and as a backup power source.

Key features

• High output for professional use

• Maximum output 11.0 kW (230 V) / up to 12.0 kW (400 V)

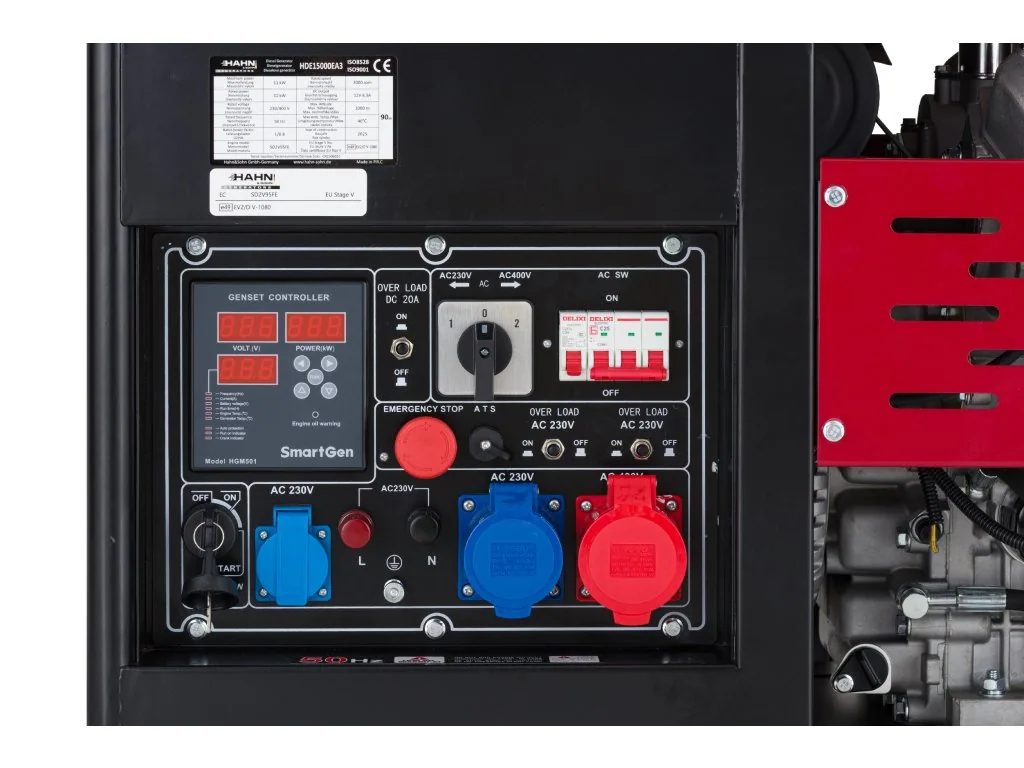

• Voltage selector (VTS) 230/400 V

• Twin-cylinder four-stroke diesel engine SD2V92

• Electric start

• Alternator with AVR – stable voltage output

• Open-frame construction

• Low fuel consumption

• Easy maintenance and servicing

• Robust steel frame with vibration protection

• Suitable for construction sites, workshops, industry, and backup power supply

Applications

• Construction

• Industrial operations

• Workshops and production halls

• Agriculture

• Backup power supply

Warning

The product is supplied without engine oil and fuel.

Before first start-up, fill with SAE 10W-30 oil and diesel fuel according to EN 590.

First oil change after 50 operating hours, then every 100 hours.

Always check the oil level before starting.
