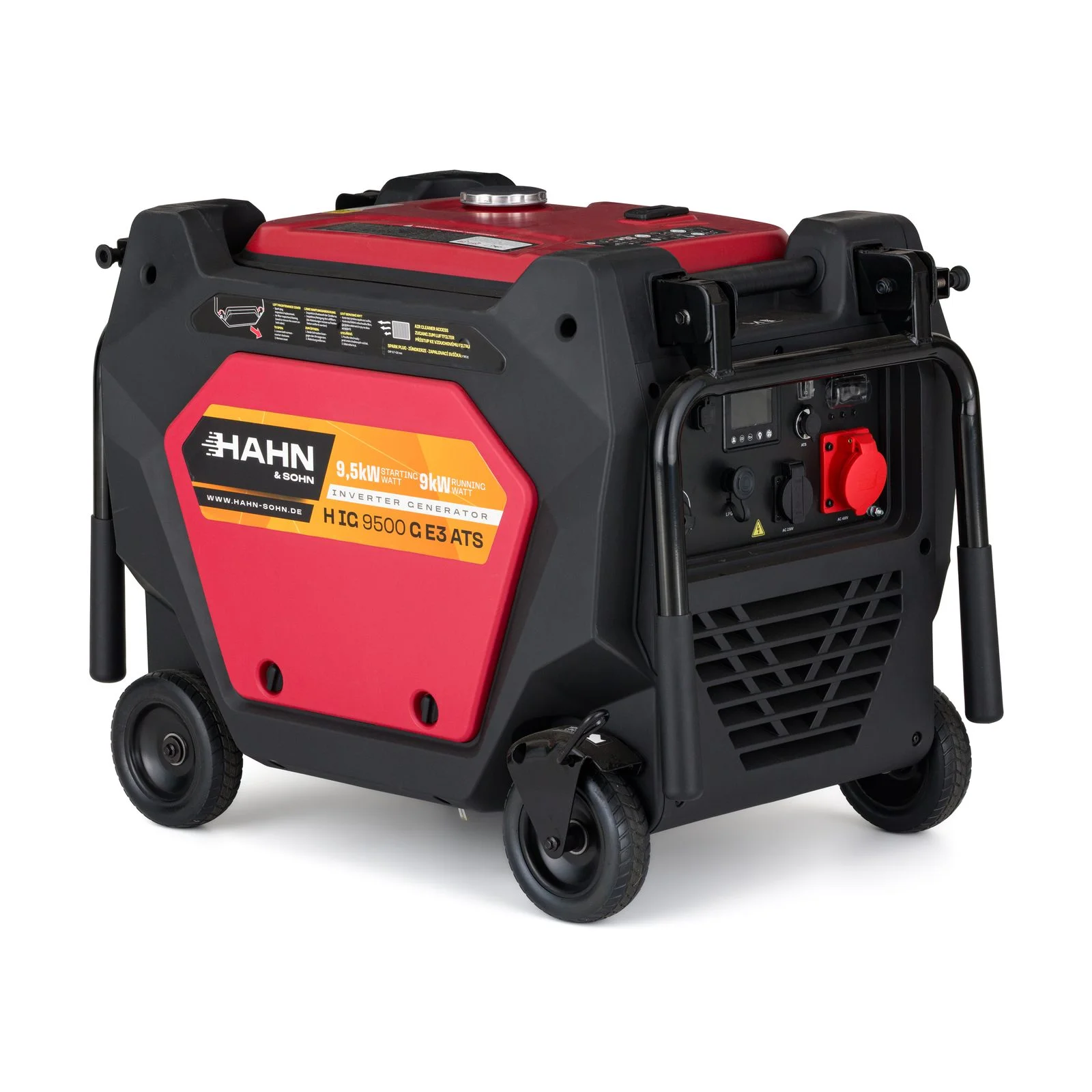

Hahn & Sohn H IG 9500 G E3 ATS Inverter Generator
Hahn & Sohn H IG 9500 G E3 ATS Inverter Generator
Powerful inverter generator with a maximum output of up to 9.5 kW, suitable for backup power supply as well as demanding applications. The model is ready for ATS connection (not included in the package). It allows operation on both petrol and LPG, increasing…
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Powerful inverter generator with a maximum output of up to 9.5 kW, suitable for backup power supply as well as demanding applications. The model is ready for ATS connection (not included in the package). It allows operation on both petrol and LPG, increasing flexibility of use.
The Hahn & Sohn H IG 9500 G E3 ATS generator is designed for situations where a reliable source of electrical power with sufficient output is required. Thanks to inverter technology, it provides stable output voltage, which is also suitable for more sensitive devices.
- The unit is structurally prepared for ATS connection, enabling automatic start in the event of a power outage. However, the ATS unit itself is not included in the package and must be purchased separately according to the specific installation.
- A major advantage is the option to operate on both petrol and LPG, allowing flexibility depending on fuel availability or operating costs. Thanks to the large fuel tank (29.8 l) and reasonable consumption, the generator is also suitable for extended operation.
- The design focuses on easy handling – the generator is equipped with wheels and handles, making transportation easier. The control panel is clear and allows simple operation and monitoring.
- The package also includes practical accessories for immediate operation, including adapters, tools, and an LPG hose with regulator.
WHY CUSTOMERS CHOOSE IT
- High output up to 9.5 kW for demanding use
- Prepared for ATS (automatic backup)
- Operation on petrol and LPG
- Long runtime thanks to large tank (29.8 l)
- Stable voltage suitable for electronics
- Mobile design with wheels
PRACTICAL TIP
If you plan to use the generator as a backup power source for a house, consider purchasing an ATS unit and professional installation to ensure automatic and safe operation.
KEY FEATURES
- inverter generator
- maximum output up to 9.5 kW (petrol)
- rated output 9.0 kW (petrol)
- LPG output: up to 8.55 kW
- voltage 230 / 400 V
- frequency 50 Hz
- consumption at 50% load: 2.97 l/h
- runtime at 50% load: 10.07 h
- tank capacity: 29.8 l
- electric and manual start
- ATS ready (ATS not included)
USAGE / INSTALLATION / OPERATION
- place the generator on a flat surface
- fill with oil and fuel
- connect appliances or distribution system
- ensure professional wiring if using ATS
- start the unit using electric start
PACKAGE CONTENT
- LPG hose with regulator
- set of wrenches
- screwdriver
- assembly tools (spark plug wrench, etc.)
- reducers / adapters (230 V / 400 V)
❗ The ATS unit and gas cylinder are not included (must be purchased separately)
IMPORTANT NOTICE
The generator is ATS ready, but the ATS unit is not included and must be purchased separately.
Additional parameters
Technical parameters
| Category | Inverter Generators |
| Warranty | 2 years |
| Weight | 105 kg |
| EAN | 8594210231900 |
| Maximum power | 9,5 kW (gasoline) |
| Rated power | 9,0 kW (gasoline) |
| LPG Power | 8.55 kW max. / 8.1 kW rated |
| Voltage | 230 / 400 V |
| Frequency | 50 Hz |
| Rated current | 13 A / 16,2 A |
| DC output | 12 V / 8,3 A |
| RPM | 3,800 rpm |
| Engine displacement | 500 cm³ |
| Fuel tank capacity | 29,8 l |
| Oil capacity | 1,2 l |
| Power consumption (50% load) | 2,97 l/h |
| Operating hours (50% load) | 10,07 |
| Noise level (4 m) | 97 dB |
| Starting | electric / manual |
| Max. temperature | 40 °C |
| Maximum elevation | 1000 m |
