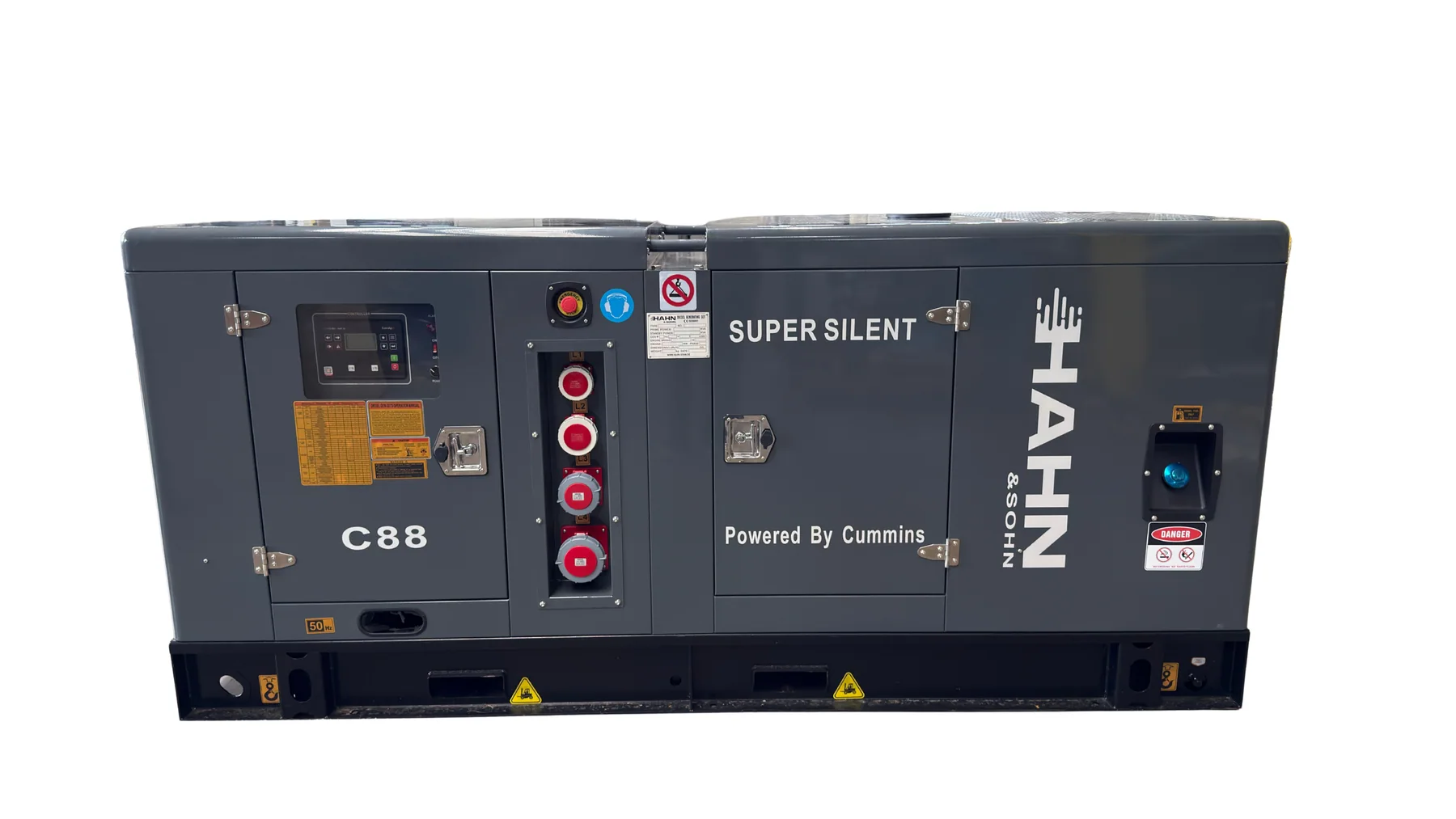

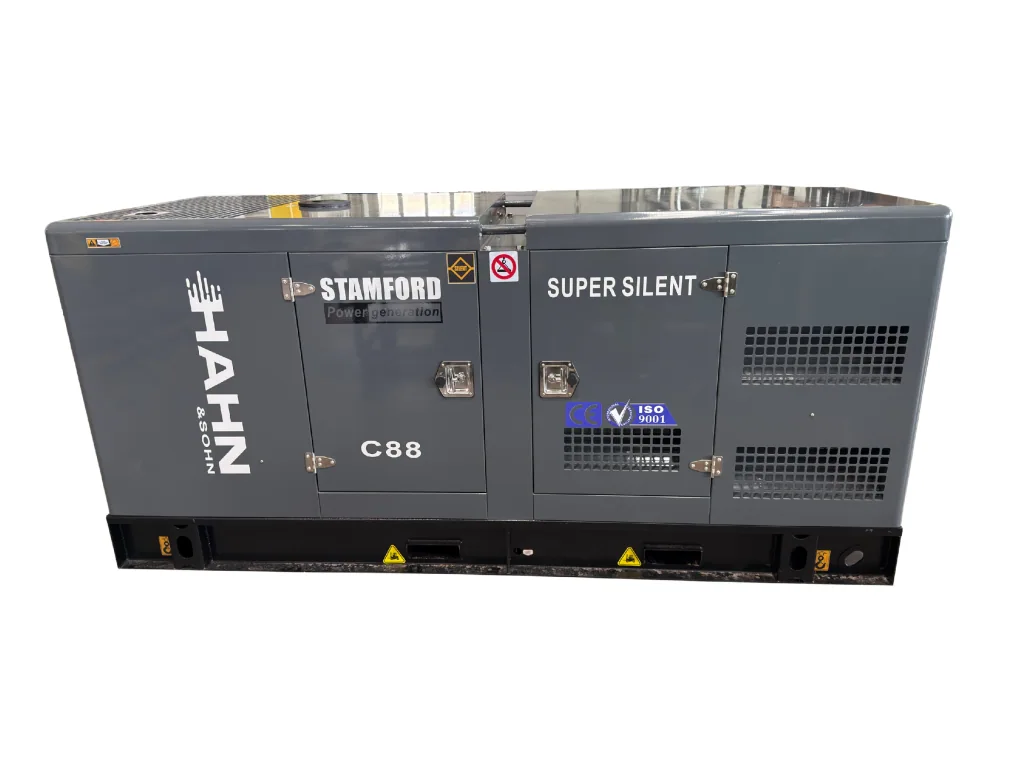

Hahn & Sohn C88 diesel generator

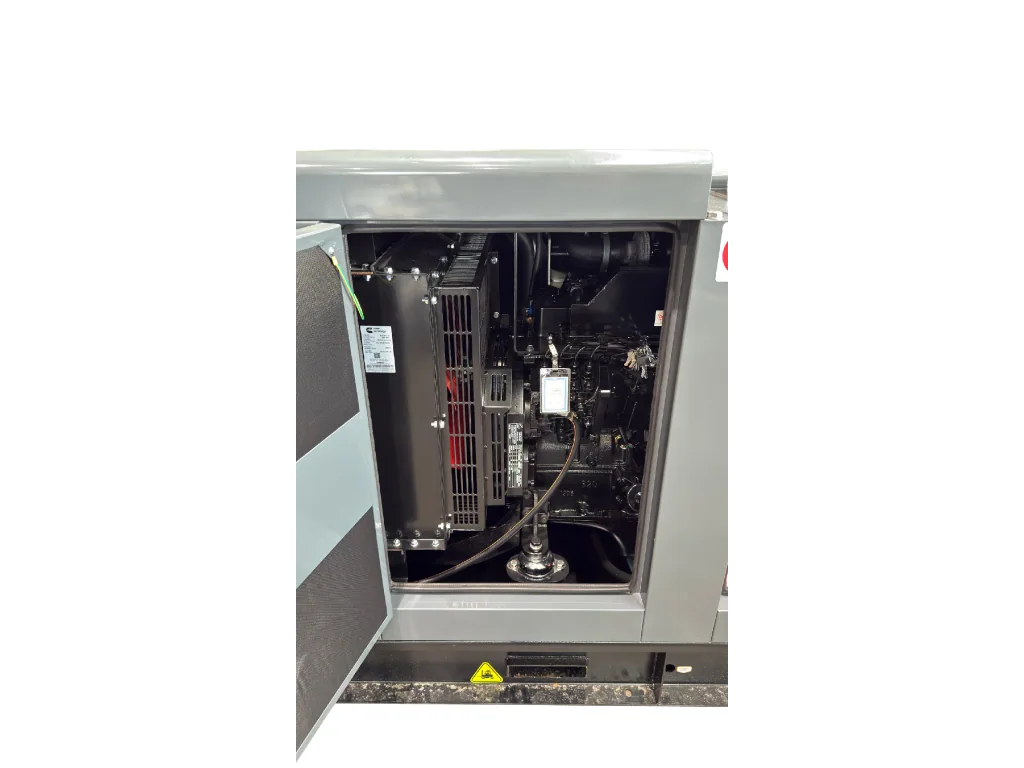

C88 is a diesel generator for commercial premises, construction sites, and backup power applications where three-phase 400 V / 50 Hz power is required (the alternator is designed for 230/400 V). The Cummins 4BTA3.9-G11 engine has 4 cylinders and a displacement of 3.9 l, is turbocharged with charge air cooling, and runs at a rated speed of 1,500 rpm. Engine speed is controlled by an electronic governor.

• The electrical section consists of a single-bearing Stamford UCI224G alternator with brushless self-excitation, IP 23 protection, class H insulation, and voltage regulation accuracy of ±0.5%. The alternator has 12 leads.
• Control is provided by the ComAp InteliLite 4 AMF25 with a 7-digit display, integrated speed governor and AVR. The controller monitors generator output (kW, kVA), protects against overload, monitors start failure, and enables emergency shutdown.

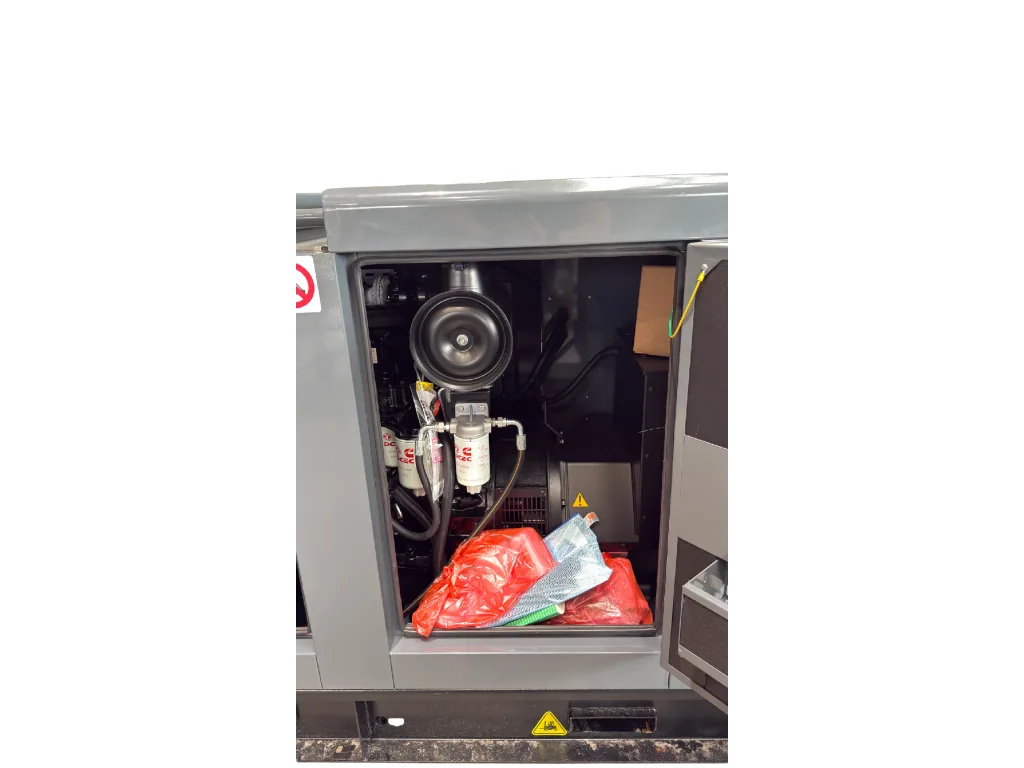

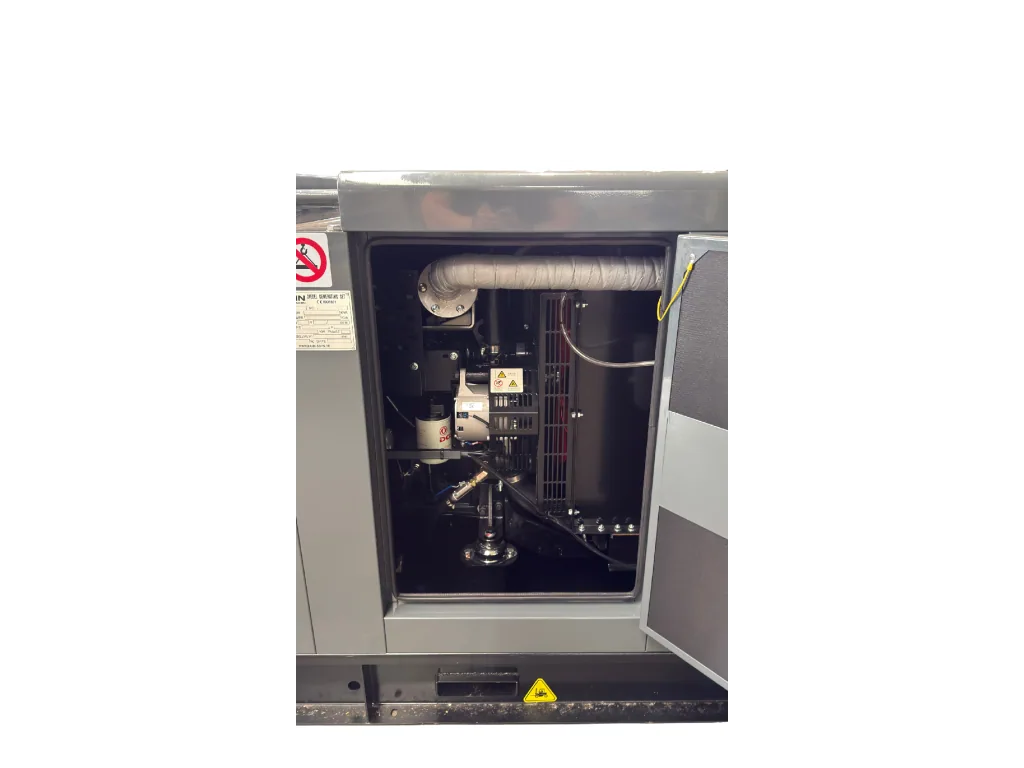

• Diesel fuel is filled into the 160 l tank integrated into the frame. Fuel consumption at continuous output is 17.6 l/h at 100%, 13.2 l/h at 75%, 9.1 l/h at 50%, and 5.3 l/h at 25% load. Based on the tank capacity, the operating time is approximately 9.1 hours at 100% load. The machine is equipped with a fuel filter, oil filter, and air filter, main circuit breaker, and exhaust system with silencer.

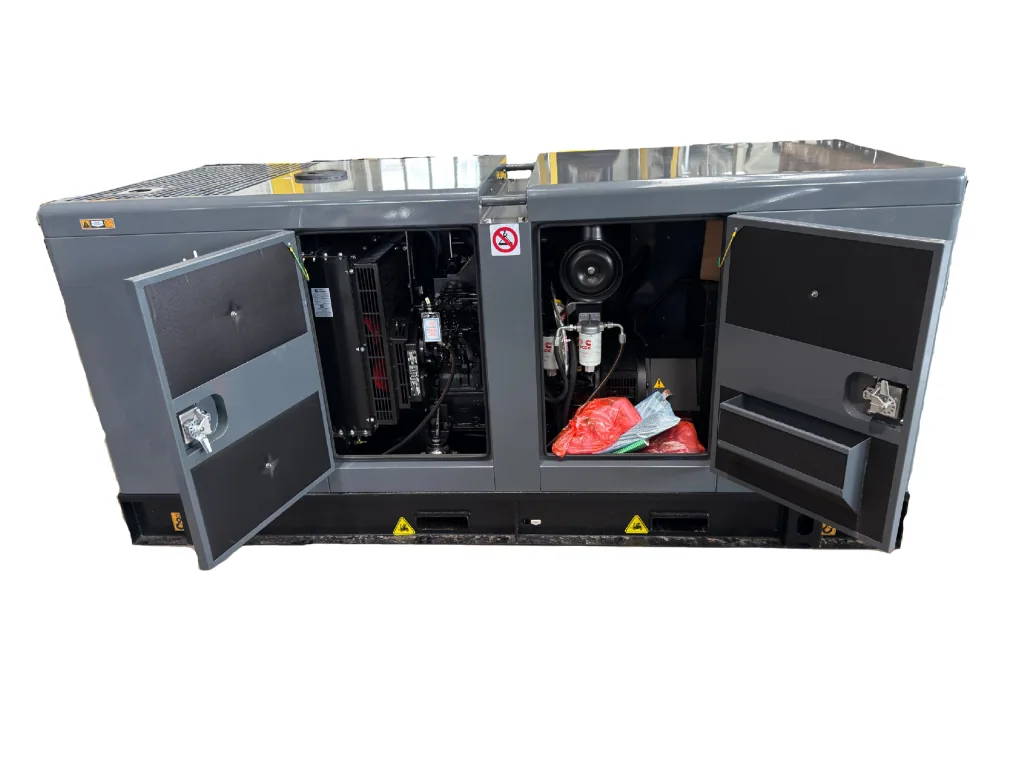

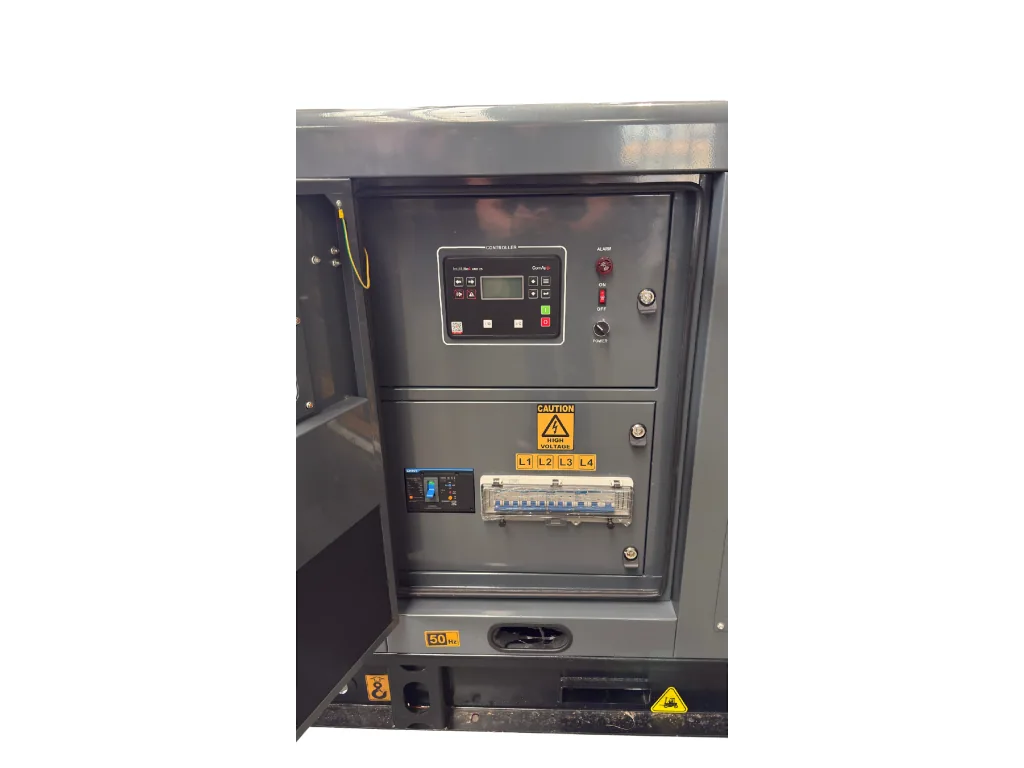

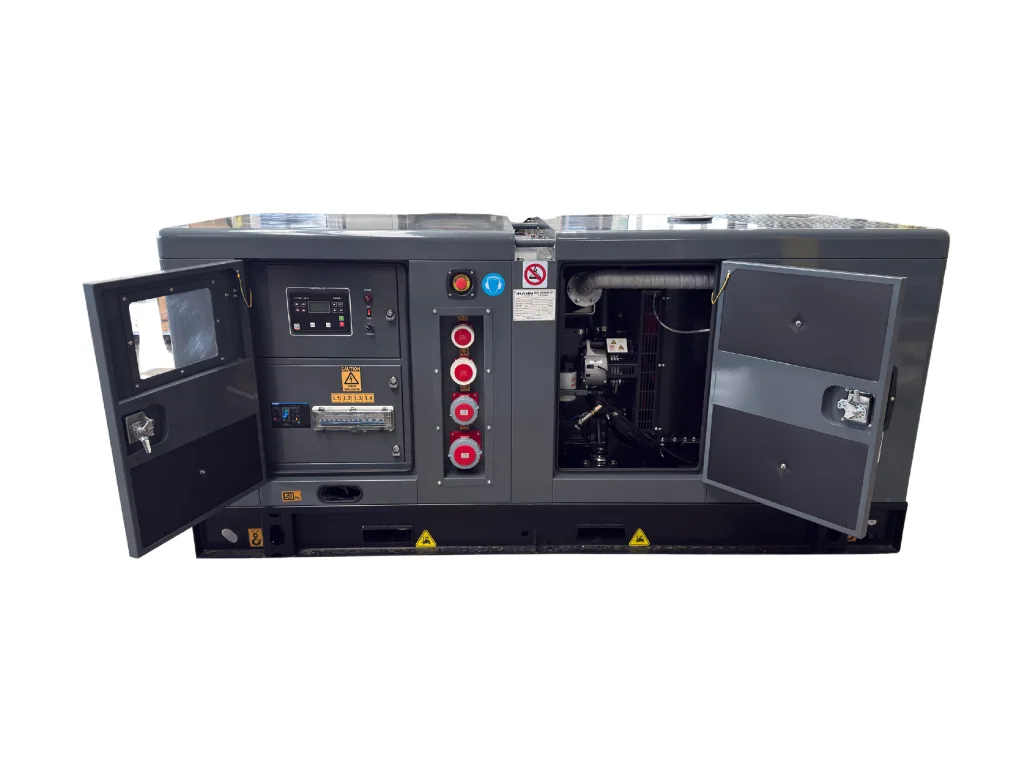

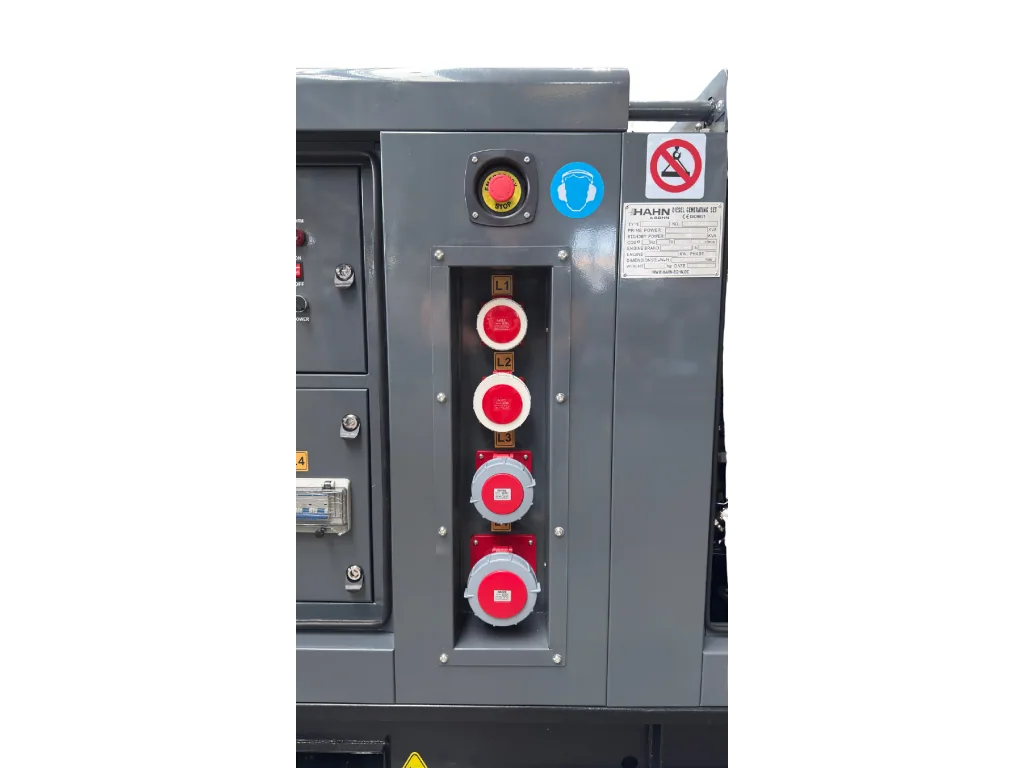

• Directly on the machine are four industrial three-phase sockets mounted on a common rail and labelled L1-L4. The switchboard contains a main CHINT 160 A four-pole circuit breaker with leakage current protection and a set of circuit breakers for the individual outputs. The control panel is located behind a transparent window, and the enclosure is fitted with an emergency stop button. Diesel fuel is filled through a filler neck on the side of the enclosure. The enclosure is secured with locks, and the engine compartment is accessible from both sides. The base frame has forklift pockets.

Why customers choose it

• Cummins engine and Stamford alternator - branded components.
• Three-phase 400 V output with 80 kVA (prime) / 88 kVA (standby) output.
• Sound-insulated enclosure - 72 dB at 7 m.
• 160 l tank integrated into the frame - approximately 9.1 hours of operation at 100% load.
• ComAp AMF25 controller with display and protection functions.
• Industrial sockets directly on the machine and a circuit breaker with leakage current protection
• 12-month or 1,000 operating-hour warranty on both the engine and alternator (whichever occurs first).

Practical tip

When planning the installation location, allow for a weight of 1,310 kg and dimensions of 2,750 x 1,050 x 1,250 mm. Electrical connection to the mains and any automatic transfer system should be installed by a qualified electrician.

Key features

• Output 80 kVA / 64 kW (prime), 88 kVA / 70 kW (standby)
• Fuel: diesel, 160 l tank
• Voltage 400 V, 50 Hz, three-phase, rated current 115 A
• Cummins 4BTA3.9-G11 engine, 4 cylinders, 3.9 l, turbocharged with charge air cooling
• Stamford UCI224G alternator, IP 23, class H insulation, AVR ±0.5%
• ComAp InteliLite 4 AMF25 controller, 7-digit display
• Noise level 72 dB at 7 m
• 160 A main circuit breaker, four sockets on the machine, emergency stop button
• Warranty 12 months / 1,000 hours

Use / Installation / Operation

• Designed for operation on diesel fuel.
• The machine is supplied as one complete unit on a frame designed for forklift handling.
• Connection to the electrical mains must be carried out by a qualified electrician.
• The installation, operating, and maintenance manual (safety instructions, installation, handling, commissioning, battery maintenance) is available for download from the product page.
• Fluid capacities: engine oil 10.9 l, coolant (engine only) 8.3 l.
