Hahn & Sohn ATS 6 kW / 10 A - indoor
Hahn & Sohn ATS 6 kW / 10 A - indoor
Automatic Transfer Switch (ATS) Hahn & Sohn 6 kW / 10 A is designed for automatic switching of the power supply between the utility grid and a generator in the event of a power outage. It ensures a fully automatic start of the generator, load transfer, and subsequent automatic…
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Automatic Transfer Switch (ATS) Hahn & Sohn 6 kW / 10 A is designed for automatic switching of the power supply between the utility grid and a generator in the event of a power outage. It ensures a fully automatic start of the generator, load transfer, and subsequent automatic return to the grid once power is restored, without the need for operator intervention.
Hahn & Sohn ATS 6 kW / 10 A is designed for reliable automatic control of generator operation in backup power systems. In the event of a power outage, the unit automatically sends a signal to start the generator, switches the building power supply to the generator once the voltage is stabilized, and safely switches back to the grid after power is restored.

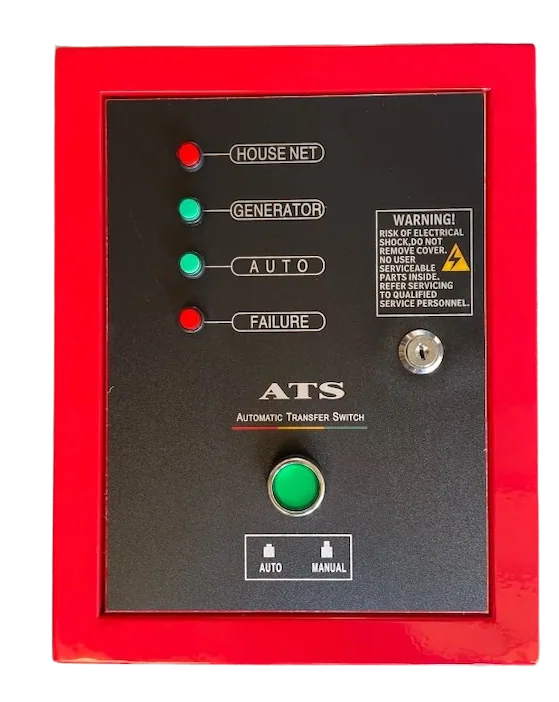

- The unit is equipped with a clear control panel with LED status indicators (grid, generator, automatic mode, fault) and allows both automatic and manual operating modes. The robust metal design ensures long service life and safe operation even in more demanding conditions.
- The ATS is specifically designed for diesel generators with electric start and a compatible control connector.
Key Features
-
Automatic switching between the grid and the generator
-
Automatic generator start and stop
-
Power up to 6 kW
-
Rated current 10 A
-
Automatic and manual mode
-
LED system status indication
-
Protection against backfeed
-
Integrated generator battery charger
-
Compact steel enclosure
Compatibility
- Diesel generator Hahn & Sohn HDE 9300SS3
Additional parameters
Technical parameters
| Category | Accessories for power generators |
| Warranty | 2 roky |
| Weight | 8 kg |
| Device type | Automatic Transfer Switch (ATS) |
| Compatibility | Hahn & Sohn HDE 9300SS3 diesel generator |
| Rated current | 10 A |
| Control voltage | 230 / 400 V |
| Frequency | 50 Hz |
| Operating modes | Automatic / manual |
| Controlling the power generator | Start / Stop |
| Status indication | LED indicator lights |
| Charging the generator battery | Yes (integrated) |
| Construction | Metal cabinet |
| Assembly | Wall-mounted, indoor |
