Hahn & Sohn ATS 15 kW / 32 A - indoor
Hahn & Sohn ATS 15 kW / 32 A - indoor
Automatic Transfer Switch (ATS) Hahn & Sohn 15 kW / 32 A is designed for fully automatic switching of the power supply between the utility grid and a generator in the event of a power outage. An ideal solution for backup power supply of buildings with higher energy demand
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Automatic Transfer Switch (ATS) Hahn & Sohn 15 kW / 32 A is designed for fully automatic switching of the power supply between the utility grid and a generator in the event of a power outage. An ideal solution for backup power supply of buildings with higher energy demand.
Hahn & Sohn ATS 15 kW / 32 A (Automatic Transfer Switch) is designed for fully automatic operation of diesel generators. In the event of a power outage, the unit automatically sends a signal to start the generator, safely switches the building’s power supply to the generator after it starts, and once the grid is restored, automatically switches the entire system back.
- The ATS control unit continuously monitors the status of both the grid and the generator. Switching takes place without the need for operator intervention, with an emphasis on safety and protection of connected equipment.

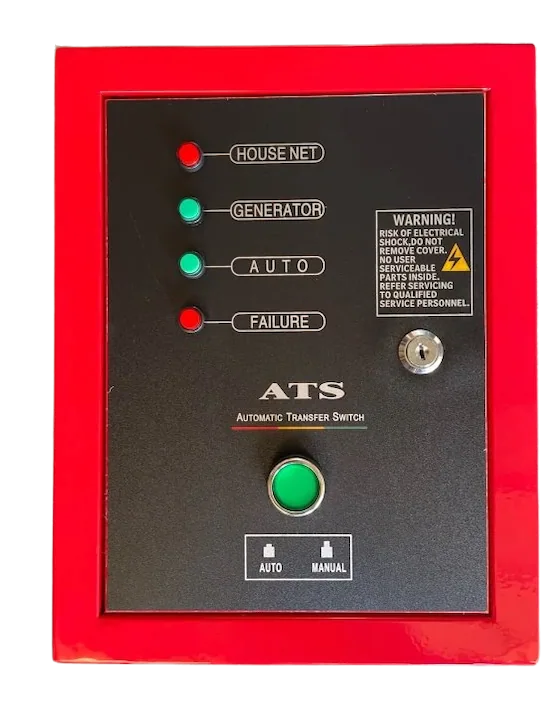

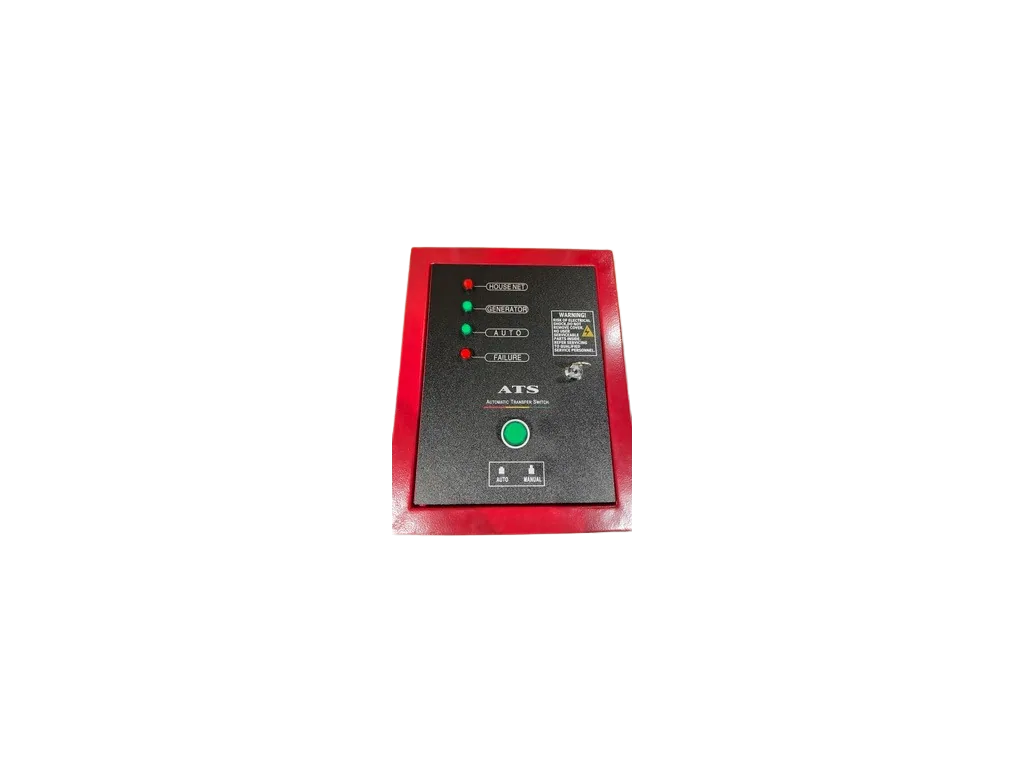

- A robust steel enclosure, a clear front panel with LED indicators, and the option of AUTO / MANUAL mode ensure reliable operation in both residential and professional applications.
- The ATS includes an internal generator battery charger, protection against incorrect switching, and fault status indication (FAILURE).
Key Features
-
Automatic generator start during grid power failure
-
Automatic switching back to the grid
-
Power up to 15 kW / current 32 A
-
AUTO / MANUAL modes
-
LED status indication (grid, generator, automatic mode, fault)
-
Internal generator battery charger
-
Safe mechanical interlock against parallel connection
-
Robust metal enclosure
-
Designed for diesel generators
Compatibility
- Diesel generator Hahn & Sohn HDE 18000SA3
Additional parameters
Technical parameters
| Category | Accessories for power generators |
| Warranty | 2 roky |
| Weight | 8 kg |
| Device type | Automatic Transfer Switch (ATS) |
| Compatibility | Hahn & Sohn HDE 18000SA3 diesel generator set |
| Maximum current | 32 A |
| Voltage | 230 / 400 V |
| Frequency | 50 Hz |
| Operating modes | Automatic / Manual |
| Controlling the power generator | Start / Stop |
| Status indication | LED indicator lights |
| Charging the generator battery | Yes (integrated) |
| Construction | Metal cabinet |
| Assembly | Wall-mounted, indoor |
