External valve spring – Hahn & Sohn HDE20SS3-DW
External valve spring – Hahn & Sohn HDE20SS3-DW

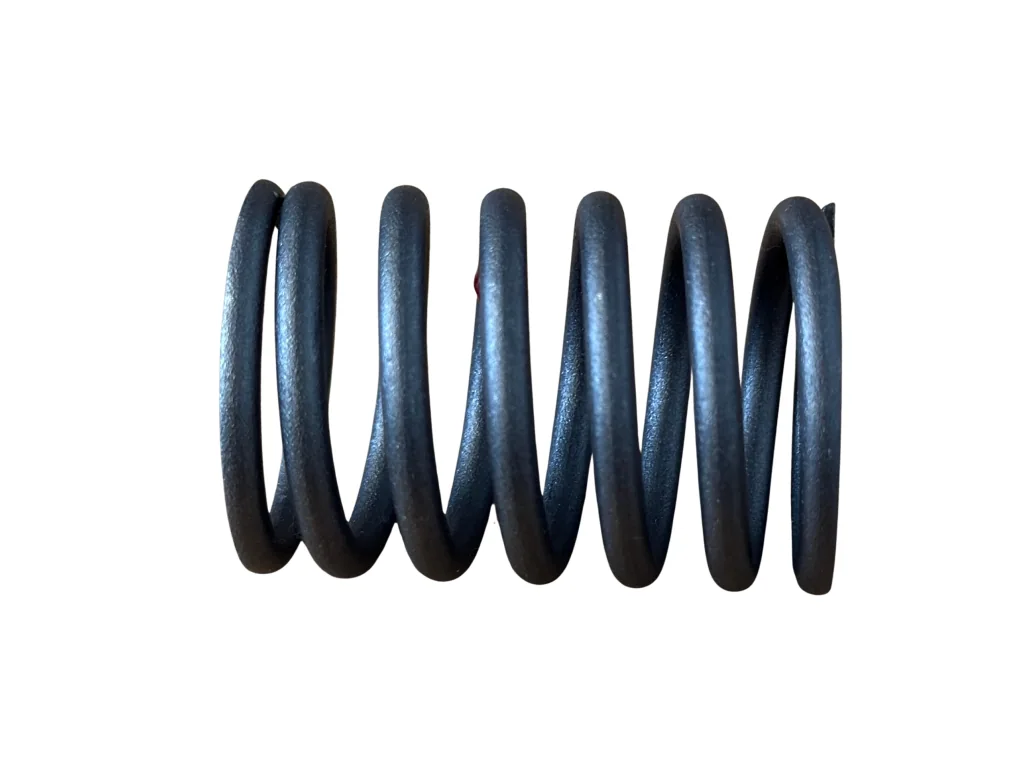

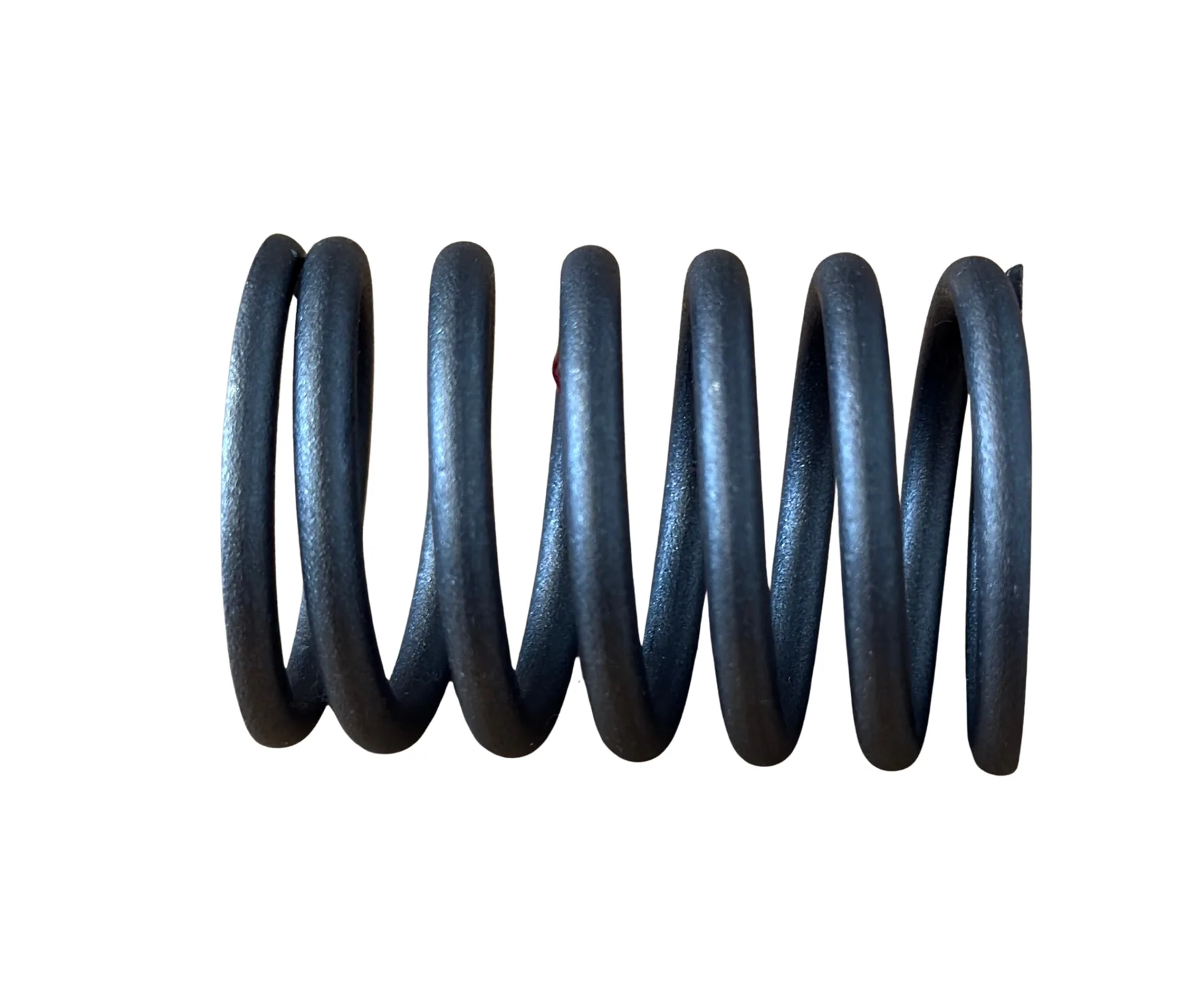

Outer valve spring for the WEICHAI WP2.3D25E200 engine used in the Hahn & Sohn HDE20SS3-DW diesel generator. Ensures reliable valve closing and returns the valve to its resting position after it is opened by the camshaft mechanism
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Outer valve spring for the WEICHAI WP2.3D25E200 engine used in the Hahn & Sohn HDE20SS3-DW diesel generator. Ensures reliable valve closing and returns the valve to its resting position after it is opened by the camshaft mechanism.
The valve spring ensures that the valve closes reliably and on time back onto its seat after being opened by the camshaft — without a functioning spring, the valve would "float" and the engine would lose compression and power, and inextreme cases the valve could collidewiththe piston.
- This engine usesdual springs(outer and inner), which is a common design solution in higher-performance engines — the combination of two springs with different stiffness provides more stable valve operation at high engine speeds and a more even distribution of force than a single large spring. This part is theouter springof thepair.
- The part is designed for the four-cylinder diesel engineWEICHAI WP2.3D25E200(Hahn & Sohn HDE20SS3-DW generator, 20 kW/25kVA).
WHY CUSTOMERSCHOOSE IT
- Exact match for the WEICHAI WP2.3D25E200 engine
- Essential part for a complete valve train overhaul
PRACTICALTIP
When replacing the springs, always replace the outer and inner spring together as a pair at the given position, even if one of them appears visually undamaged — they are designed to work together with the specific stiffnessof both springs, and combining an old and a new spring would disrupt the correct force actingonthe valve.
KEY FEATURES
- Type: outer valve spring (part of a dual spring assembly)
- Material: steel (spring steel)
- Designed for engine: WEICHAI WP2.3D25E200
- Compatible generator: Hahn & Sohn HDE20SS3-DW (20 kW / 25kVA)
USE / INSTALLATION/OPERATION
- Remove the cylinder head and valve train according to the service procedure.
- Using a suitable spring compressor, compress the springs, release the retaining clip, and remove the retainer, outer spring, and inner spring.
- Before installing the new spring, visually check that it is not deformed, cracked, or corroded.
- Install the inner and outer springs together, fit the retainer, and secure them with the retaining clip.
Installation requires a valve spring compressor and experience with valve train servicing.
Additional parameters
Technical parameters
| Category | Other |
| Weight | 0.02 kg |
| Part type | External valve spring |
| Material | Steel (spring steel) |
| Designed for the engine | WEICHAI WP2.3D25E200 |
| Compatible machine | Hahn & Sohn HDE20SS3-DW (20 kW / 25 kVA) |
