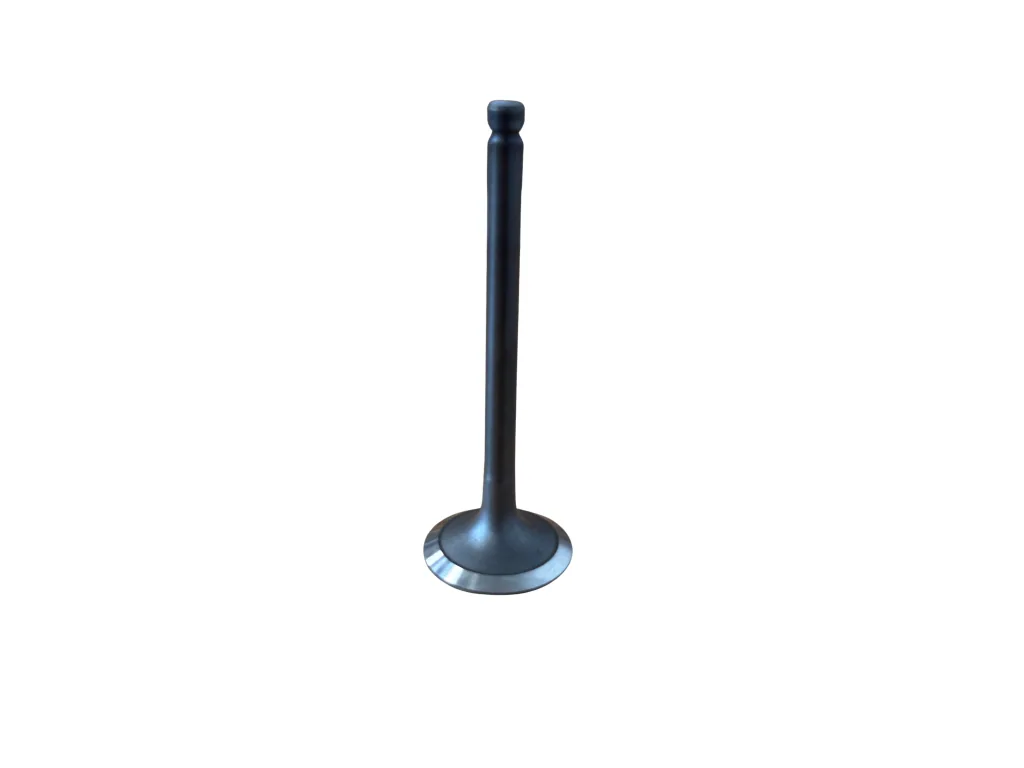

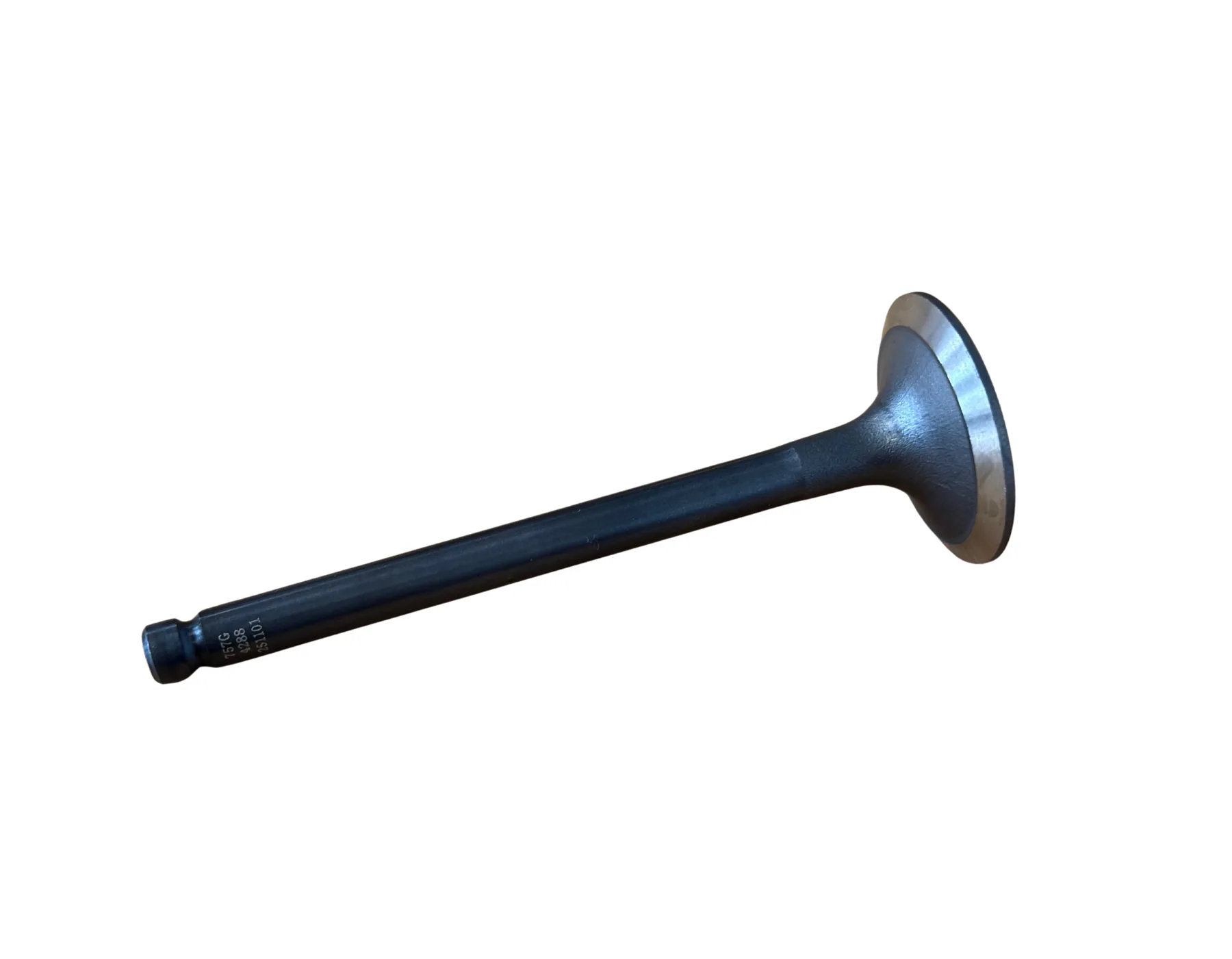

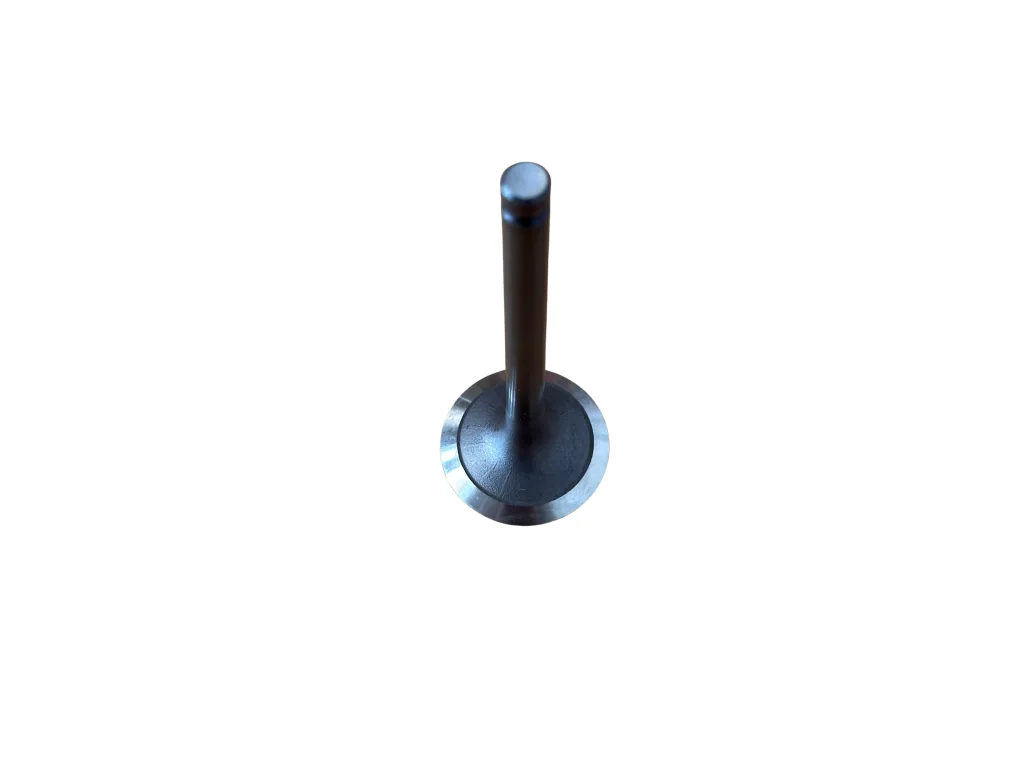

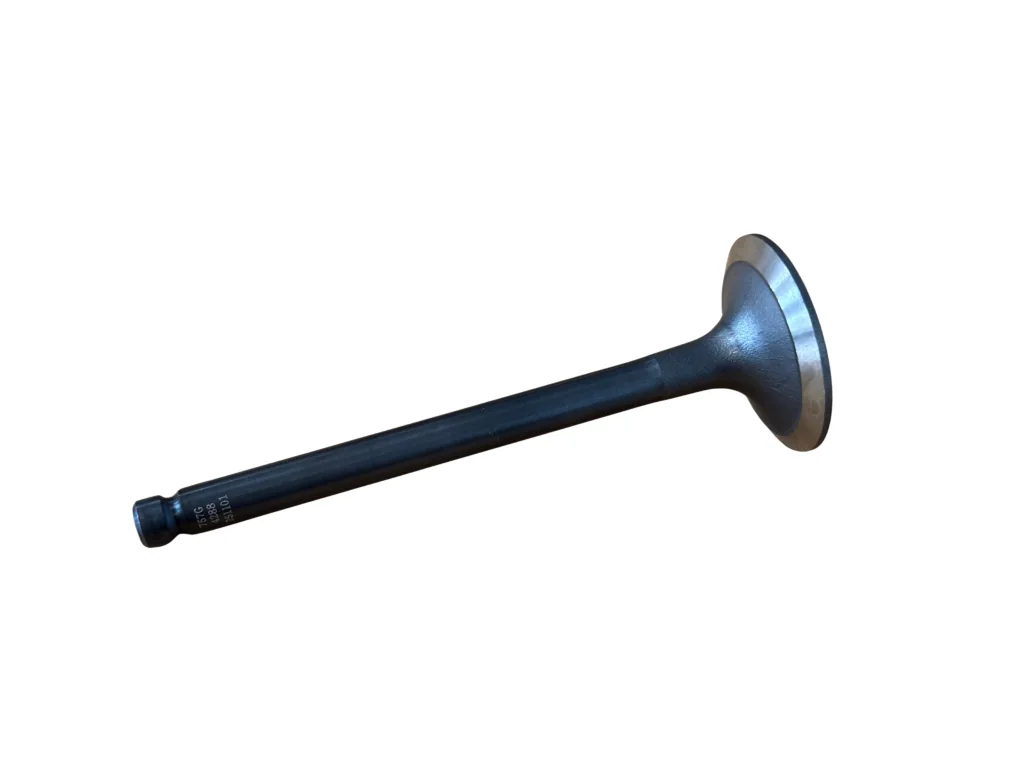

Exhaust valve – Hahn & Sohn HDE20SS3-DW
Exhaust valve – Hahn & Sohn HDE20SS3-DW
Exhaust valve for the WEICHAI WP2.3D25E200 engine used in the Hahn & Sohn HDE20SS3-DW diesel generator. Controls the discharge of exhaust gases from the combustion chamber into the exhaust manifold
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Exhaust valve for the WEICHAI WP2.3D25E200 engine used in the Hahn & Sohn HDE20SS3-DW diesel generator. Controls the discharge of exhaust gases from the combustion chamber into the exhaust manifold.
The exhaust valve is one of the most thermally and mechanically stressed components in the engine — during operation, it repeatedly opens and closes the path for exhaust gases from the combustion chamber and must reliably withstand high temperatures and pressureshocks when seating against the valve seat. A worn or damaged exhaust valve can cause loss of compression, uneven engine operation, or leakage ofexhaust gases.
- The valve is designed for the four-cylinder diesel engineWEICHAI WP2.3D25E200(Hahn & Sohn HDE20SS3-DW generator, 20 kW / 25 kVA). The stem has a groove for the retaining clip, which secures thevalve springretainer.
- During a complete cylinder head overhaul, the exhaust valves are usually replaced as a complete set for all cylinders at the same time, even if wear is uneven — this ensures uniform seating and smooth engine operationafterrepair.
WHY CUSTOMERSCHOOSE IT
- Exact match for the WEICHAI WP2.3D25E200 engine
- Essential part for a complete cylinder head overhaul
PRACTICALTIP
When replacing exhaust valves, always check the condition of the valve seats in the cylinder head as well — if the seats are burnt or uneven, even a new valve will not seal reliably and the seats must first be repaired(regroundorreplaced).
KEYFEATURES
- Type: exhaust valve (poppet valve)
- Groove on the stem for the valve spring retaining clip
- Designed for engine: WEICHAI WP2.3D25E200
- Compatible generator: Hahn & Sohn HDE20SS3-DW (20 kW / 25kVA)
USE/INSTALLATION/OPERATION
- Remove the cylinder head and valve train according to the service procedure.
- Compress the valve spring using a suitable spring compressor, remove the retaining clip, and remove the old valve.
- Check the condition of the valve guide and valve seat in the cylinder head.
- Insert the new valve into the guide, install the spring with the retainer, and secure it with the retaining clip.
- After reinstalling the cylinder head, adjust the valve clearances to the specified values.
Installation requires experience with valve train servicing, suitable tools (spring compressor), and valve clearance measurement — we do not recommend replacing the part yourself without specialistknowledge.
Additional parameters
Technical parameters
| Category | Other |
| Weight | 0.1 kg |
| Part type | Exhaust valve |
| Designed for the engine | WEICHAI WP2.3D25E200 |
| Compatible machine | Hahn & Sohn HDE20SS3-DW (20 kW / 25 kVA) |
