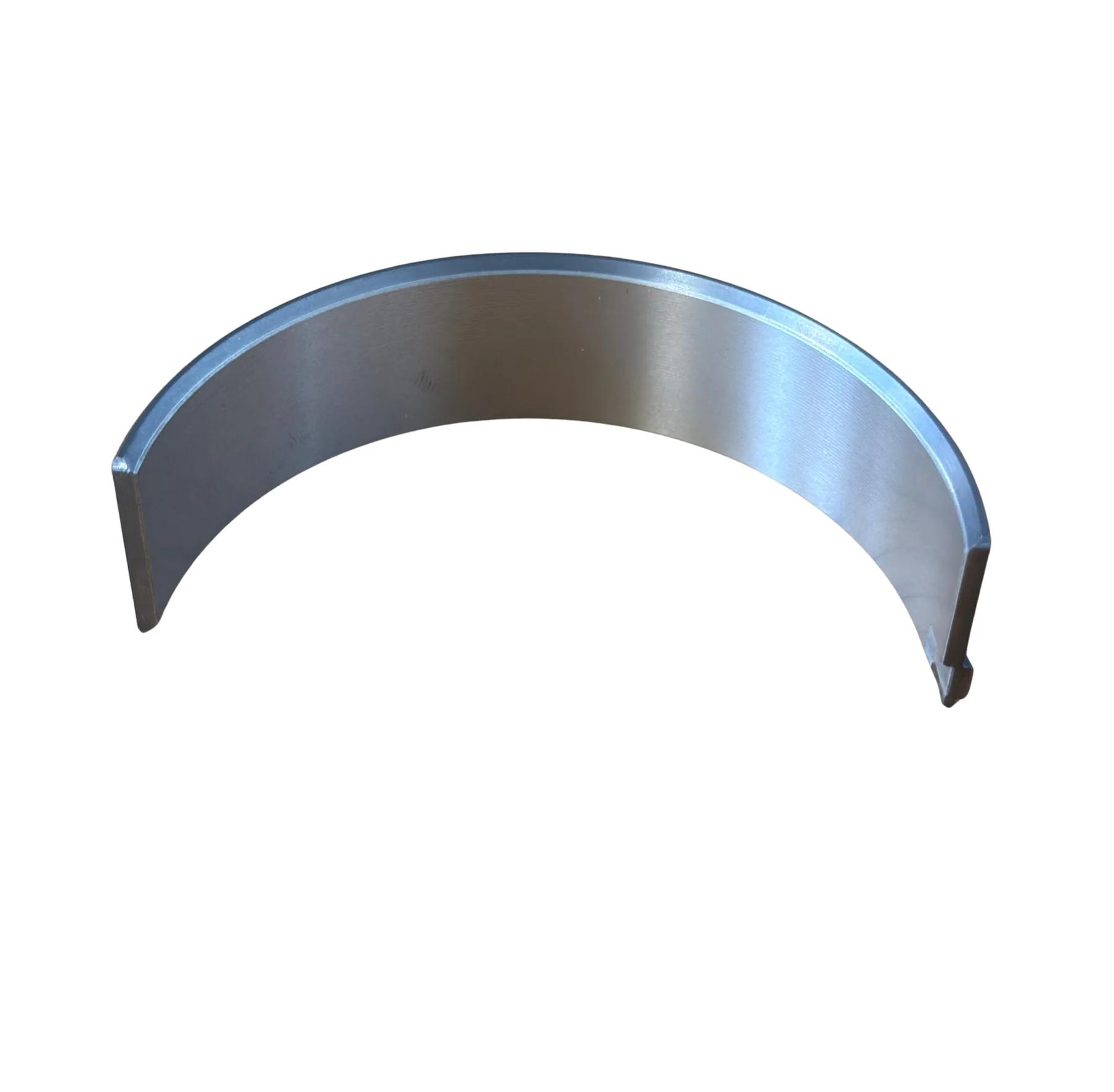

Crankshaft bearing (lower) – Hahn & Sohn HDE20SS3-DW
Crankshaft bearing (lower) – Hahn & Sohn HDE20SS3-DW

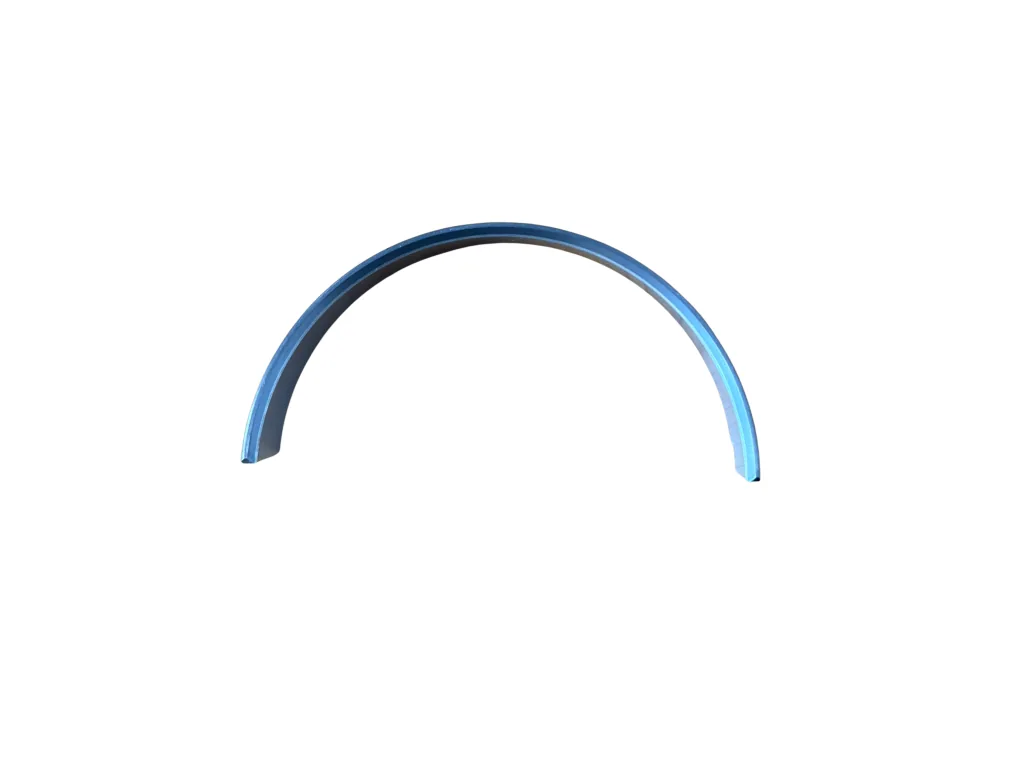

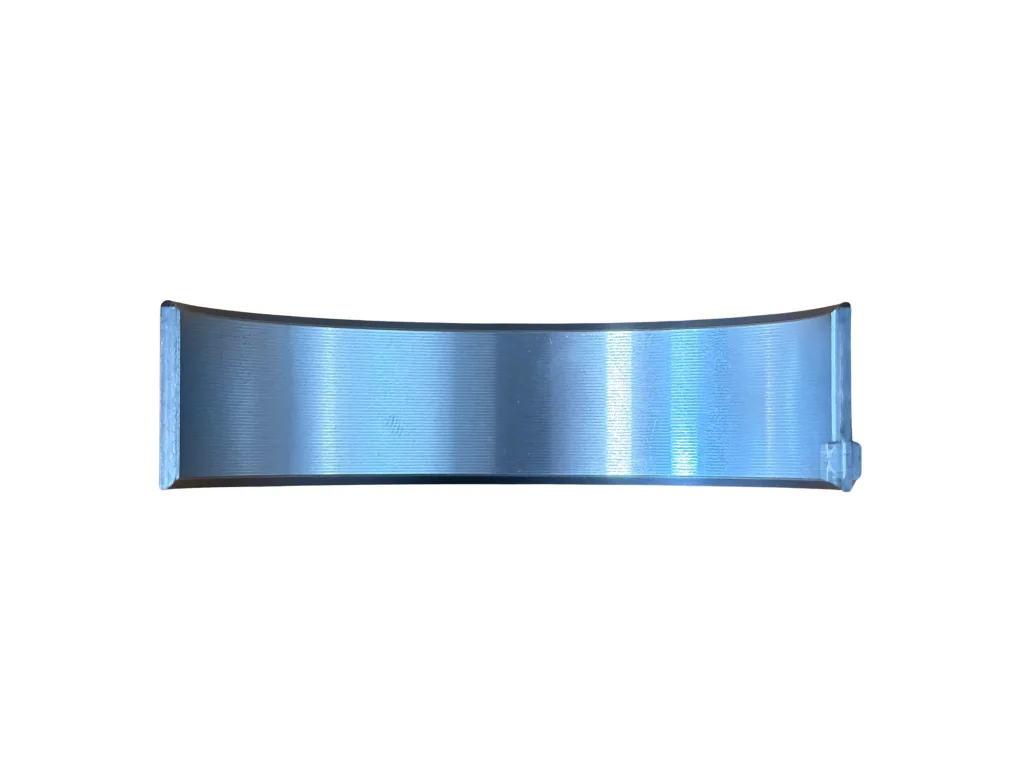

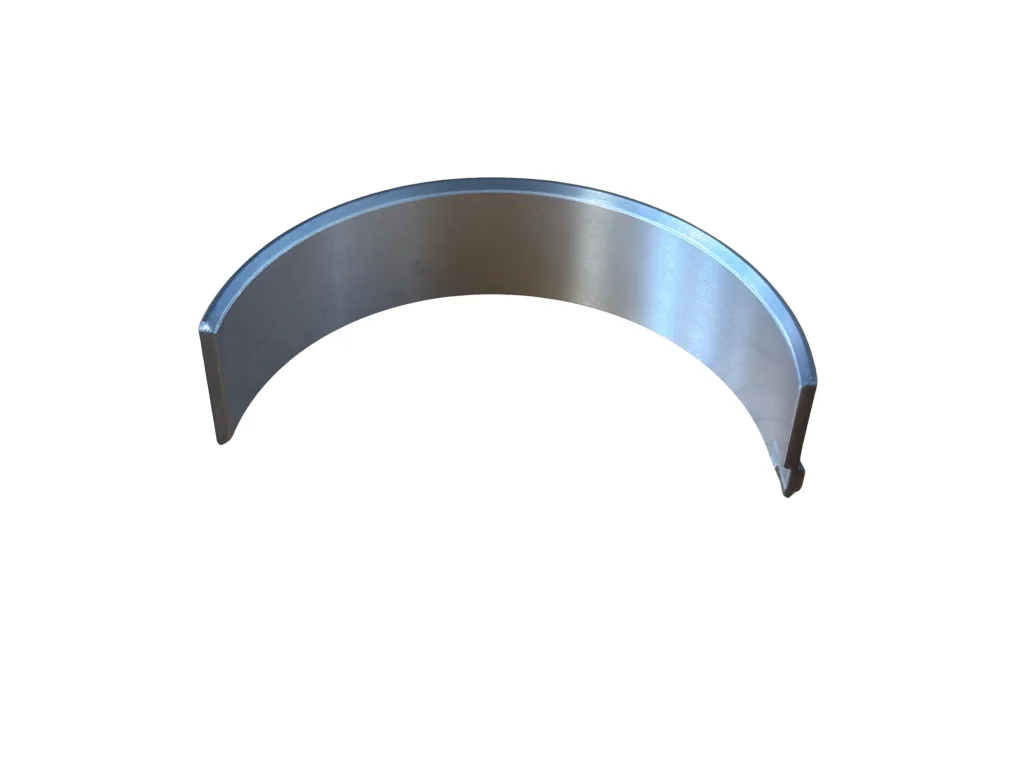

Lower half of the crankshaft main bearing shell for the WEICHAI WP2.3D25E200 engine used in the Hahn & Sohn HDE20SS3-DW diesel generator. It forms a pair with the upper shell and together they create the complete bearing surface for one crankshaft main bearing
+49 163 02 44 737 · info@hahn-sohn.eu
Mon–Fri 8:00–16:00
The right model.
With expert advice.
Do you have questions about this product? We will respond within 24 hours. We will help you choose the necessary accessories.
+49 163 02 44 737info@hahn-sohn.euMon–Fri 8:00–16:00 · Professional service
Lower half of thecrankshaft main bearing shellfor the WEICHAI WP2.3D25E200 engine used in theHahn & Sohn HDE20SS3-DW diesel generator. It forms a pair with the upper shell and together they create the complete bearing surface for one crankshaft mainbearing.
The lower main bearing shell is installed in the bearing cap (unlike the upper shell, which sits directly in the engine block) and together with the upper shell forms a complete circular bearing surface for the crankshaft journal. Unlike the upper half, itdoes not have an oil hole— oil is supplied to the bearing through an oil passage from the upper side, while the lower shell primarily serves to distribute the load evenly and maintain thelubricatingfilm.
- The part is designed for the four-cylinder diesel engineWEICHAI WP2.3D25E200(Hahn & Sohn HDE20SS3-DW generator, 20 kW / 25 kVA) and, like the upper shell, features alocating tab, which ensures precise positioning in the bearing cap andpreventsrotation.
- When replacing the main bearings, the lower and upper shells are always replaced together as a pair—neverindividually.
WHYCUSTOMERSCHOOSEIT
- Exact match for the WEICHAI WP2.3D25E200 engine
- Matching part for the upper shell— together they form a complete pair for one main bearing
- Essential part for a complete engineoverhaul
PRACTICALTIP
Always replace the upper and lower shells together as a pair, even if the wear is uneven — combining an old and a new shell in one bearing results in uneven oil clearance and faster wear of thenewpart.
KEYFEATURES
- Type: lower crankshaft main bearing shell
- Design: multi-layer construction (steel backing + bearing alloy)
- Without oil hole (unlike the upper shell)
- Locating tab to prevent rotation
- Designed for engine: WEICHAI WP2.3D25E200
- Compatible generator: Hahn & Sohn HDE20SS3-DW (20kW/25kVA)
USE / INSTALLATION/OPERATION
- The removal/installation procedure is identical to that for the upper shell (see previous part) — the lower shell is installed in the bearing cap.
- The locating tab must engage in the groove in the cap.
- Reinstall the cap with the new shell and tighten it to the specified torque.
- After installation, check that the crankshaft rotates freely before refilling the oil and starting the engine.
Installation requires experience with combustion engine servicing — we do not recommend replacing the part yourself without specialistknowledge.
Additional parameters
Technical parameters
| Category | Other |
| Weight | 0.05 kg |
| Part type | Lower shell of the crankshaft main bearing |
| Material | Laminated construction (steel + bearing alloy) |
| Lubrication hole | No |
| Designed for the engine | WEICHAI WP2.3D25E200 |
| Compatible machine | Hahn & Sohn HDE20SS3-DW (20 kW / 25 kVA) |
